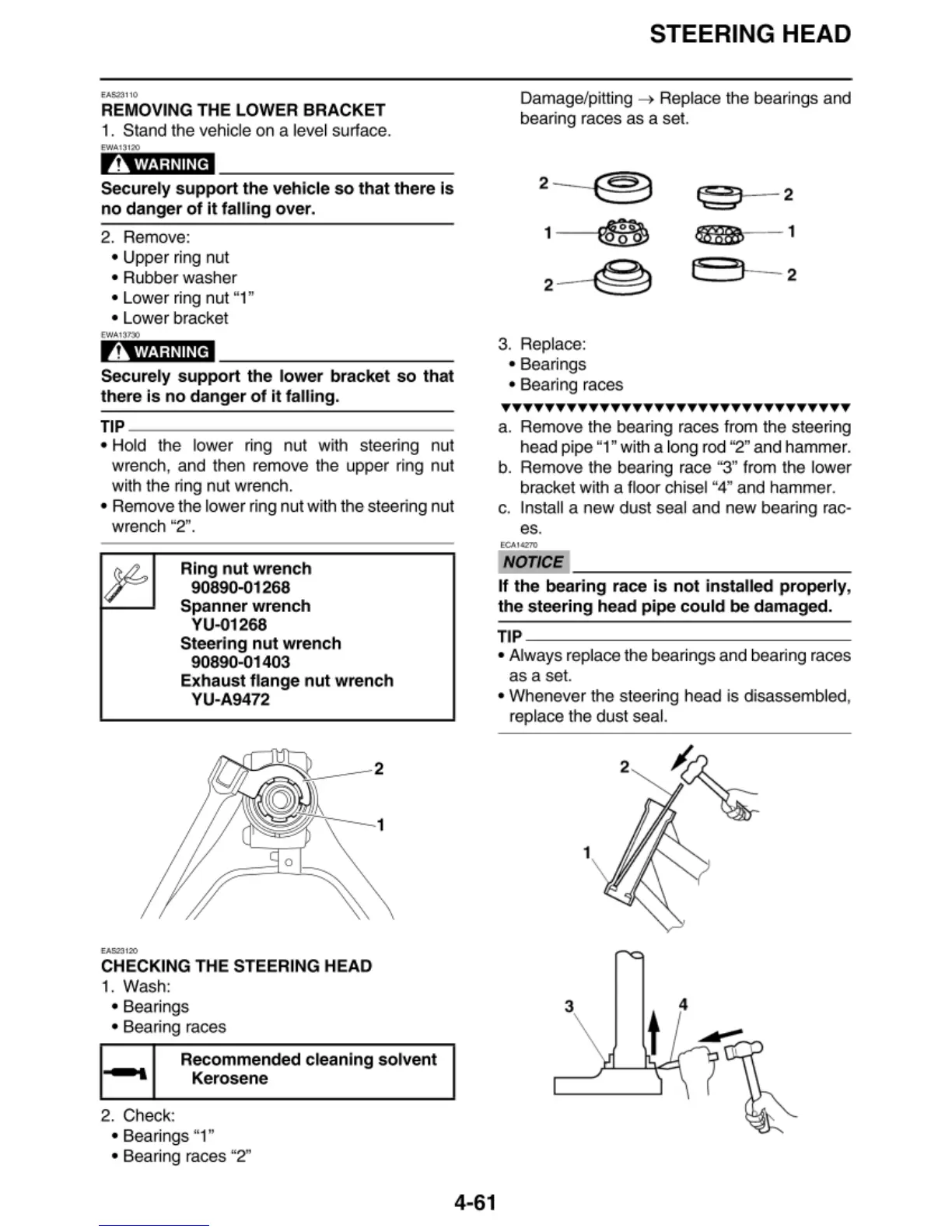

REMOVING THE LOW ER BRACKET
1. Stand the vehicle on a level surface.
EWA t3 1 20
AwARNING
Securely support the vehicle so that t here is
no danger of it falling over.
2. Remove:
• Upper
ri ng nut
• R
ub ber washer
• Lower
ri ng nut "1"
• Lower bracket
EW Al 3 1'))
AwARNING
Securely support the lower bracket so that
there is no danger of it falling.
TIP ~~~~~~~~~~~~~~
• Hold the lower ri ng nut with steering nut
wrench, and then remove the upper ring nut
with the
ri ng nut wrench.
• Remove the lower ring nut with the
st eering nut
wrench
"2".
Ring nut wrench
90890-01268
Spanner wr e nch
YU -01268
St eering nut wrench
90890-01403
Ex haust flange nut wrench
YU-A9472
CHECKING TH E STEERING HEAD
1. Wash:
•
Bear ings
• Bearing races
•
2. Ch ec k:
Recommended clean i ng solvent
Kerosene
• Be arin gs "1"
•
Be aring r aces "2"
4-61
STEERING HEAD
Damage/pitti ng ~ R ep la ce the b ea ri ngs and
bearing ra ces as a set.
2 -
-@)
1 ~
2 -
3. Replace:
• Beari
ngs
®
tg;J
2
®SS!>
1
E
j
- 2
• Bear i ng races
TTYTTTYYTTTYTTTYYTTTYTTTYTTTYYTT
a. Remove the be aring races from the steering
he ad p ipe "1" wit h a long rod "2" and ha mmer.
b. Remove the beari
ng race "3" from the lower
bracket with a floor chisel
"4" and hammer.
c. Insta
ll a n ew dust seal and new bearing rac-
es.
E CA. 1 4:270
NOTICE
If the bearing race is not installed properly ,
the steering head pipe could be damaged.
TIP ~~~~~~~~~~~~~~~
• Always replace the bearings and b ear i ng races
as a set.
• Whenever t
he steering head is disassembled,
repl
ace the dust sea l.
1
3
