Yamaha FZ09E - Steering Head

,. .,,..,

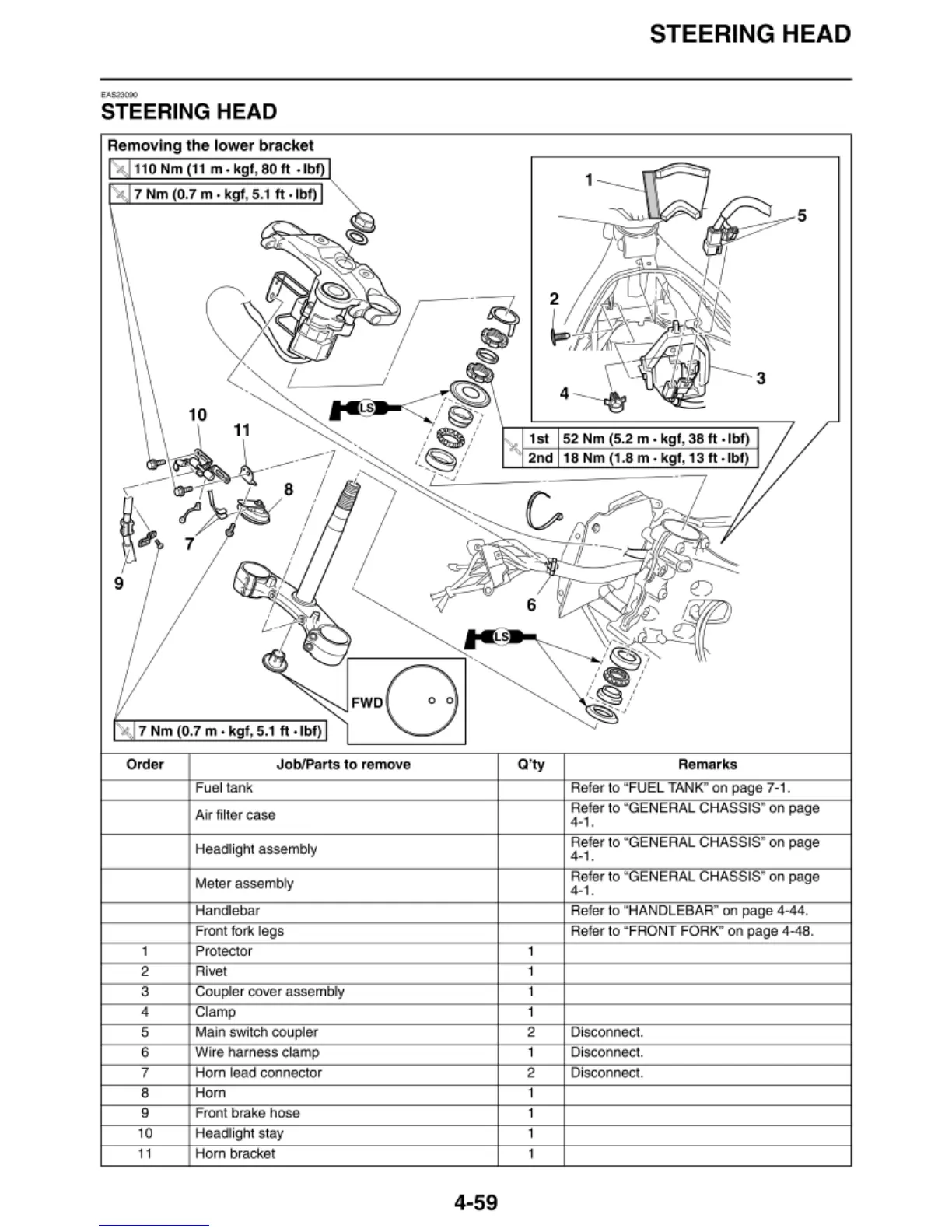

STEERING HEAD
Removing the lower bracket
110Nm(11 m·kgf , 80ft ·lbf)
~ 7 Nm (0.7 m • kgf , 5.1 ft· lbf}
10
g
~
7 Nm (0.7 m • kgf , 5.1 ft· lbf)
FWD
Order Job/Parts to remove
Fuel tank
Air filt
er case
He adlight assembly
Meter assembly
Ha
nd lebar
Front fork legs
1
Protector
2
Rivet
3 Coupler cover assembly
4 Clamp
5 Main switch co upler
6 Wire harness clamp
7 Horn lead connector
8
Horn
9
Front brake hose
10 Headlight stay
11 Horn bracket
0 0
4-59
STEERING HEAD
1 --~ 1
1st 52 Nm (5.2 m • kgf , 38 ft · lbf)
2nd 18 Nm (1.8 m • kgf, 13 ft · lbf)
Q' ty Remarks
Re fer to "FUEL TANK " on page 7 -1 .
Refer to "GENERAL CHASSIS" on page
4-1.
Refer to "GENERAL CHASSIS" on page
4-1.
Refer lo "GENERAL CHASSIS" on page
4-1.
Refer to "HANDLEBAR" on page 4-44.
Refer to "FRONT FORK" on page 4-48.
1
1
1
1
2 Disconnect.
1 Disconnect.
2 Disconnect.
1
1
1
1
