THERMOSTAT
,..,...,
THERMOSTAT

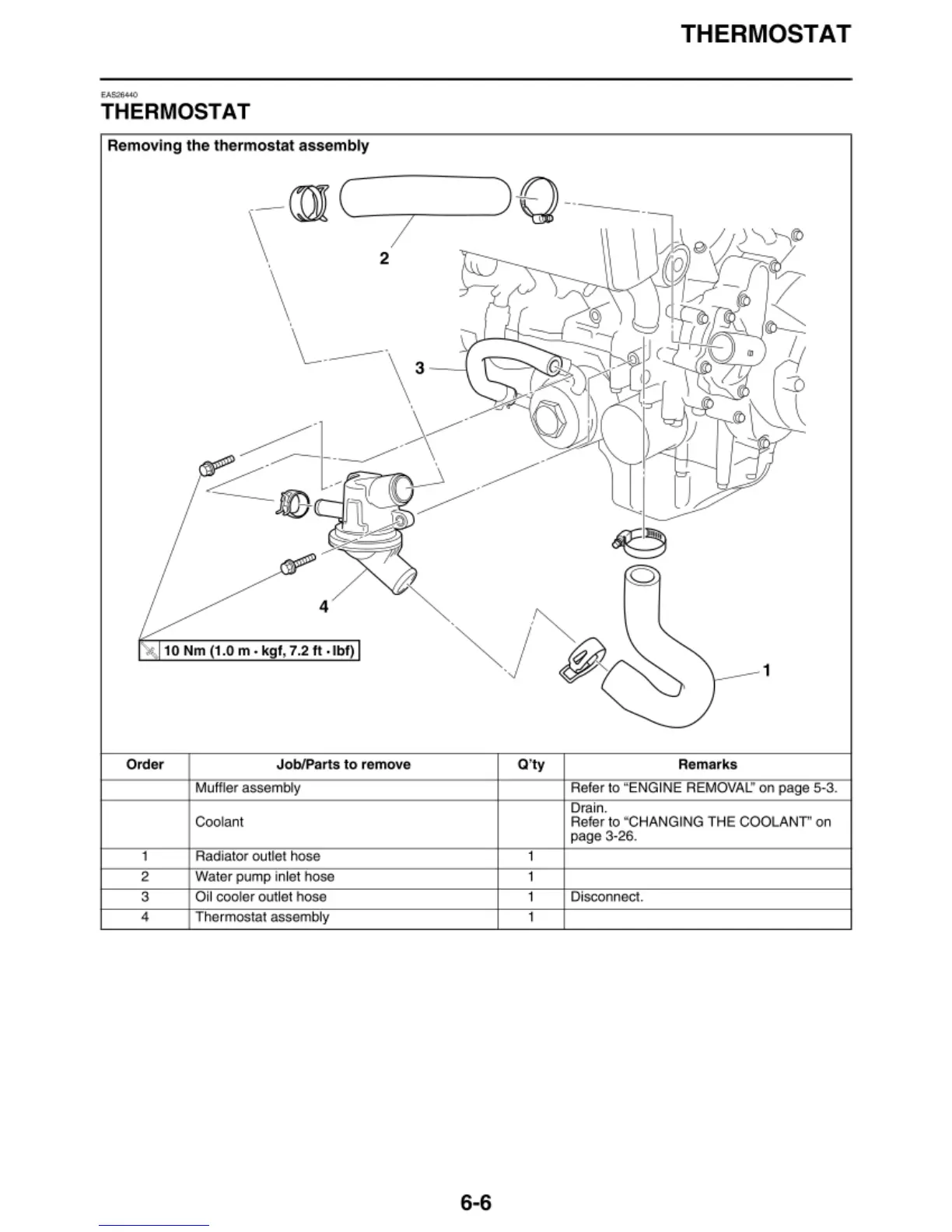

Removing t he thermostat assembly
4
10 Nm (1.0 m . kgf, 7.2 ft -lbf)
Order Job/Parts to re mov e Q' ty Re marks
Muffler assembly Re fer to " EN GI NE REMOVAL" on page 5·3.
Drain.
Coolant Refer to "CHANGI
NG T HE COOLAN r' on
page 3-26.
1 Radiat or outlet h ose 1
2 Water pump inlet hose 1
3
Oil cooler
ou tlet hose 1 Disconnect.
4 Thermostat assembly 1
6-6
