SWINGARM
EASZ)S30

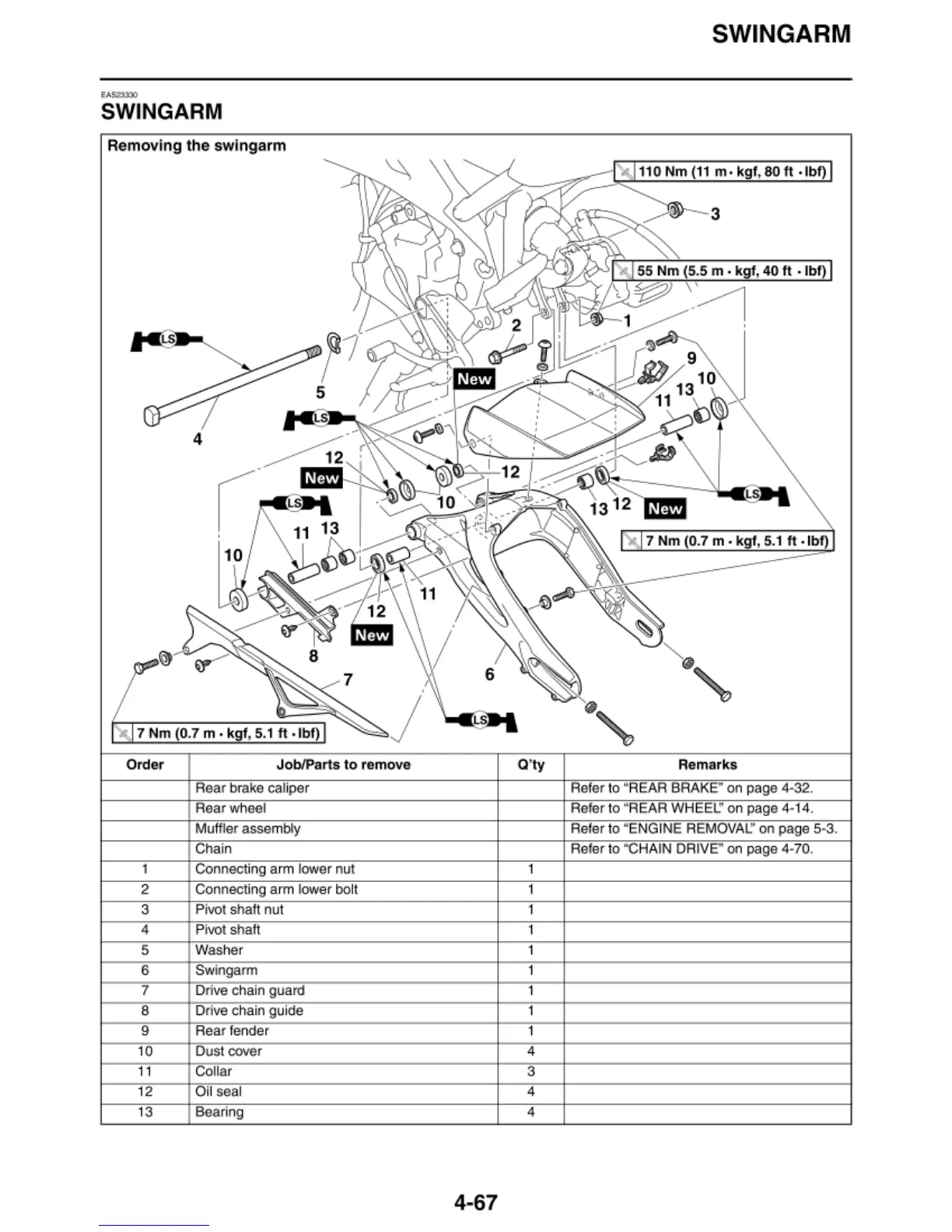

SWINGARM
Removing t he sw ingarm
110 Nm ( 11 m. kgf , 80 ft -lbf)
3
-
4
7 Nm (0.7 m • k gf , 5.1 ft • l bl)
Order Job/Parts to remove Q' ty Remarks
Rear brake caliper Re fer to "RE.AR BRAKE" on page 4·32.
Rear wheel Refer to "REAR WHEE
L:' on page 4·14.
Muffler assembly
Re fer to "E NGINE REMOVA L:' on page 5·3.
Chain Refer to "CHAIN DRIVE" on page 4·70.
,
Connecting arm lower nut
,
2
Connecting arm lower bo lt
1
3
Pivot shaft nut
1
4 Pivot shaft
1
5
Washer
1
6
Swin ga rm
1
7
Drive chain guard
1
8
Drive chain guide
1
9
Rear fender
1
10 Dust cover 4
11 Co llar 3
12 Oil seal 4
13 Bea ri ng 4
4-67
