Yamaha FZ09E - Checking the Balancer Shaft

CRANKSHAFT AND BALANCER SHAFT
[Al J, J . J , J ,
~i :-.'
'#:=:-\ ( ~
EAS26 130

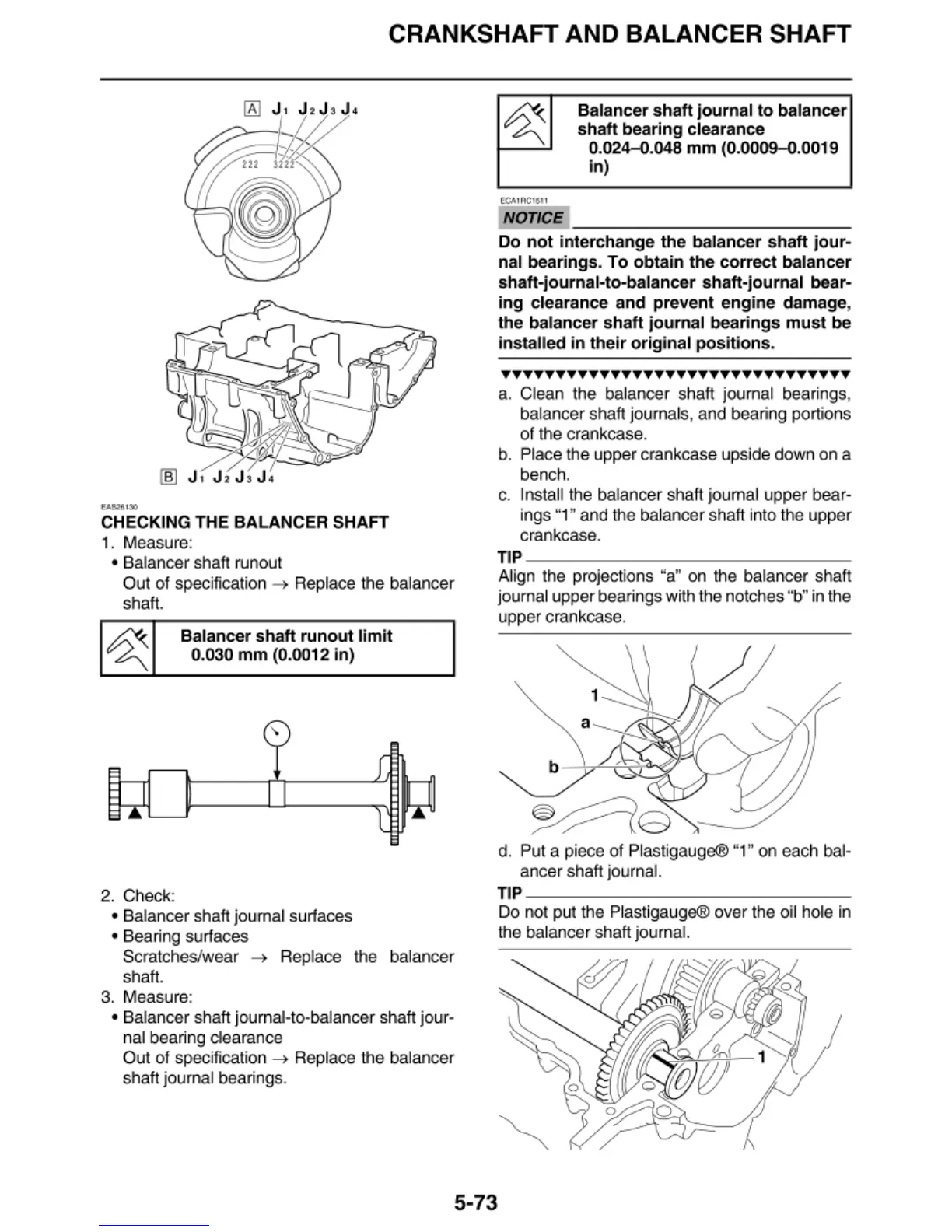

CHECKING THE BALANCER SHAFT
1. Measu re:
• Balancer shaft ru nout
Out of specification
-) Replace t he balancer
shaft.
2. Chec
k:
Balancer shaft runout limit
0.030 mm (0.0012 in)
• Balancer shaft journal surfaces
• Bearing surfaces
Scratches/wear
-) Re place the balancer
shaft.
3. M
ea su re:
• Balanc er shaft journal-t o- balancer shaft jour-
nal b
ea ri ng clearance
Out of spe
ci fication -) Replace t he balancer
shaft jou
rna l bearings.
ECA.1RC1 $ 11
NOTICE
Balancer shaft journal to balancer
shaft bearing clearance
0.024-0.048
mm (0.0009-0.0019
in)
Do
not interchange the balancer shaft jour-
nal bearings . To obtain the correct balancer
shaft-journal-to-balancer shaft-journal bear-
ing clearance and prevent engine damage,
the balancer shaft journal bearings must be
installed in their original positions .
TTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTT
a. Clean the balancer shaft journal bearings,
balancer shaft journals, and bearing portions
of the crankcase.
b. Place t he upper crankcase upside down on a
bench.
c. Insta
ll the ba lancer shaft jo u rna l upper bea r-
ings "1" an d the balancer shaft into the up per
cr ankcase.
TIP ~~~~~~~~~~~~~~
Align the p ro jections "a" on the balancer shaft
journal upper bea
rin gs with the notches "b" in the
upper crankcase.
1
~8
d. Pu t a piece of Plastigauge® "1" on each bal-
ancer shaft journal.
TIP ~~~~~~~~~~~~~~
Do not put the Plastigauge® over the oil ho le in
the
ba lancer shaft jou rna l.
5-73
