ENGINE REMOVAL

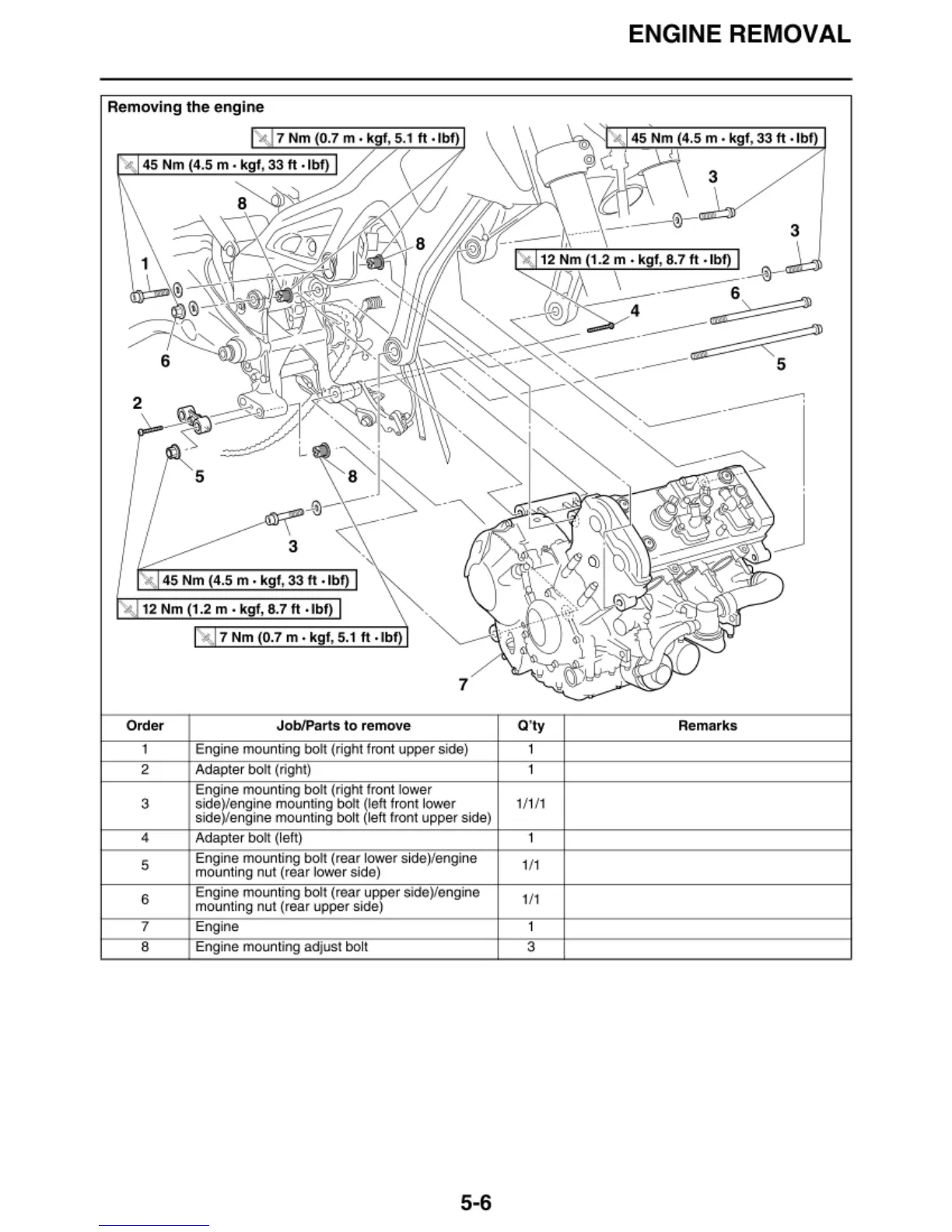

Removing the engine
~ 7 Nm (0.7 m • kgf , 5.1 ft · l bf)
~ 45 Nm (4.5 m. kgf , 33 ft· lbf )
3
8
... ----- @- aui;:.'il(
... ...
3
45 Nm (4.5 m · kgf , 33 ft· lbf )
1.2 m . kgf, 8.7
ft · l bf)
7 Nm (0.7 m. kgf , 5.1 ft · l bf)
Order Job/Parts to remove Q'ty Remarks
1 Engine mounting bott (right front up pe r side) 1
2
Adapter bo lt (right) 1
3
Engine mounting bo lt (rig ht front lower
side)/engine mounti
ng bott (left front l ow er
si de )/ engine mounting bolt (le tt front upper side)
1/ 1 /1
4 Adapter bo tt (left)
1
5
Engine mounting bo lt (r ear lower side)/engine
moun
tin g nut (rear lower side)
1/ 1
6
Engine mounting bo lt (rear upper side)/engine
moun
tin g nut (rear u pp er side)
1/ 1
7 Engine 1
8 Engine mounting adjust bolt 3
