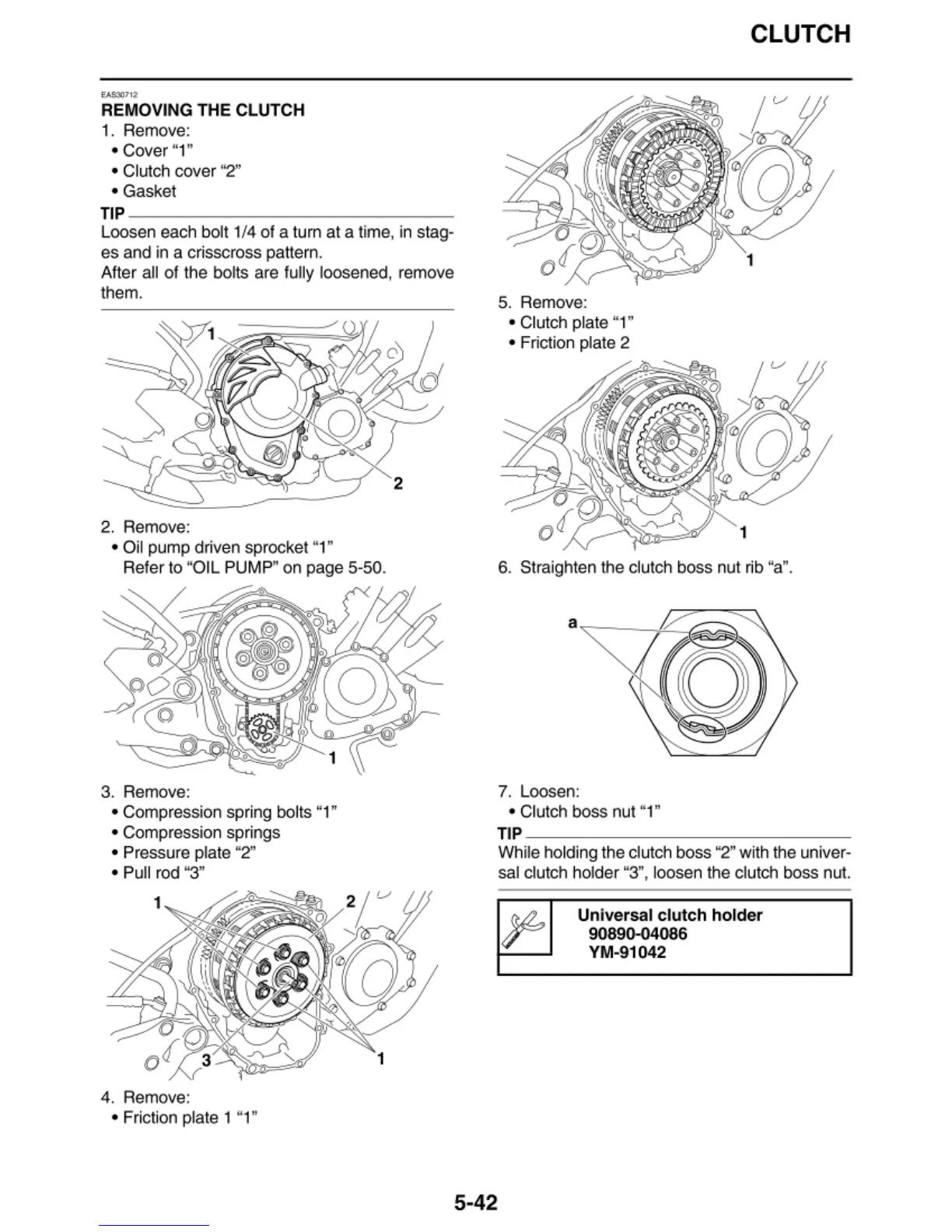

EA$30112
REMOVIN
G
THE
C
LUT
CH
1. Remove:
• Cover "1"
• Clutch cover "2"
• Gasket
TIP
~~~~~~~~~~~~~~
Loosen each bolt 1/4
of
a turn at a time, in stag-
es
and in a
cr
isscross pattern.
After all of the bolts are fully loosened, remove
them.
2. Remove:
• O
il
pump dri
ve
n sprocket "1"
Re
f
er
to
"OIL PUMP"
on
page 5-50.
3. Remove:
• Compression spring bolts "1"
• Compression springs
• Pressu
re
pla
te
"2"
•
Pu
ll rod "3"
4. Remove:
•
Fr
iction plate 1 "1"
CLUTCH
5.
Remove:
• Clutch plate "1"
• Friction plate 2
6.
Straighten t
he
clu
tc
h boss nut rib "a".
7.
Loosen:
• Clutch boss nut "1"
TI
P
~~~~~~~~~~~~~~
While hold
in
g the clutch boss "2" with the univer-
sa
l clutch hol
de
r "3", loosen the clutch boss nut.
5-42
Uni
v
er
sal cl
ut
ch
ho
l
der
90890-04
08
6
YM-91042
