Yamaha FZ09E - Installing the Swingarm

• Collars "3"
Damage/scratches -> Re place.
• Bearings "4"
Damage/pitting 4 Replace.
4 2
2 3 \ ~
\b ()
''""'""

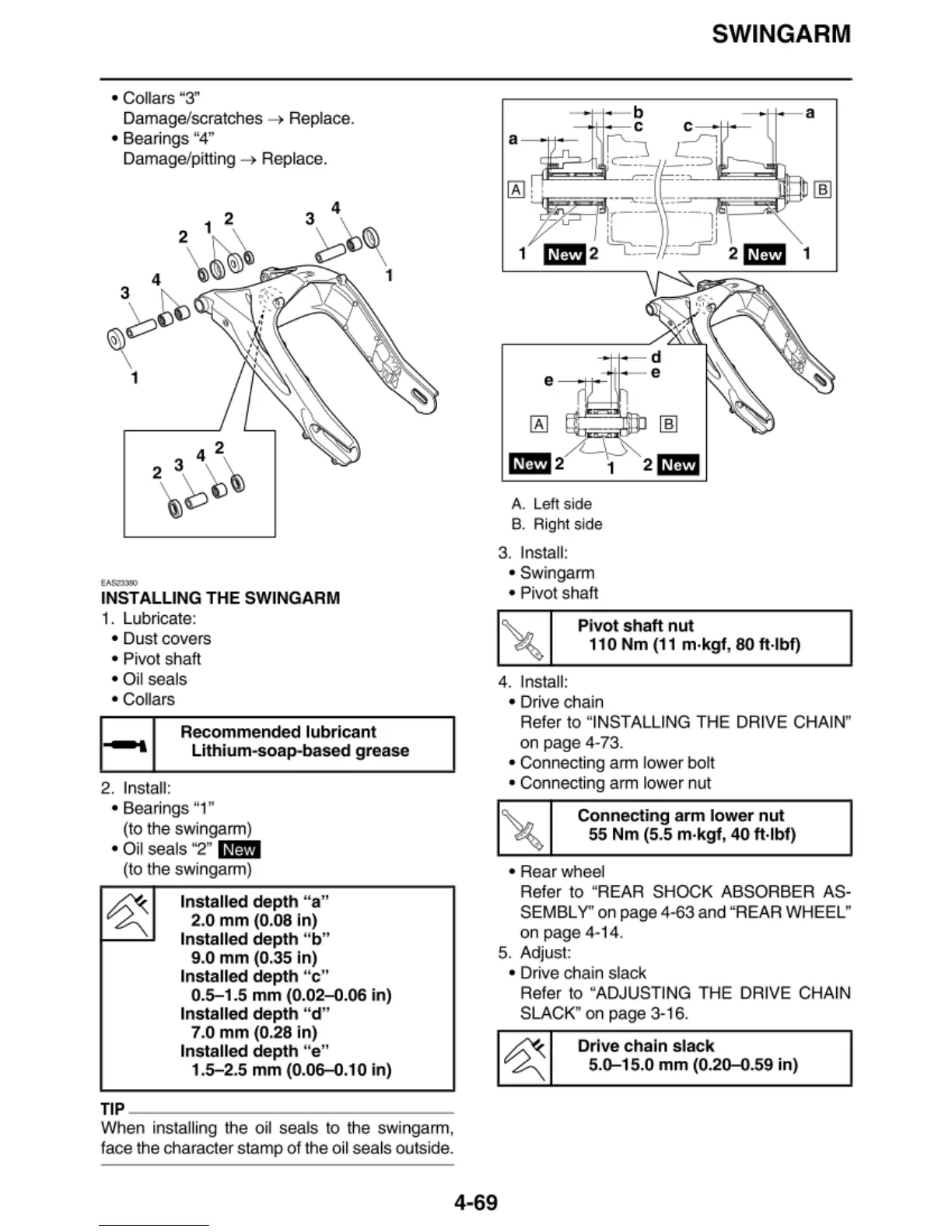

INSTALLING THE SWINGARM
1. Lubricate:
• Dust covers
• Pivot shaft
• O il seals
• Collars
•
2. Install:
Recommended lubricant
Lithium -soap-based grease
• Bear
in gs "1"
(to t he sw in garm)
• O il sea ls " 2'
1
l@t@i
(to t he sw in garm)
Installed depth "a"
2.0 mm (0.08 in )
Installed depth "b"
9.0 mm (0.35 in )
Installed depth "c"
0.5-1.5 mm (0.02-0.06 in)
Installed depth "d"
7.0 mm (0.28 in )
Installed depth "e"
1. 5-2 .5 mm (0 .06-0 .1 O in)
TIP ~~~~~~~~~~~~~~
When insta lli ng t he oil seals to the swingarm,
face the character stamp of the o il seals ou ts i de .
SWINGARM
e-.....=- - e
fl
A. Left side
B. Right side
3. Insta ll :
• Swingarm
• Pivot shaft
Pivot shaft nut
11 O Nm (11 m-kgf, 80 ft -I bf)
4. Insta ll :
• Drive chain
Re fer to "INSTALLING THE DRIVE CHAIN"
on page 4-73.
• Connecting a rm lower bolt
• Connecting a rm lower nut
Connecting
arm lower nut
55 Nm (5.5 m-kgf, 40 ft-lbf)
• Rea r wheel
Re fer to "REAR SH OCK ABSORBER AS-
SEMBLY'' on page
4- 63 and "REAR WHEEL"
on page 4- 14 .
5. Ad ju st:
• Drive chain slack
Re fer to "ADJUSTING THE DRIVE CH AI N
SLACK" on page 3-16.
Drive chain slack
5. 0- 15.0 mm (0.20--0.59 in )
