CHAIN DRIVE
,. ......,
CHAIN DRIVE

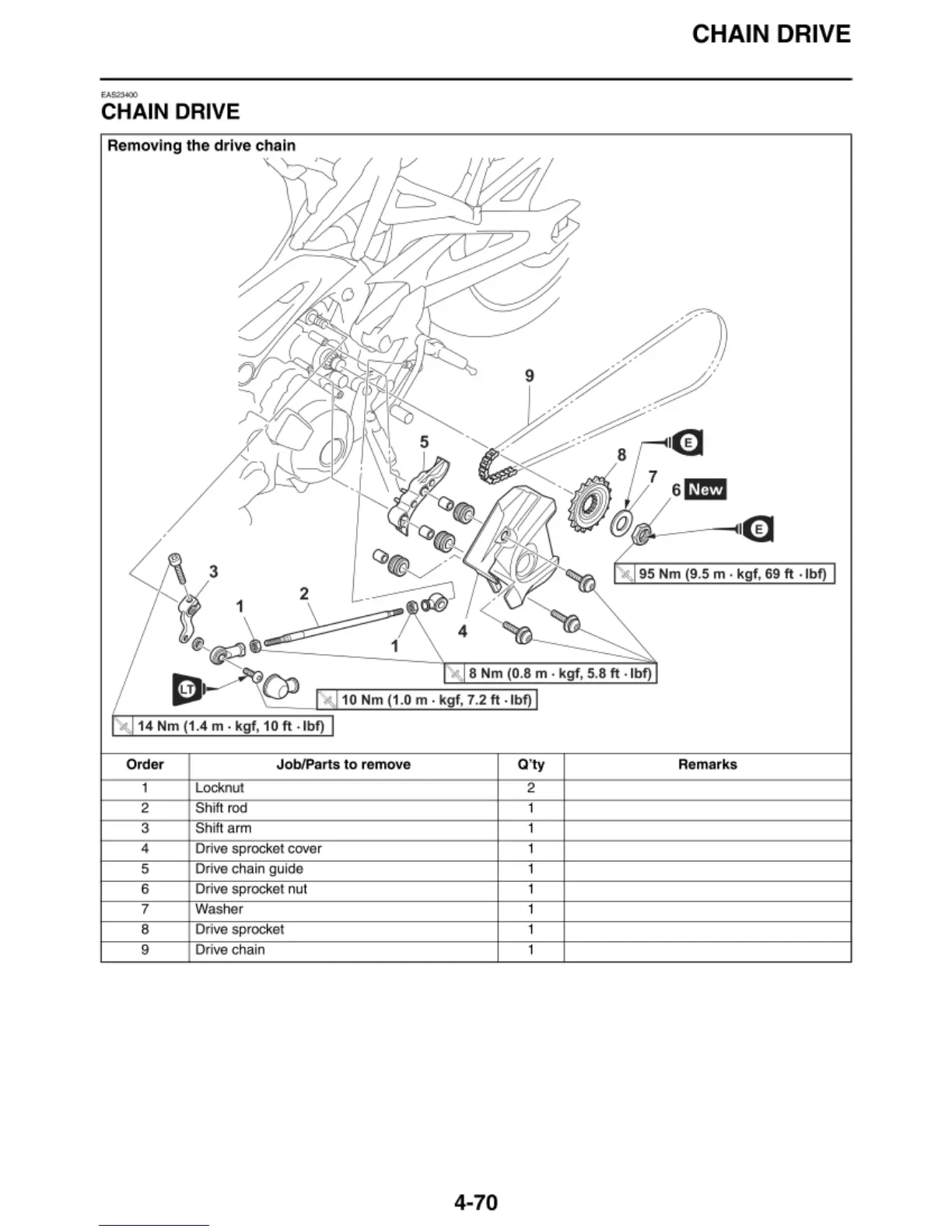

Removing the drive chain
~ 14 Nm (1.4 m · kgf , 10 ft· lbf)
Order Job/Parts to remove Q' ty Remarks
1 Locknut 2
2 Shift rod 1
3 Shift arm 1
4
Drive sp rocket cover 1
5
Drive chain guide 1
6
Drive sp rocket nut 1
7
Washer 1
8
Drive sp rocket 1
9
Drive chain
,
