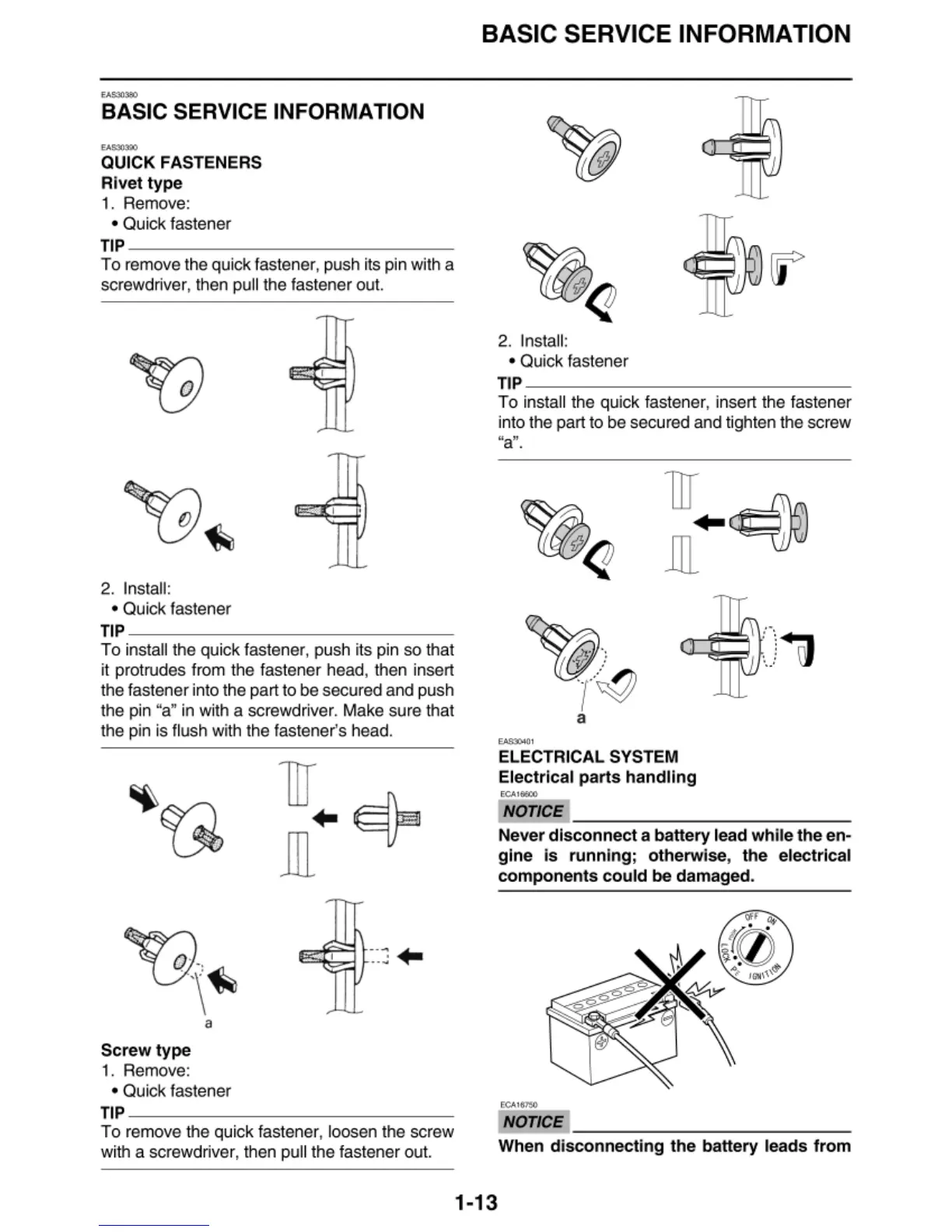

BASIC SERVICE INFORMATION
EA$303510
QUICK FASTENERS
Rivet
type
1. Remove:
• Quick fastener
TIP ---------------
To remove the quick fasten er, push i ts pin with a
screwdriver, then pu
ll the fastener out.
2. Install:
• Quick fastener
TIP ---------------
To install the quick fasten er, push its pin so that
it protrud es f rom th e fastener h ea d, then insert
the fastener
in to the part to be secured and push
the p
in "a" in wi th a screwdriver. Make sure that
the pin is flush wi
th the fastener's head.
Screw type
1. Remove:
a
- -; ...,,_
.. ... ........
• Quick fastener
TIP ---------------
To remove the quick fasten er, loosen the screw
with a screwdriver,
th en pu ll the fastener out.
BASIC SERVICE INFORMATION
l •
2. Insta ll :
• Quick f
as ten er
TIP --------------~
To insta ll the quick fastener, insert the fastener
in to the part to be secured and tighten the screw
"a".
/
:
I 'I
•
:
'
.....,.,.
ELECTRICAL SYSTEM
Electrical
parts handling
1-13
NOTICE
------------~
Never disconnect a battery lead while the en-
gine Is running; otherwise,
the electrical
components could
be damaged.
EC.-. 1 $1'6()
NOTICE
------------~
When disconnecting the battery leads from
