Yamaha FZ09E - Shift Shaft

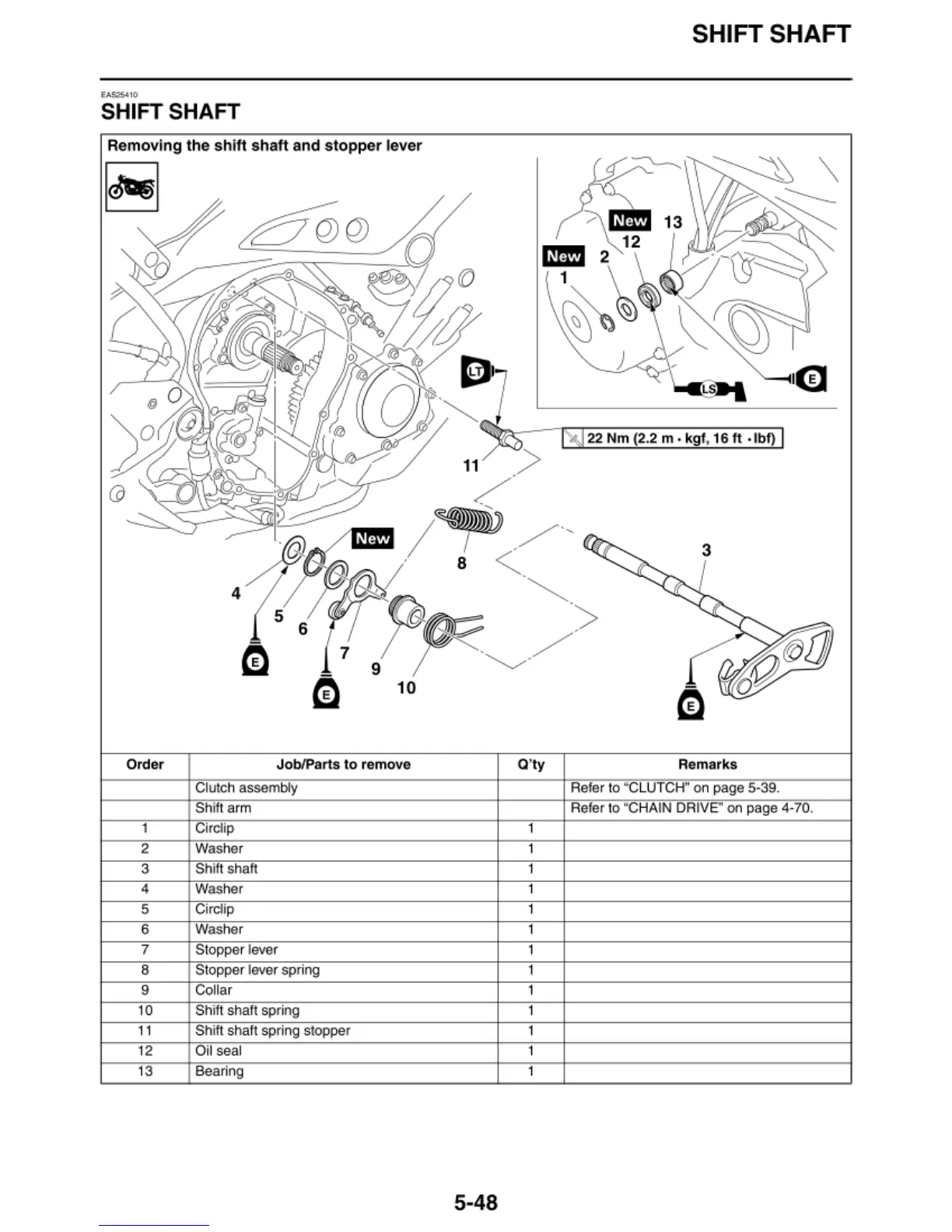

SHIFT SHAFT
EA~IO
SHIFT SHAFT
Removing the shift shaft and stop pe r lever
22 Nm (2 .2 m. kgf . 16 ft -!bf)
g
10
Order Job/Parts to remove Q' ty Remarks
Clutch assembly Refer to "CLUTCH" on page 5-
39 .
Shift arm Refer to "CHAIN
DR IVE" on page 4-70.
1 Circlip 1
2 Washer 1
3
Shi lt shaft 1
4 Washer 1
5
Circl ip 1
6
Washer 1
7 Stopper lever
,
8
Stopper lever s pr ing
,
9
Collar
,
10 Shilt shaft s pr ing
1
11
Shilt shaft s pr ing stopper
1
12 Oil seal
1
13 Bearing 1
5-48
