Yamaha FZ09E - Checking the Gear Position Sensor

Pocket tester
90890-03112
Analog
pocket tester
YU -03112-C
b. Immerse the intake air temperatu
re sensor
"1" in a container filled with water "2".
TIP ~~~~~~~~~~~~~~~
Make sure that the intake air temperature sensor
terminals do not get wet.
c. Place a thermometer "3" in
th e wat er.
3
1
2
d. Slowly heat the water, then let it cool down to
the specified tempera
tu re.
e. Measure the intake air temperature sensor
resistance.
••••••••••••••••••••••••••••••••
3. Install:
• Intake air temperature sensor
EA$1 ACHllS

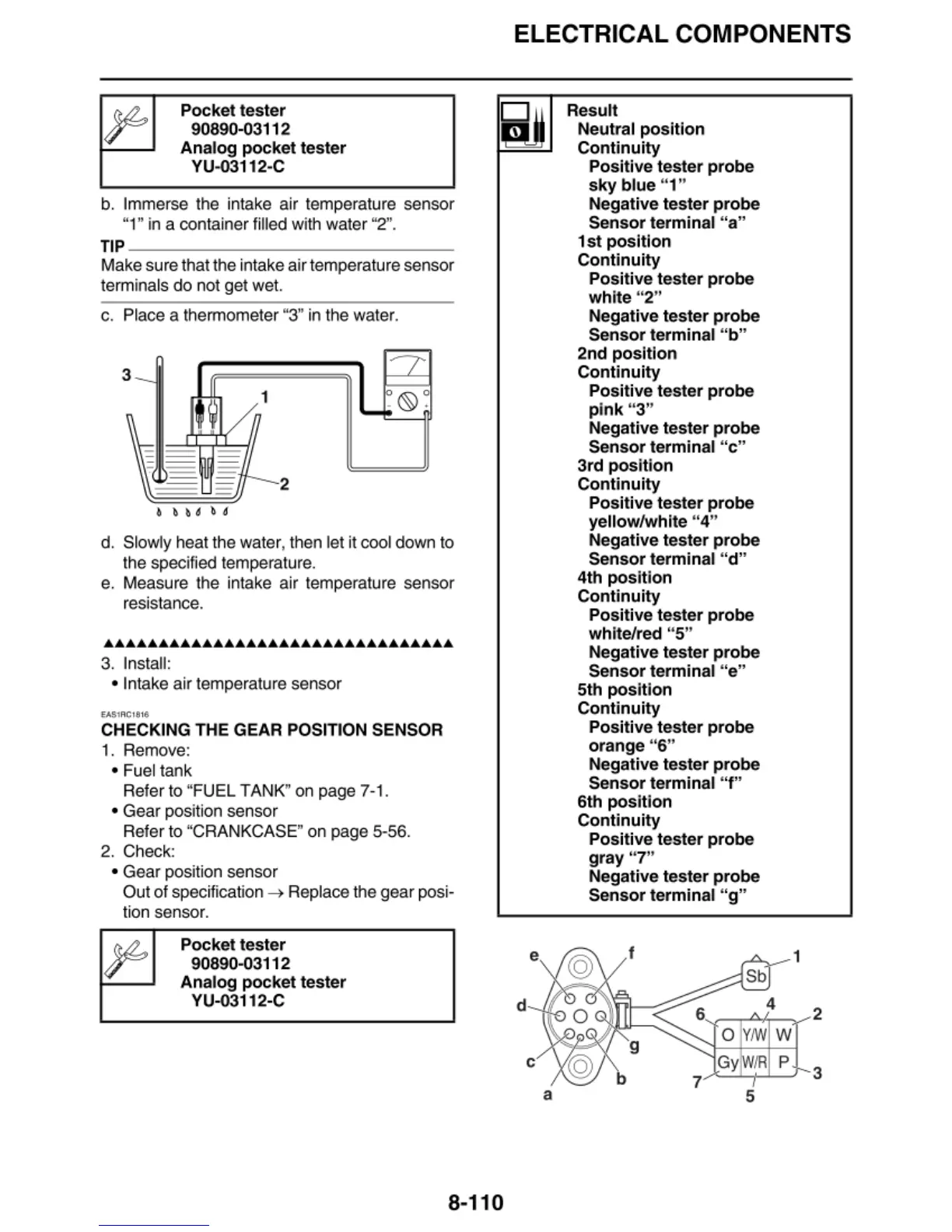

CHECKING THE GEAR POSITION SENSOR
1. Remove:
• Fuel tank
Refer to "FUEL TANK" on page 7-
1.
• Gear position se nsor
Refer to "CR
AN KCASE" on page 5-56.
2. Check:
• Gear position sensor
Out of specificati
on-+ Replace t he gear posi-
tion sensor.
Pocket tester
90890-03112
Analog
pocket tester
YU-03112-C
8-110
ELECTRICAL COMPONENTS
Result
Neutral
position
Continuity
Positive tester probe
sky blue "1"
Negative tester probe
Sensor terminal "
a"
1st position
Continuity
Positive tester probe
white "2"
Negative tester probe
Sensor terminal "b"
2nd
position
Continuity
Positive tester probe
pink " 3"
Negative tester probe
Sensor terminal "
c"
3rd position
Continuity
Positive tester probe
yellow/white "4"
Negative tester probe
Sensor terminal "d"
4th
position
Continuity
Positive tester probe
white/red " 5"
Negative tester probe
Sensor terminal "
e"
5th position
Continuity
Positive tester probe
orange "6"
Negative tester probe
Sensor terminal
"f"
6th position
Continuity
Positive tester probe
gray "7"
Negative tester probe
Sensor terminal "g"
