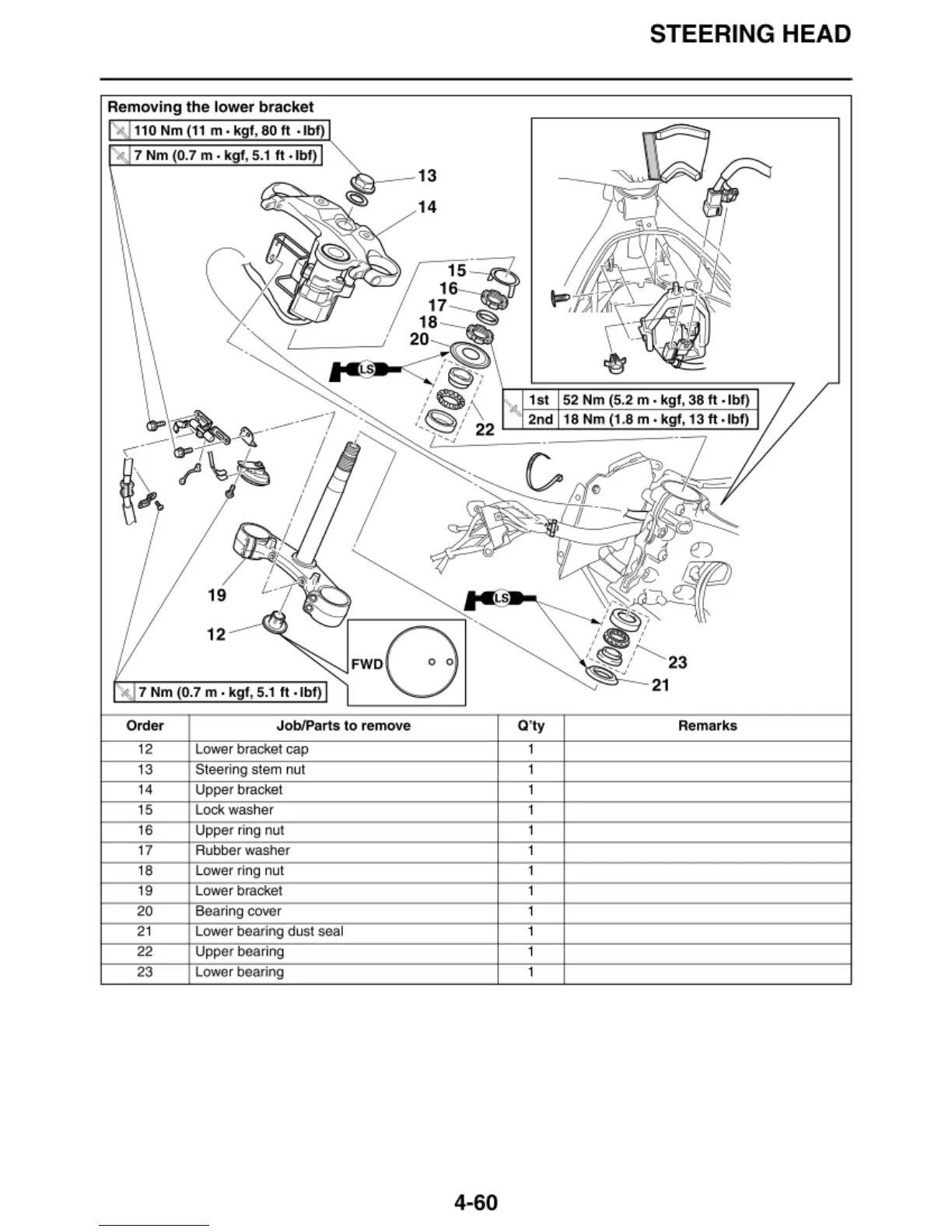

Removing the lower bracket
110Nm(1 1 m·kgf , 80ft ·lb
7 Nm (0.7 m • kgf , 5.1 ft -lbf)
7 Nm (0.7 m • kgf , 5.1 fl · lbf )
Order Job/Parts
to remove
12 Lower brack
et cap
13 Steering stem nut
14 Upper bracket
15 Lock washer
16
Upper ring nut
17
Rubber washer
18 Lower ri
ng nut
19 Lower brack
et
20 Bea ri ng cover
21 Lower bearing dust
sea l
22 Upp
er be a rin g
23 Lower bearing
4-60
STEERING HEAD
1st 52 Nm (5.2 m • kgf , 38 ft • lbf)
2nd 18 Nm
(1 .8 m . kgf , 13 ft -lbf)
21
