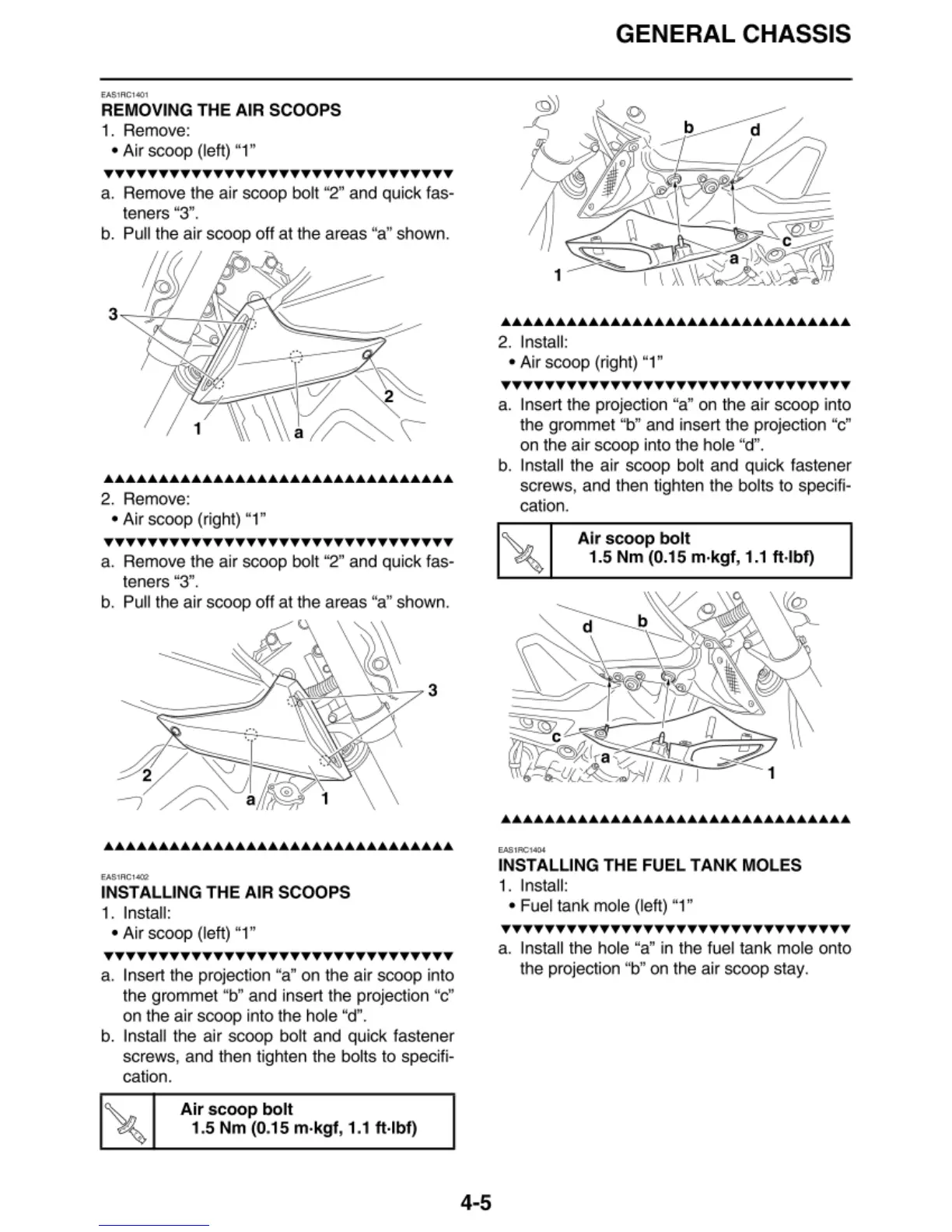

REMOVING THE AIR SCOOPS
1. Remove:
• Air scoop (left) "1"
YTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTT
a. Remove the air scoop bolt "2" and quick fas-
teners "3".
b. Pull the air scoop off at t
he
areas "a" shown.
••••••••••••••••••••••••••••••••
2. Remove:
• Air scoop (righ
t)
"1"
••••••••••••••••••••••••••••••••
a. Remove the air scoop bolt "2" and quick fas-
teners "3".
b. Pull the air scoop off at t
he
areas "a" shown .
.,/
EA$1A
C1«l2
INSTALLING THE
AIR
SCOOPS
1 . Install:
• Air s
coo
p (left) "1"
YTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTT
a. Insert the projection "a" on t
he
air scoop into
the gr
omme
t "b" and insert the projection "c"
on the air scoop into the hole "d".
b. Install the air scoop bolt and qu
ic
k fastener
sc
rews, and t
hen
tighten the bolts to specifi-
ca
tion.
Air
scoop
bolt
1.5 Nm (0.15
m·kgf
, 1.1
ft·lbf
)
4-5
GENERAL CHASSIS
• •••••••••••••••••••••••••••••••
2.
Insta
ll
:
• Air scoop (right) "1"
TTYTTTYYTTTYTTTYYTTTYTTTYTTTYYTT
a. Inse
rt
the projection "a" on the air scoop into
the grommet "b" and insert t
he
projection "c"
on the air
sc
oop
in
to the
ho
le "d".
b.
Insta
ll
the air scoop bolt and quick fastener
screws, and
th
en tighten the bolts to specifi-
cation.
Air
scoop
bolt
1.5 Nm (0.15 m-kgf,
1.1
ft
·lbf)
INSTALLING THE
FUEL
TANK
MOL
ES
1. Insta
ll
:
• Fuel tank mole (left) "1"
••••••••••••••••••••••••••••••••
a. Insta
ll
the
ho
le "a" in the fuel tank mole onto
the projection "b" on the air scoop stay.
