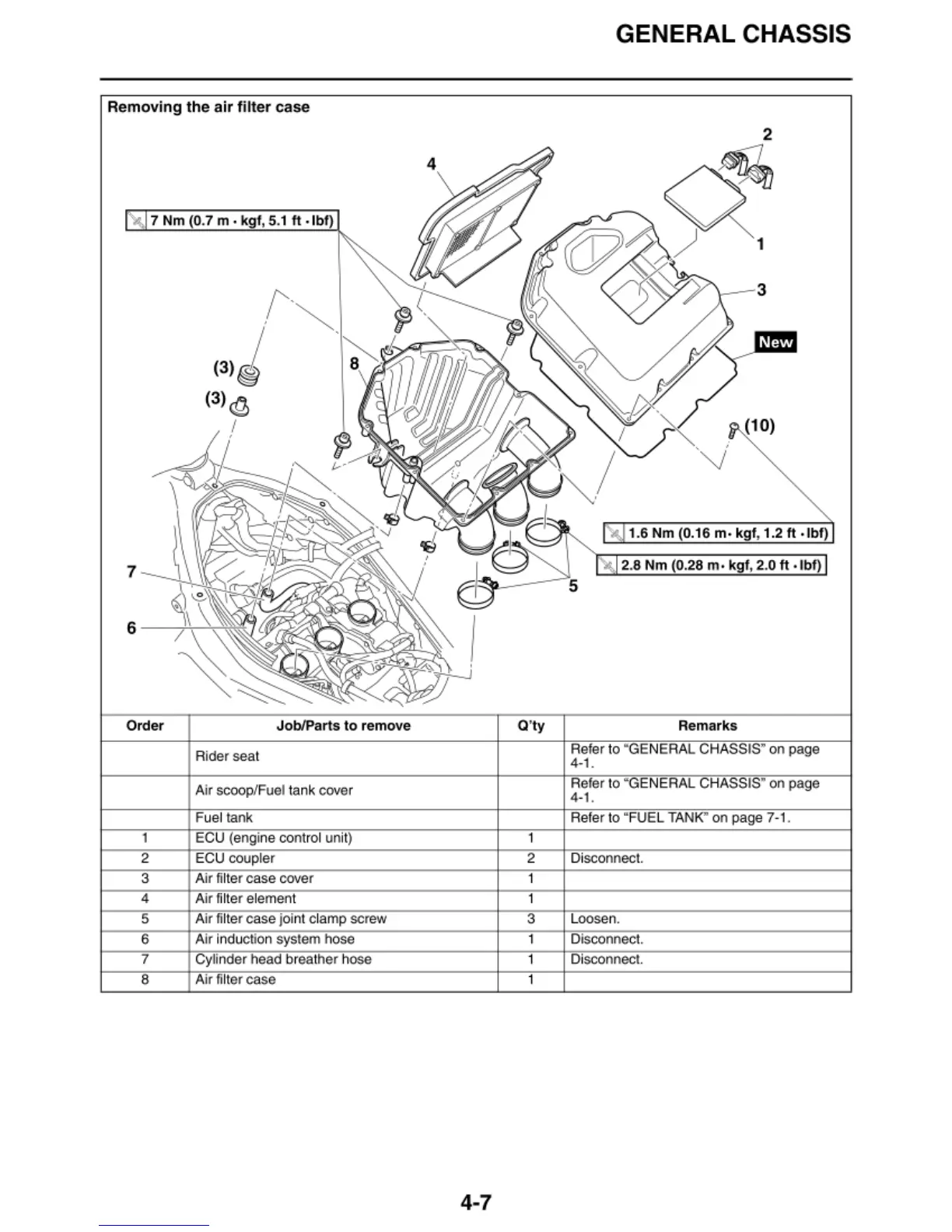

Removing the ai r filter case
'll, 7 Nm (0 .7 m . k gf , 5.1 ft • lbf )
Order Job/Parts
to remove
Rider
sea t
Air scoop/Fuel tank cover
Fuel tank
1 EC U (engine control un it)
2
ECU coupler
3
Air filter case cover
4 Air filter element
5
Air filter case joint clamp screw
6 Air induction system hose
7 Cylinder head breat her hose
8 Air fil t er case
4
Q'ty
1
2
1
1
3
1
1
1
4-7
GENERAL CHASSIS
1
1. 6 Nm (0.16 m · kgf , 1.2 ft .f bf )
~ 2.8 Nm (0. 28 m • kgf , 2.0 ft • lbf}
Remarks
Refer to "GENERAL CHASSIS" on page
4· 1.
Refer to "GENERAL CHASSIS' on page
4-1.
Refer to "FUEL TANK" on page 7 -1 .
Disconnect.
l oose
n.
Disconne ct .
Disconnect
