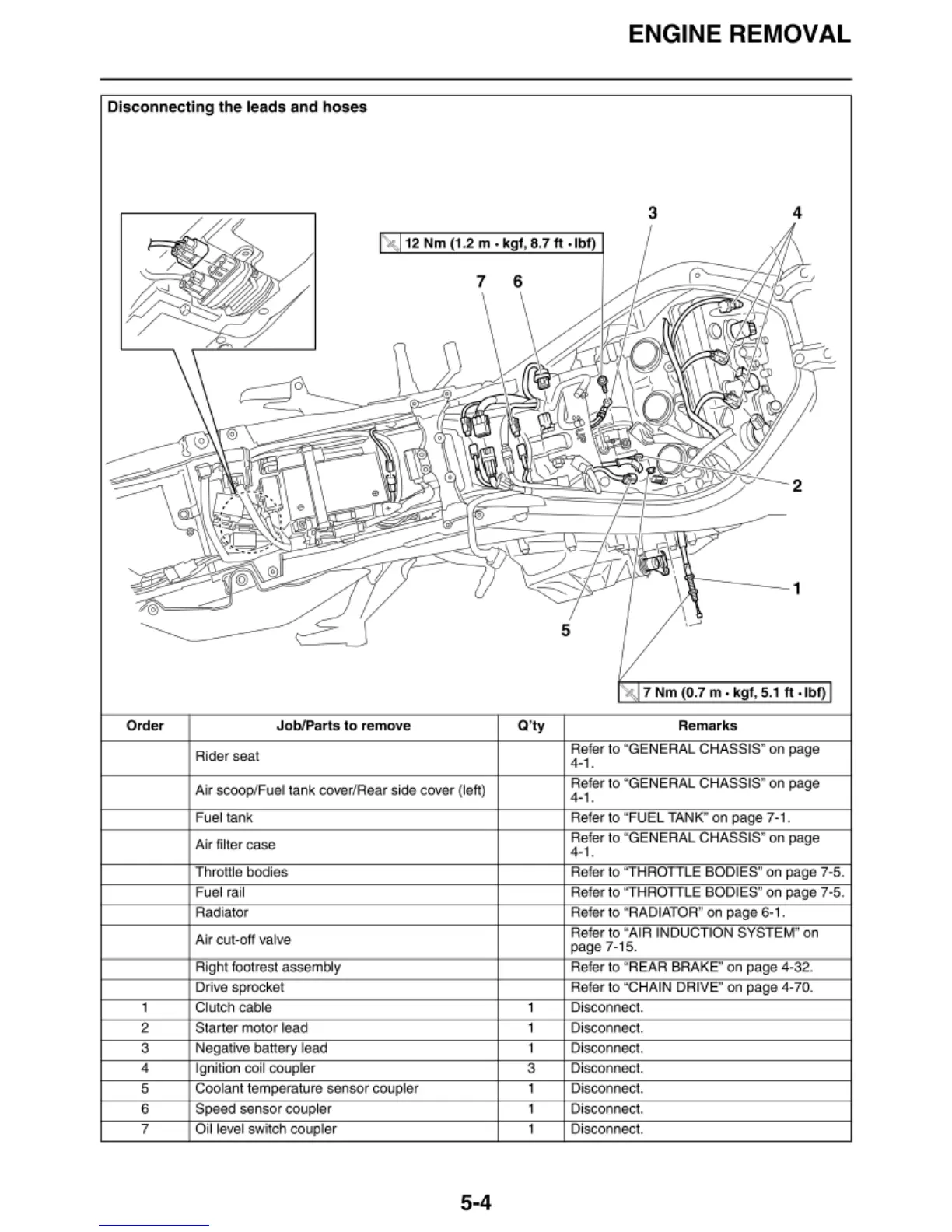

ENGINE REMOVAL
Disconnec t ing t he leads and hoses
3 4
~ 12 Nm (1 .2 m • kgf . 8.7 ft
0
lbf)
7 6
--1 0
•
•
2
7 Nm (0.7 m • kgf , 5.1 ft - lbl)
Order Job/Parts to remove Q'ty Remarks
Rider seat
Refer to "GEN
ER AL CHASSIS" on page
4· 1.
Air scoop/Fuel ta
nk cover /Rear side cover (left)
Refer to "GENERAL CHASSIS'
on page
4· 1.
Fuel tank
Re fer to "F UE L TA NK" on page 7 ·1 .
A
ir filter case
Refer to "GENERAL CHASSIS"
on page
4·1.
T hr ottle bodies Refer to "THROTTLE BOD IES" on page 7 ·5.
Fuel rail Refer to "THROTTLE BOD IES" on page 7 ·5.
Radiat or Refer to "RADIATOR" on page 6· 1.
A
ir cut- off valve
Refer to "AIR INDUCTION SYSTEM"
on
page 7-15.
Right f
oo trest assembly Refer to "REAR B RAKE' on page 4-32.
Drive sprocket Refer to "CHAIN
DR IVE" on page 4-70.
1 Clutch cable 1 Disconnect.
2 Starter motor lead 1 Disconnect.
3
Negative ba
tt ery lead 1 Disconnect.
4 Ignition coil coupler
3
Disconnect.
5
Coolant temperature sensor coupler
1 Disco nne ct.
6
Speed sensor co up ler 1 Disconnect.
7 Oil level sw
itc h coupler 1 Disconnect.
