T IP ~~~~~~~~~~~~~~

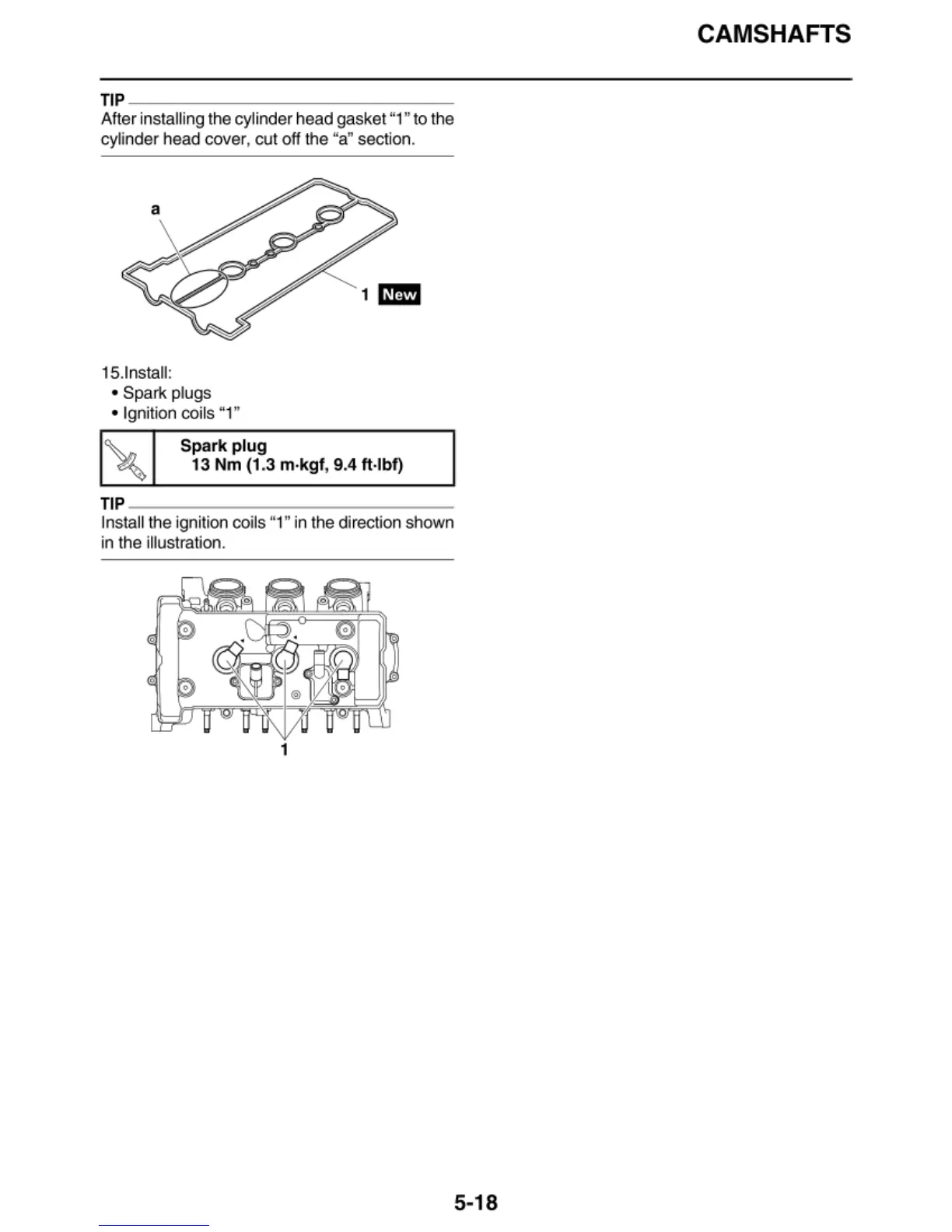

After installing the cylinder head gasket "1" to the
cy linder head cover, cut off t he "a" section.
a
15.lnstall:
• Spark plugs
• Ignition co
il s "1"
Spark plug
13 Nm (1 .3 m-kgf, 9.4 fl·lbf)
TIP ~~~~~~~~~~~~~~-
lnsta ll the ignition coils "1" in the direct io n shown
in the illustration.
CAMSHAFTS
5-18
