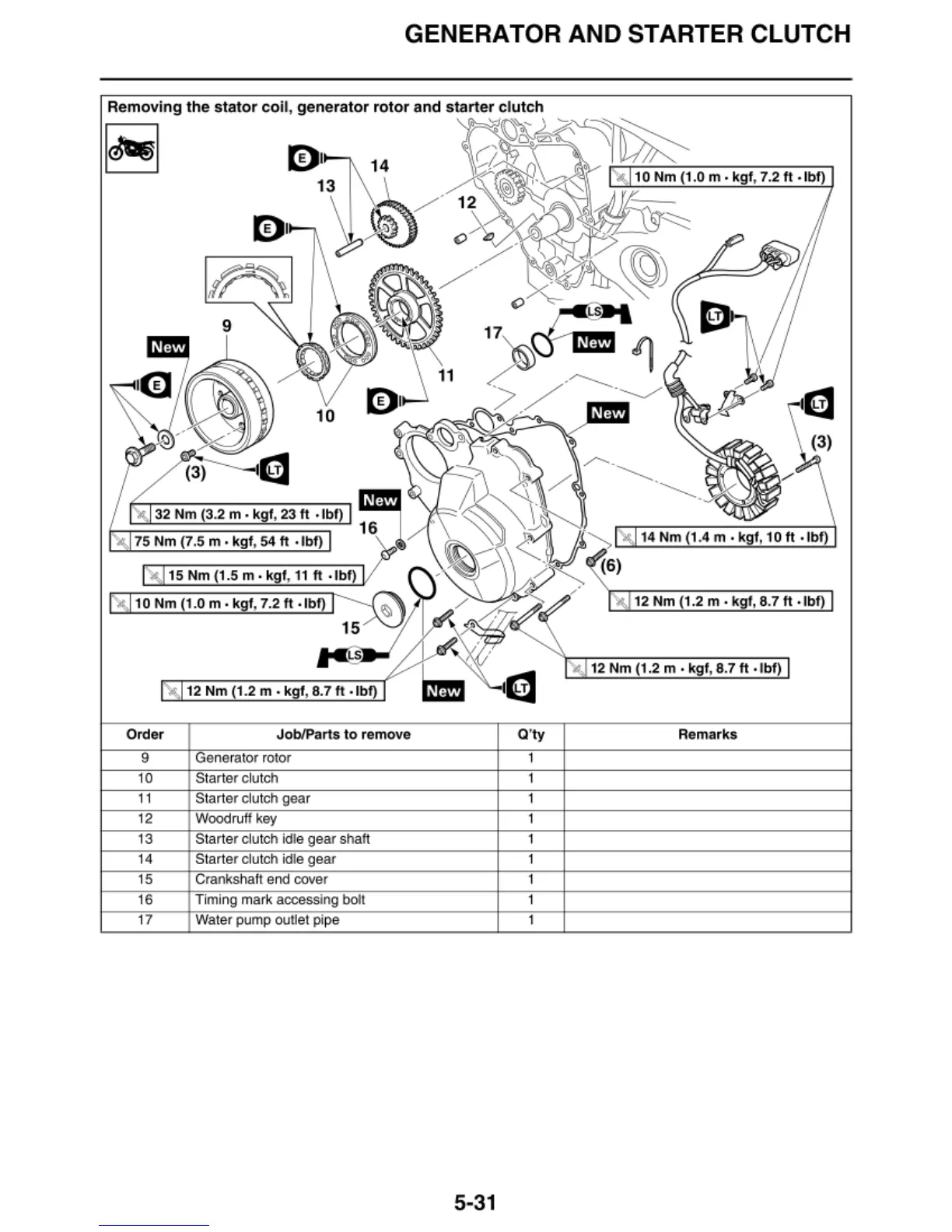

GENERATOR AND STARTER CLUTCH
10
32 Nm (3.2 m • kgf, 23 ft • lbf)
~ 75 Nm (7.5 m. kgf , 54 ft -lbf)
':, 14Nm(1.4m·kgf , 10ft· l bf)
12 Nm (1.2 m . kgf, 8.7 ft · l bf)
\!, 12 Nm (1.2 m • kgf , 8.7 ft • lbf)
12 Nm (1.2 m • kgf , 8.7 ft
0
lbf)
Order Job/Parts
to remove Q' ty Remarks
9
Ge nerat or rotor 1
10 Starter clutch 1
1 1 Start
er clutch gear 1
12 Woodruff key 1
13 Starter clutch idle gear shaft 1
14 Starter clutch idle gear 1
15 Crankshaft end cover 1
16
Timing mark access
in g bolt
1
17
Wa ter pump outlet pipe
1
