TRANSMISSION
EA$262-t1
TRANSMISSION

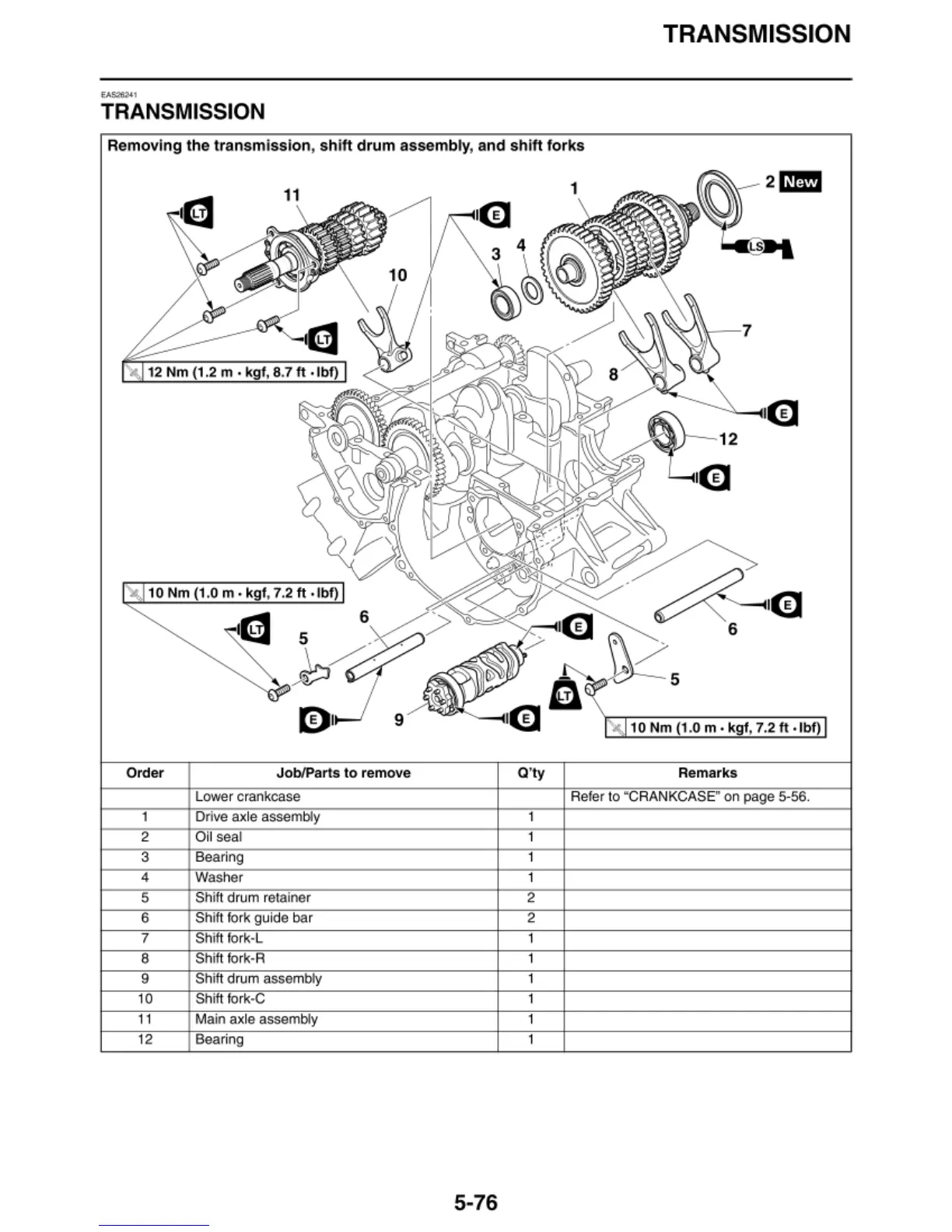

Removing the transmission, shift drum assembly, and shift forks
'ii, 12 Nm (1.2 m. kg! , 8.7 ft .fbf)
10 Nm (1 .0 m. kgf , 7.2 ft
0
lbf)
6
0 1
9
'ii, 10 Nm (1.0 m • kgf , 7.2 ft ·lbf)
Order
Job/Parts
to remove Q'ty Remarks
Lower crankcase
Refer to "CRANKCAS
E" on page 5- 56 .
1
Drive axle assembly
,
2
Oil seal
1
3 Bearing 1
4 Washer 1
5 Shift drum retainer 2
6 Shift fork guide bar 2
7 Shilt fork·L 1
8
Shilt fork·R 1
9
Shilt drum assembly 1
10 Shilt fork·C 1
, ,
Main axle assembly
,
12 Bearing
,
5-76
