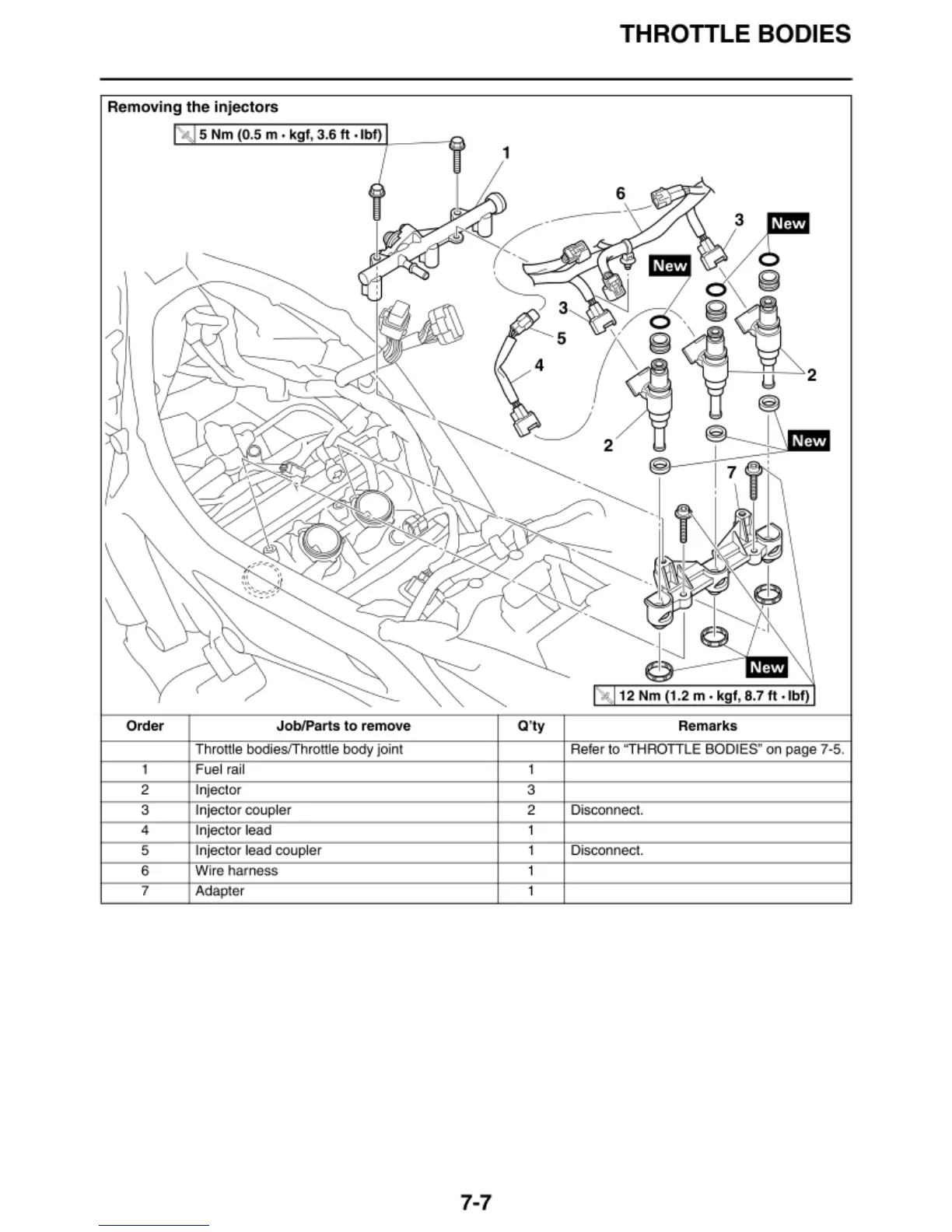

THROTILE BODIES
Removing the injec t ors
5 Nm (0.5 m • kgf . 3.6 ft
0
l bf )
1
12 Nm (1.2 m • kgf, 8 .7 ft · I bf)
Order
Job/Parts to remove Q'ty Remarks
Throttle bodies/Throttle body joint Refer to "THROTTLE BODIES" on page 7·5.
1 Fuel rail 1
2
Injector
3
3
Injector coupler
2
Disconnect.
4 Injector lead
1
5
Injector lead coupler
1
Disconnect.
6 Wi re harness 1
7 Ad ap ter 1
