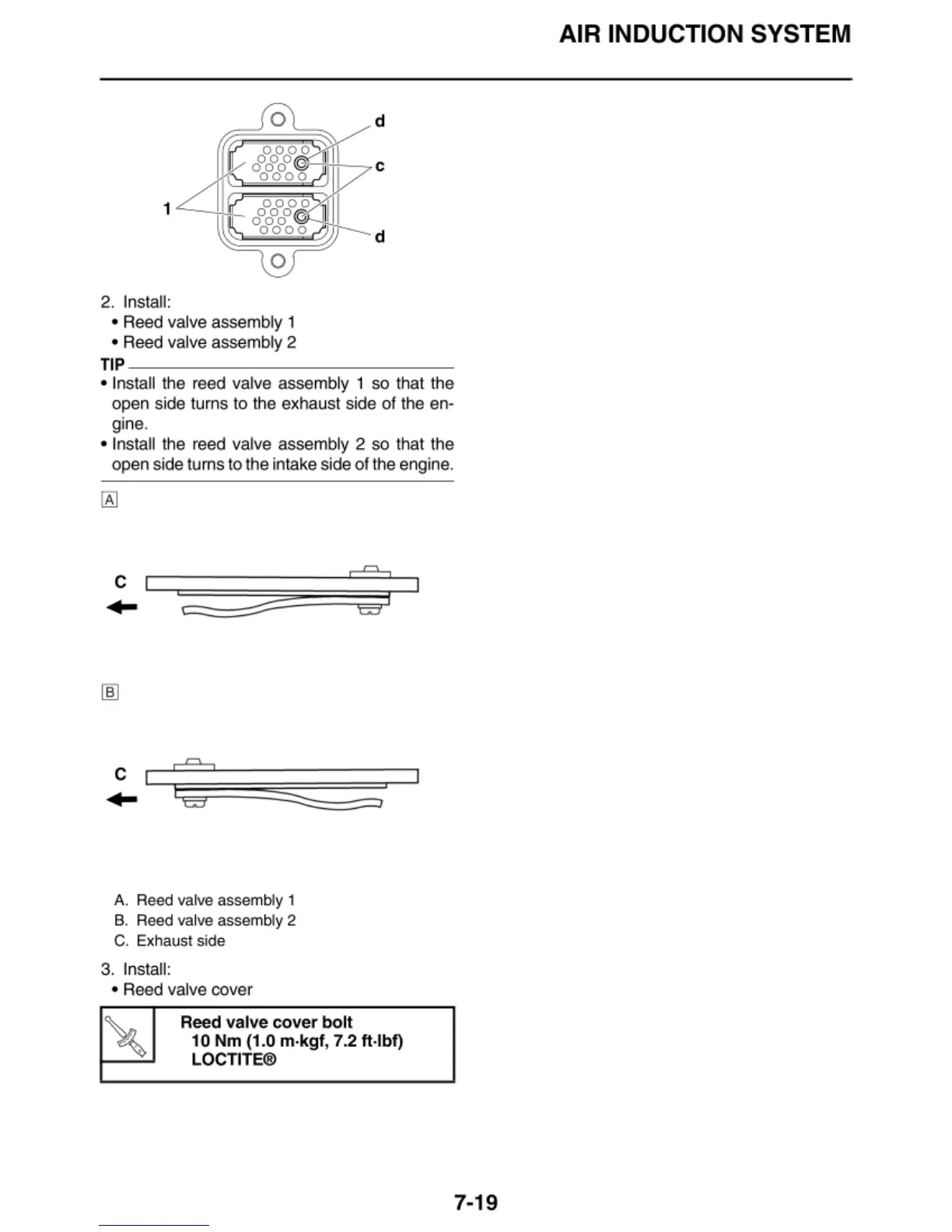

2. Install:
• Reed valve assembly 1
• Reed valve assembly 2
TIP ~~~~~~~~~~~~~~-
• Install the reed valve assembly 1 so that the
open side turns to the exhaust side of the en·
gine.
• Install the reed va lve assembly 2 so that the
open side turns to the intake side of the engine.
A. Ree d val ve assembly 1
B. Ree d val ve assembly 2
C. Exhaust s
id e
3. Install:
• Reed valve
cover
Reed valve cover bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
LOCTITE ®
