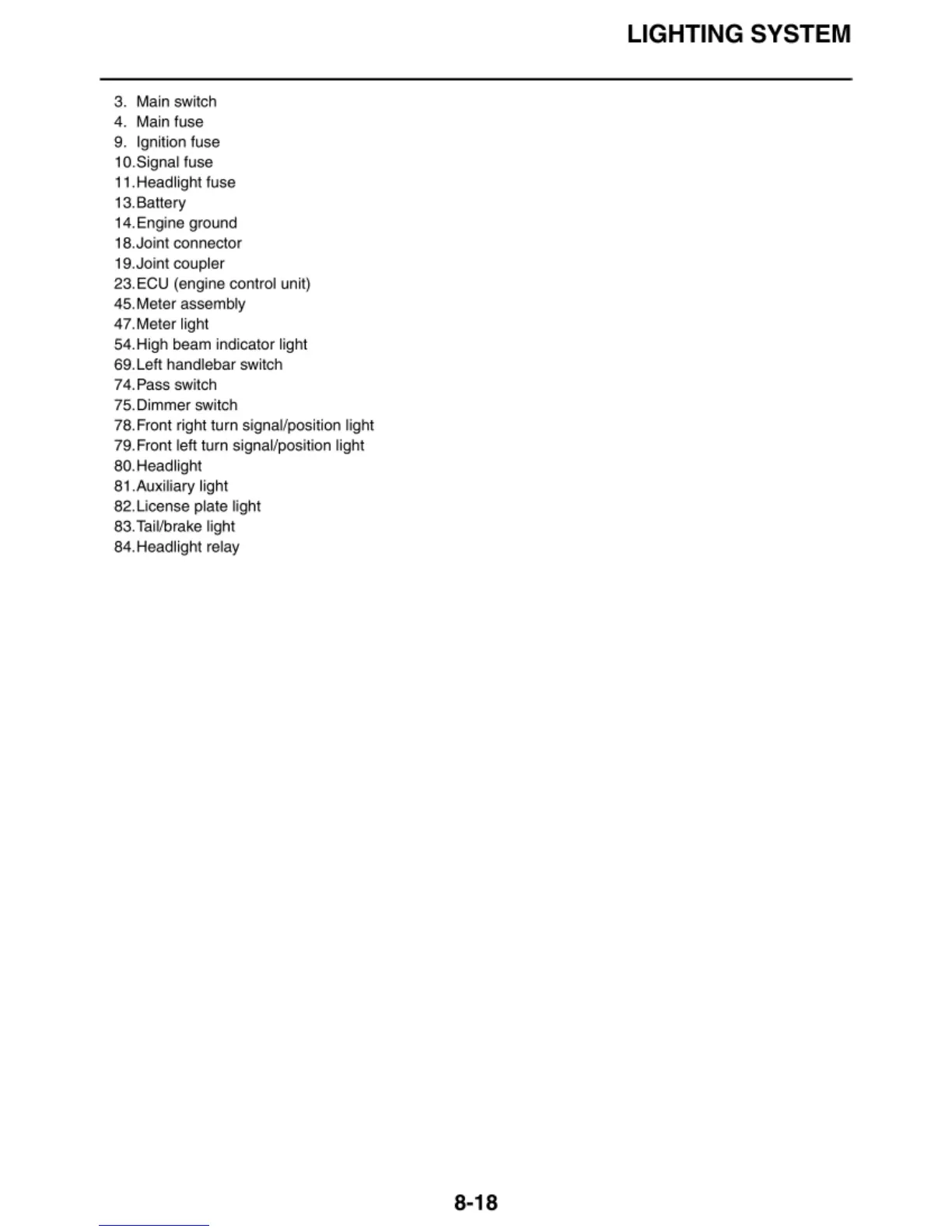

Yamaha FZ09E - Page 353

3. Main switch
4. Main fuse
9. Ignition fuse
10.Signal fuse
11. Headlight fuse
13.Batt
ery
14.Engine ground
18.Joint connector
19.Joi
nt coupler
23.ECU (engi
ne control unit)
45. Meter assembly
47.Meter light
54.High beam indicator light
69. L
eft handlebar sw itch
7 4. Pass switch
75. Dimmer switch
78. Front right turn signa
l/ position li ght
79.Front l eft turn sig na l/position light
80.Headlight
81.Auxili
ary light
82. License plate light
83. Tai Vb rake light
84.Headlight relay
LIGHTING SYSTEM
8-18
