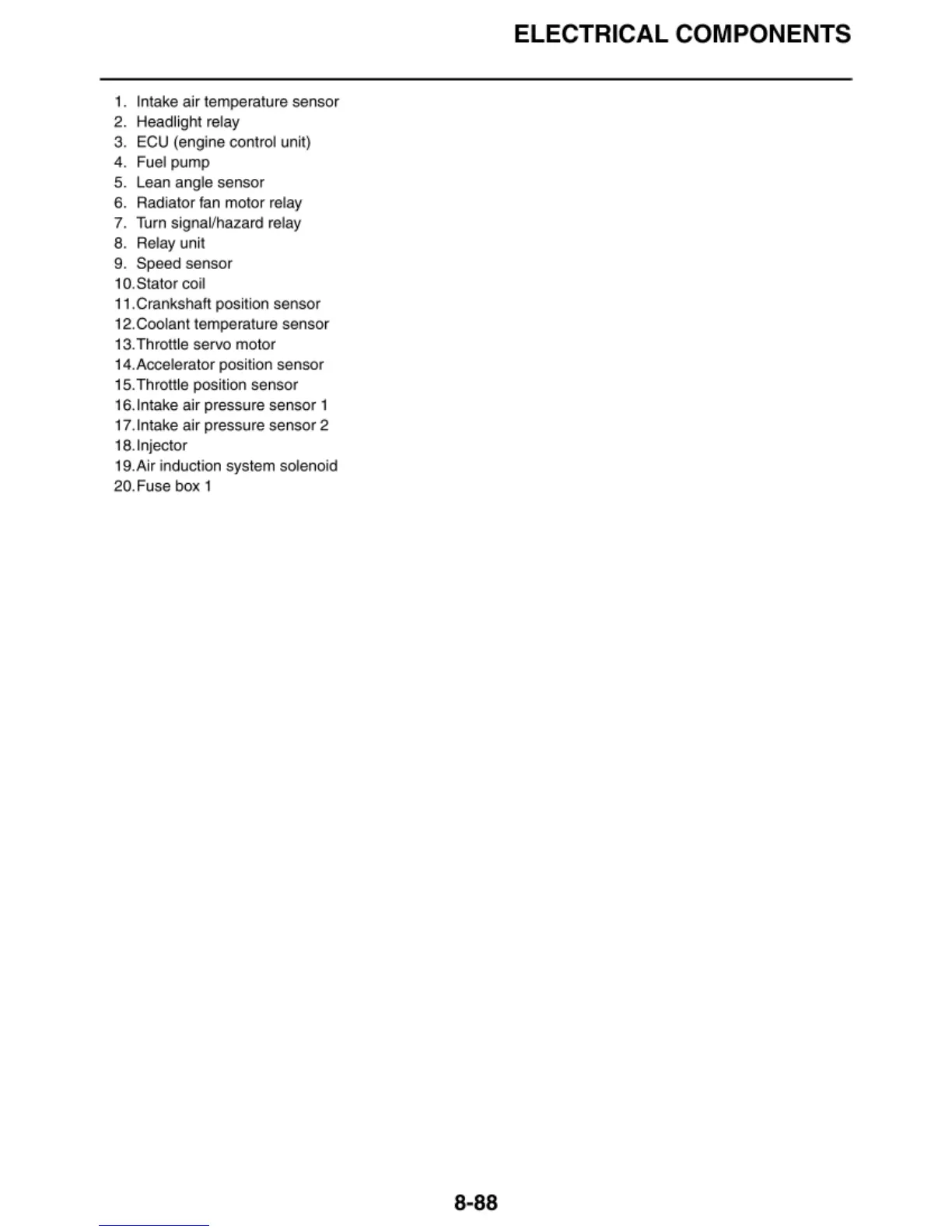

1. Intake air tempe ra ture sensor
2. Headlight relay
3. ECU (engine control unit)
4. Fuel pump
5. Lean angle sensor
6. Radiator fan motor relay
7. Turn signal/hazard rel ay
8. Relay unit
9. Sp ee d sensor
10.Stator
co il
1
1. Crankshaft positi on sensor
12.Cootant temperature sensor
13. Throttle servo
mo t or
14.Acceterat or position sensor
15. Throttle positi
on sensor
16. Intake air pressure sensor 1
17.lntake air pressure sensor 2
18. Injector
19.Air
in duction syst em so lenoid
20.Fuse box 1
ELECTRICAL COMPONENTS
8-88
