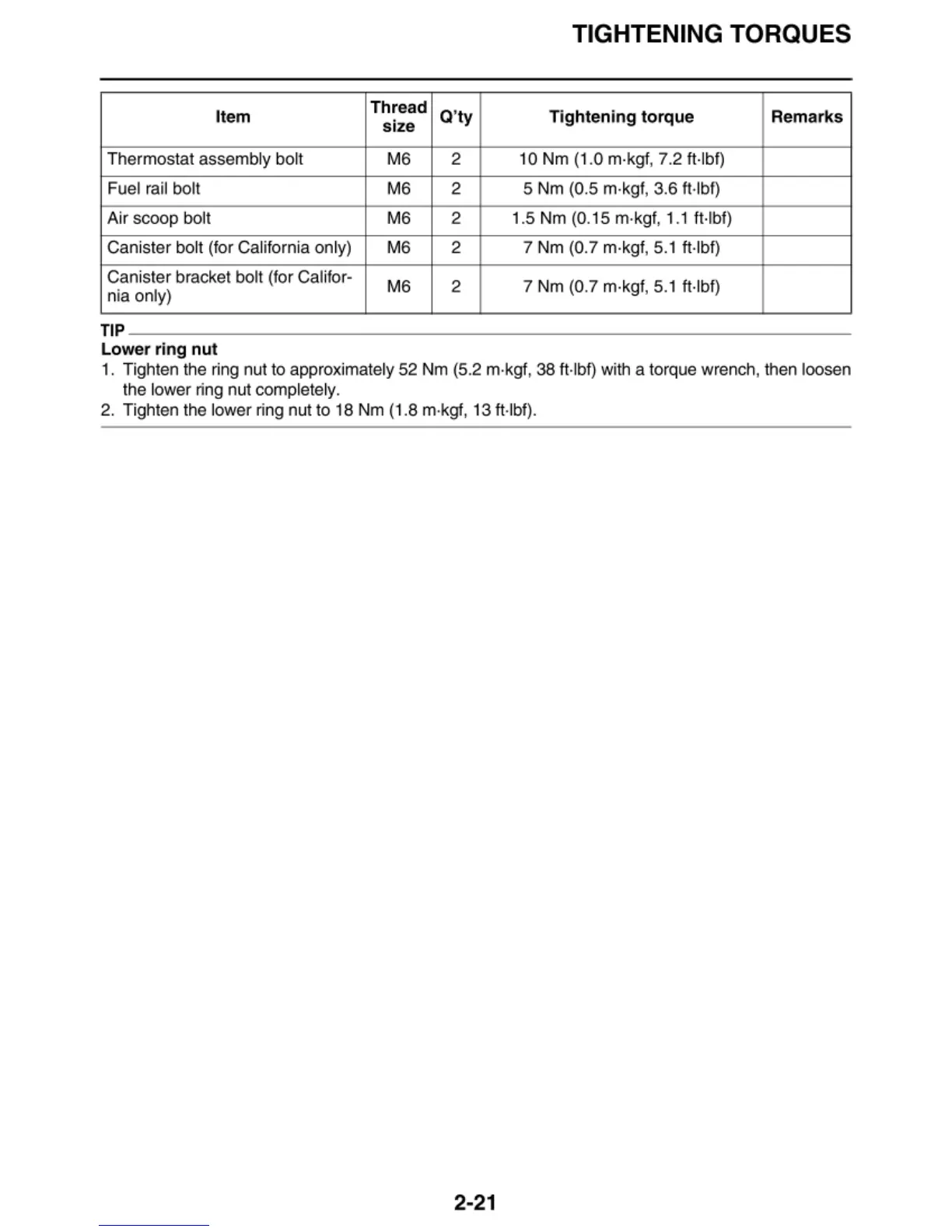

TIGHTENING TORQUES
Item
Thr ead
Q'
ty Tighteni ng torque Remar ks
size
Thermost at assembly bolt M6 2 10 Nm (1.0 m·kgf, 7.2 ft·l bf )
Fuel rail bolt M6 2 5 Nm (0.5 m
-k gf, 3.6 ft· lbf)
Air scoop bolt M6
2
1.5 Nm (0.15 m·k
gf , 1.1 ft-lb!)
Canister bolt (for California only)
M6
2 7 Nm (0
.7 m-k gf , 5.1 fl·lbf)
Canister brack
et bolt (for Cali fo r-
M6
2
7 Nm (0.7 m-k
gf , 5.1 fl·lbf)
n
ia only)
TIP ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Lower ri ng nut
1. Tighten the rin g nu t to appr ox imately 52 Nm (5 .2 m·kgf, 38 ft-lb!) with a torque wrench, then loosen
the lower ring nut completel
y.
2. Ti ghten the lower ri ng nut to 18 Nm (1.8 m·kgf, 13 ft·l bf) .
