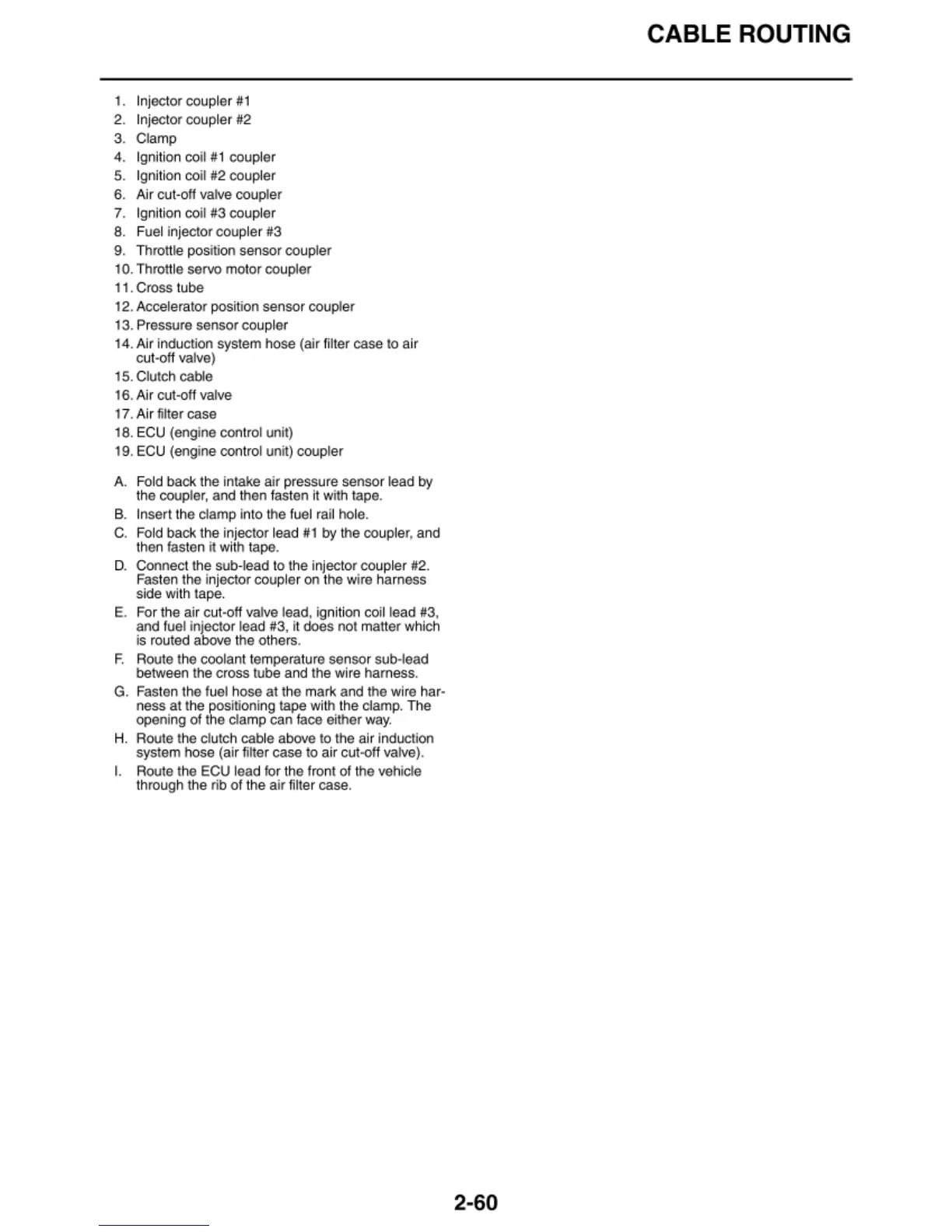

1. Inject
or
coupler #1
2. Injector coupler #2
3.
Clamp
4.
Ignition coil #1
co
upler
5. Ignition coil #2
co
upler
6.
Air cut-off valve coupler
7. Ignition coil #3
co
upler
8. F
ue
l injector
coup
ler #3
9.
Throttle
po
sition
se
nsor
co
upler
1 O. Throttle servo
mo
tor
co
upler
11
. Cr
oss
tu
be
1
2.
Accelerator positi
on
sensor coupler
13
. Pressure sensor
co
upler
14
. Air induction system hose (air
fi
lter case to a
ir
cut-off valve)
15. Clutch cable
1
6.
Air cut-off valve
1
7.
A
ir
filter case
18
. ECU (engi
ne
control unit)
1
9.
ECU (engi
ne
control untt) coupler
A. Fold back the intake air pressure sensor lead
by
th
e coupler, and t
hen
fast
en
it w
it
h tape.
B. Insert
th
e clamp into t
he
fu
el rail
ho
le.
C.
Fold back the inje
ctor
lead
#1
by
t
he
co
upler, and
th
en fasten tt with tape.
D.
Co
nn
ec
t the sub-lead to the injector
co
upler #2.
Fasten the injector coupler
on
t
he
wi
re
harness
si
de
with tape.
E. For the air cut-off valve lead, ignition coil lead #3,
and fuel injector lead #3, it does
not
matter which
is routed above t
he
others.
F. Rou
te
the coolant temperature sensor sub-lead
between the cross t
ub
e and the wi
re
harness.
G. Fasten the fuel hose
at
the mark and the w
ir
e har-
ness
at
the positioning tape with
th
e clamp. The
opening
of
the clamp can face either way.
H.
Roule the clu
tc
h cable above to the a
ir
induction
system hose (air filter case to air cut-off valve).
I. Rou
te
the ECU lead for
th
e front of t
he
vehicle
through the rib of
th
e a
ir
filter case.
CABLE ROUTING
2-60
To Next Page
