5-10

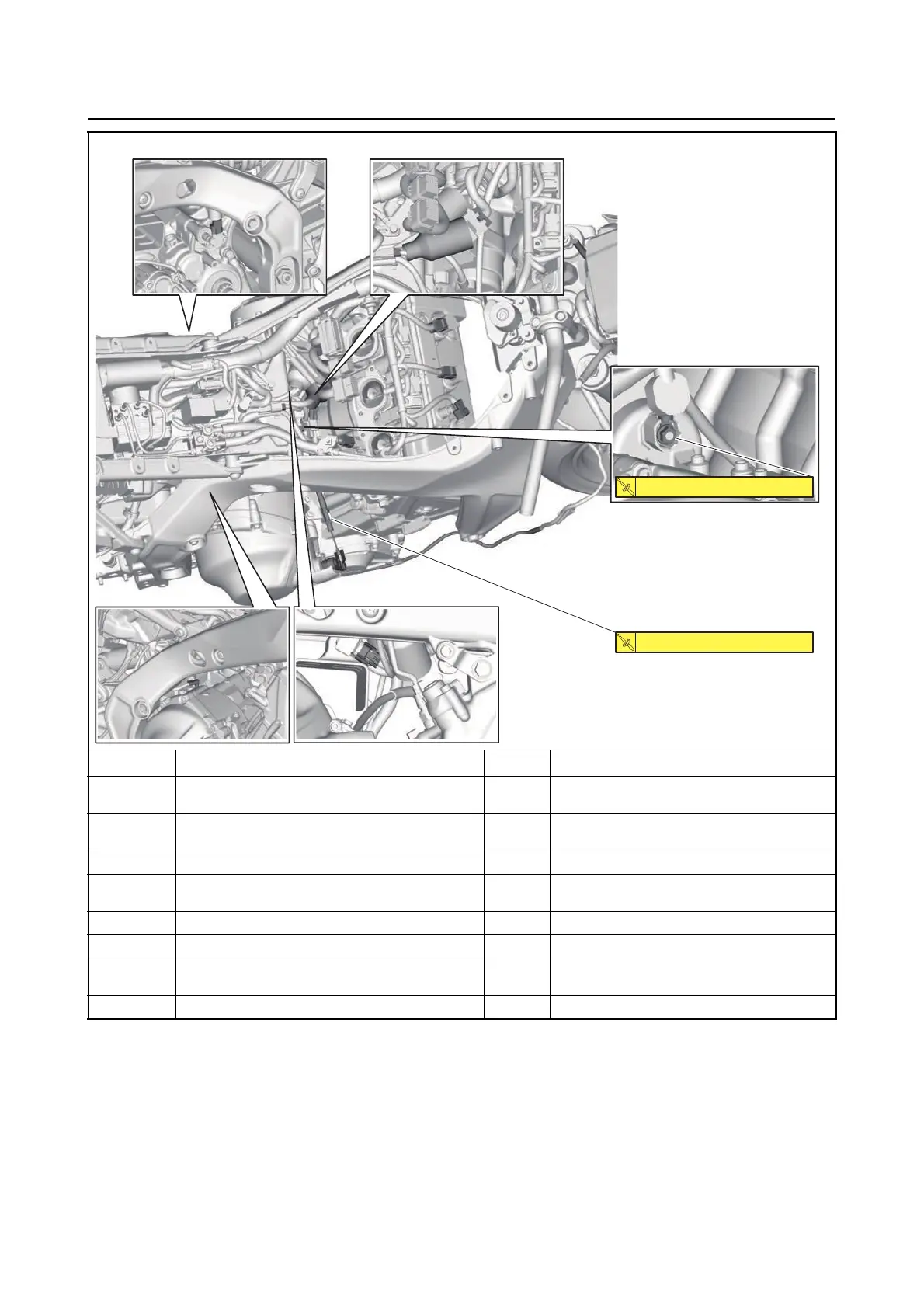

ENGINE REMOVAL
Disconnecting the leads and hoses
Order Job/Parts to remove Q’ty Remarks
Rider seat
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Fuel tank center cover
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case
Refer to “GENERAL CHASSIS (2)” on
page 4-10.
Canister Refer to “FUEL TANK” on page 7-1.
Throttle bodies Refer to “THROTTLE BODIES” on page 7-5.
Front side panel
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Radiator Refer to “RADIATOR” on page 6-3.
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T.R.
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T.R.
To Next Page
