3.7 Test Run
3.7.3 Test Run Dialog Box Details
3-55
3
Machine Controller Setup
3.7.3
Test Run Dialog Box Details

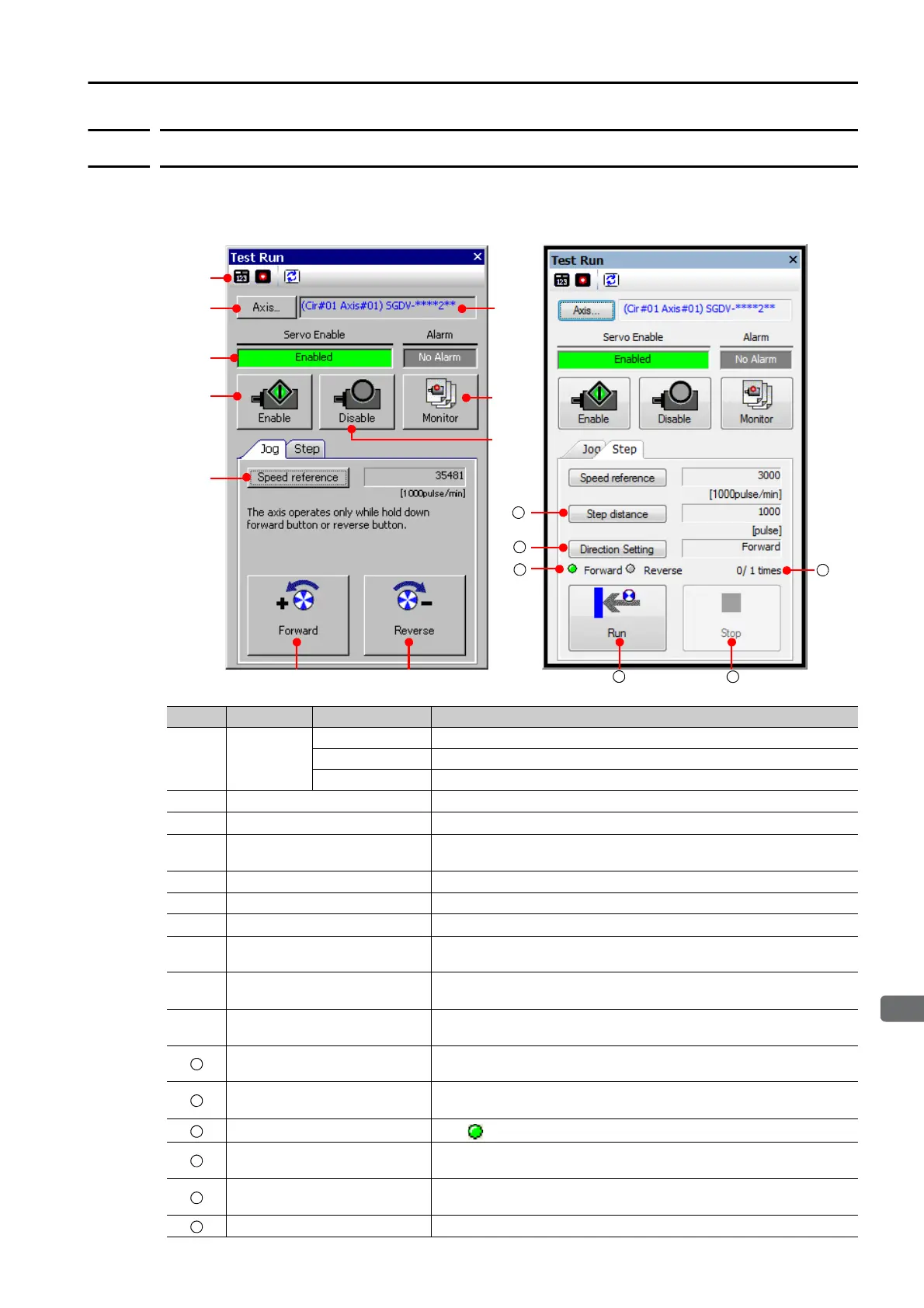

This section provides a detailed description of the Test Run Dialog Box.
You can select jogging or stepping by clicking the tabs.
Jogging Stepping
No. Item Function
Tool Bar
Axis Monitor Displays the Axis Monitor Tab Page in the Main Window.
Alarm Monitor Displays the Alarm Monitor Tab Page in the Main Window.
Refresh Updates the test run information.
Axis Displays the Axis Selection Dialog Box.
Axis Display Displays the selected axis.
Status
Displays the operating status of the axis and any alarms that
occurred.
Enable Turns ON the axis servo.
Disable Turns OFF the axis servo.
Monitor Displays the Alarm/Warning Dialog Box.
Speed Reference
Displays the Speed Reference Setting Dialog Box. Set the speed
(speed reference value) for axis rotation.
Forward
While this button is pressed, the axis rotates in the positive direc-
tion.
Reverse
While this button is pressed, the axis rotates in the negative direc-
tion.
Step Distance
Displays the Step Distance Setting Dialog Box. Set the step dis-
tance for the axis.
Direction Setting
Displays the Direction Setting Dialog Box. Set the starting direction
and the number of rotations for the step operation.
Forward/Reverse Status
The mark indicates the current step direction.
Repetition Counter Status
Displays the repetition status as the current repetition count/set
repetition count.
Run
Performs stepping in the direction that was specified in the Direc-
tion Setting Dialog Box.
Stop Stops the stepping operation.
