YASKAWA MP3000 Series - Connecting the Power Supply Connector

2.3 Connecting Devices
2.3.2 Connecting the Power Supply Connector
2-41
2
Installation and Connections
2.3.2 Connecting the Power Supply Connector
This section describes how to connect the power supply connector.
Power Connector Specifications, Pin Assignments, and
Connection Method
 100/200-VAC Power Supply

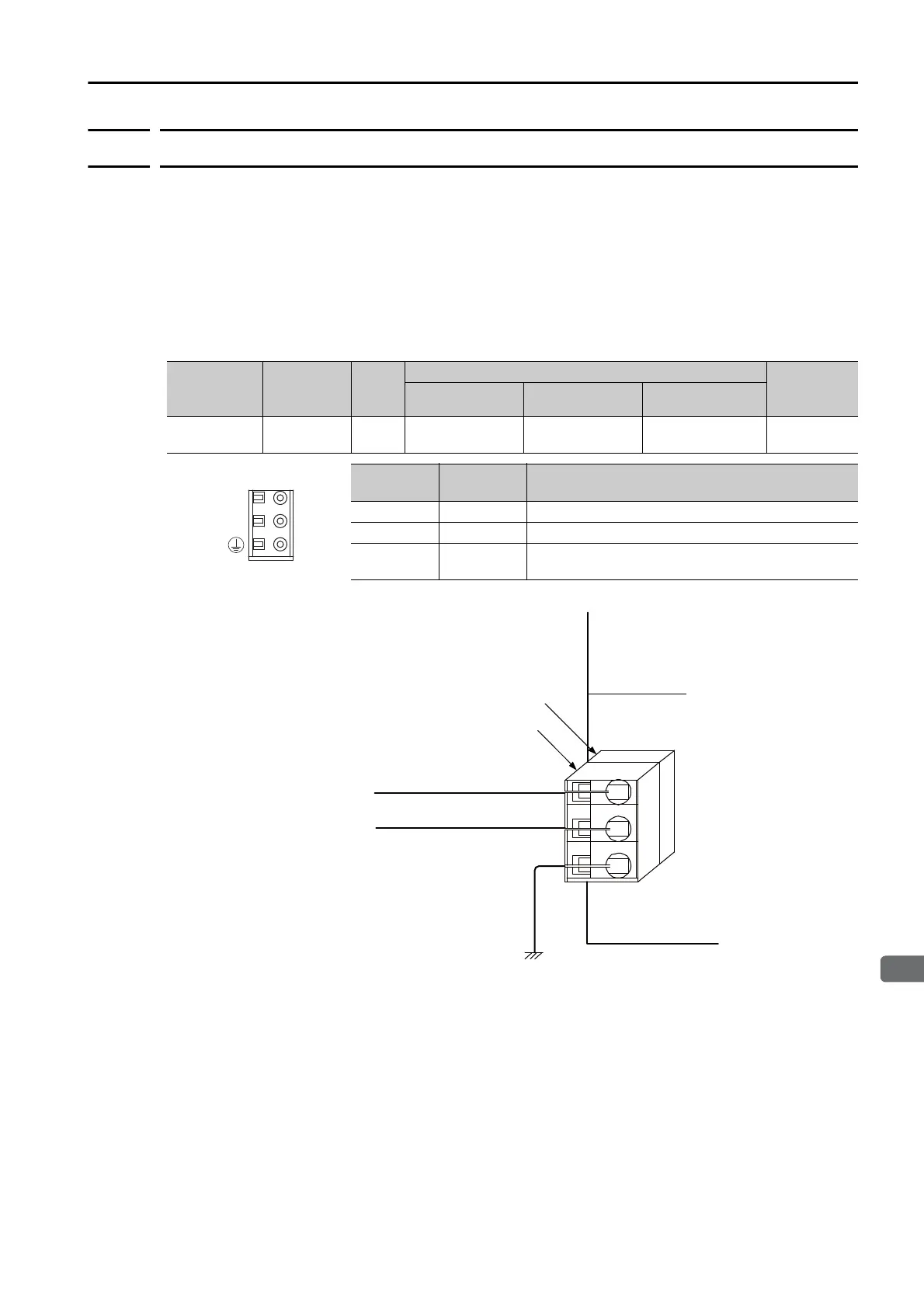

The power supply for the Machine Controller is 100/200 VAC. Refer to the following figure for
the connection methods.
Name
Connector
Label
Num-
ber of
pins
Connector Models
Cable Model
Module Side Cable Side Manufacturer
Power
Connector
POWER 3 721-863 721-203/026
WAGO Company
of JAPAN
−
Pin No.
Signal
Label
Description
3ACAC input
2ACAC input
1FG
Connects to the frame ground. (Ground to 100 Ω
max.)
AC
AC
POWER
POWER
721-863
721-203/026
FG
AC input
Machine Controller
