5.3 Monitoring Machine Operation
5.3.4 XY Trace
5-66
5.3.4
XY Trace
An XY trace gets the position data (target position and feedback position) of the X and Y axes
in every scan and displays them on a 2-dimensional plane graph, allowing for visual analysis of
the paths that the two axes take.
Starting the XY Trace

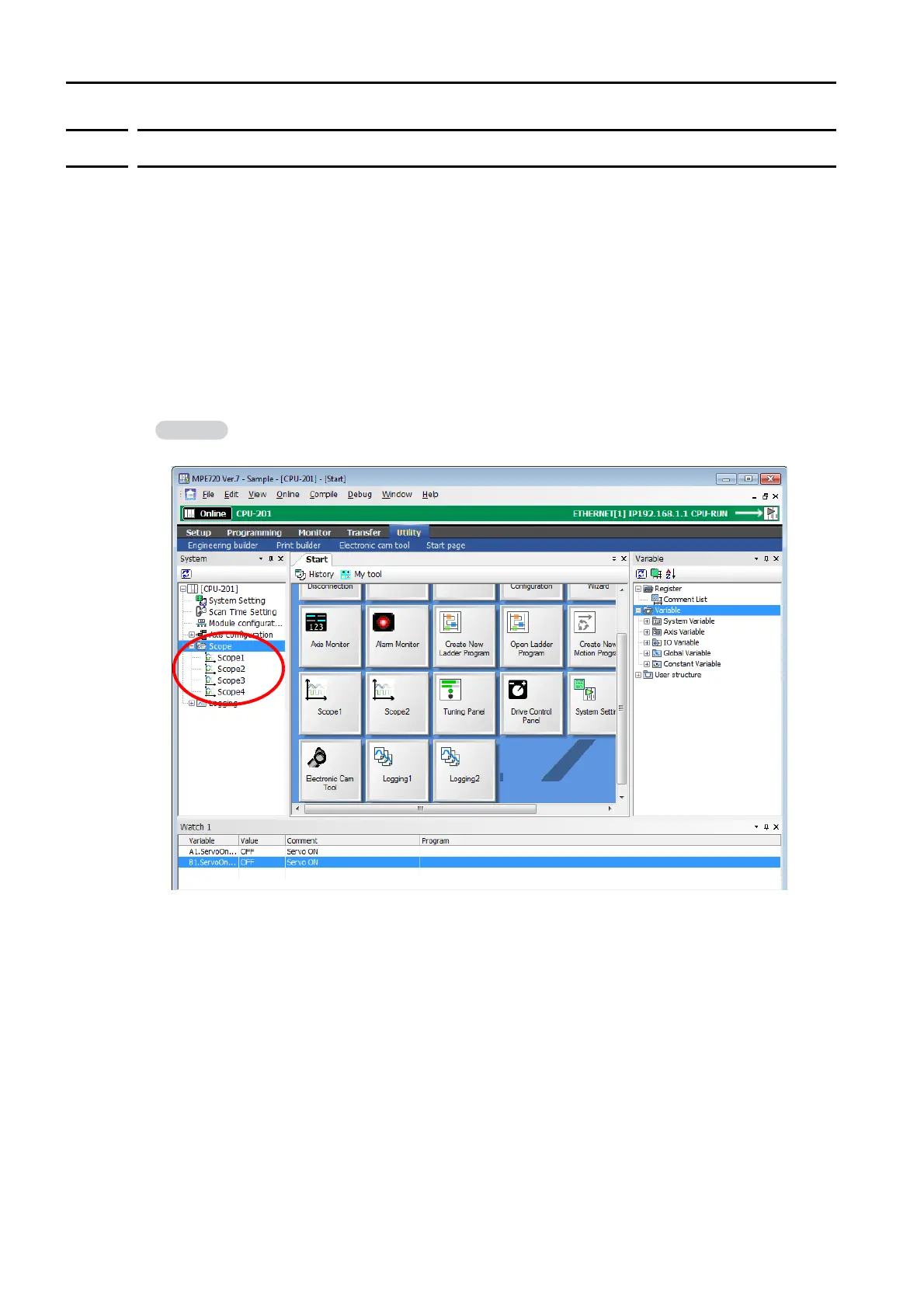

Double-click Scope 1, Scope 2, Scope 3, or Scope 4 in the System Pane of MPE720 version
7, and then click the XY Trace Button in the Trace Type Dialog Box.
Alternatively, click the Scope 1, Scope 2, Scope 3, or Scope 4 Button in the My Tool Tab
Page, and then click the XY Trace Button in the Trace Type Dialog Box.
You can also start it from the Launcher by selecting Monitor − Trace, and then clicking the XY
Trace Button in the Trace Type Dialog Box.
By default, only the Scope 1 and Scope 2 Buttons are displayed in the My Tool Tab Page.
