YASKAWA MP3000 Series - EXIOIF Module Connections

2.1 MP3200 Installation
2.1.8 EXIOIF Module Connections
2-24

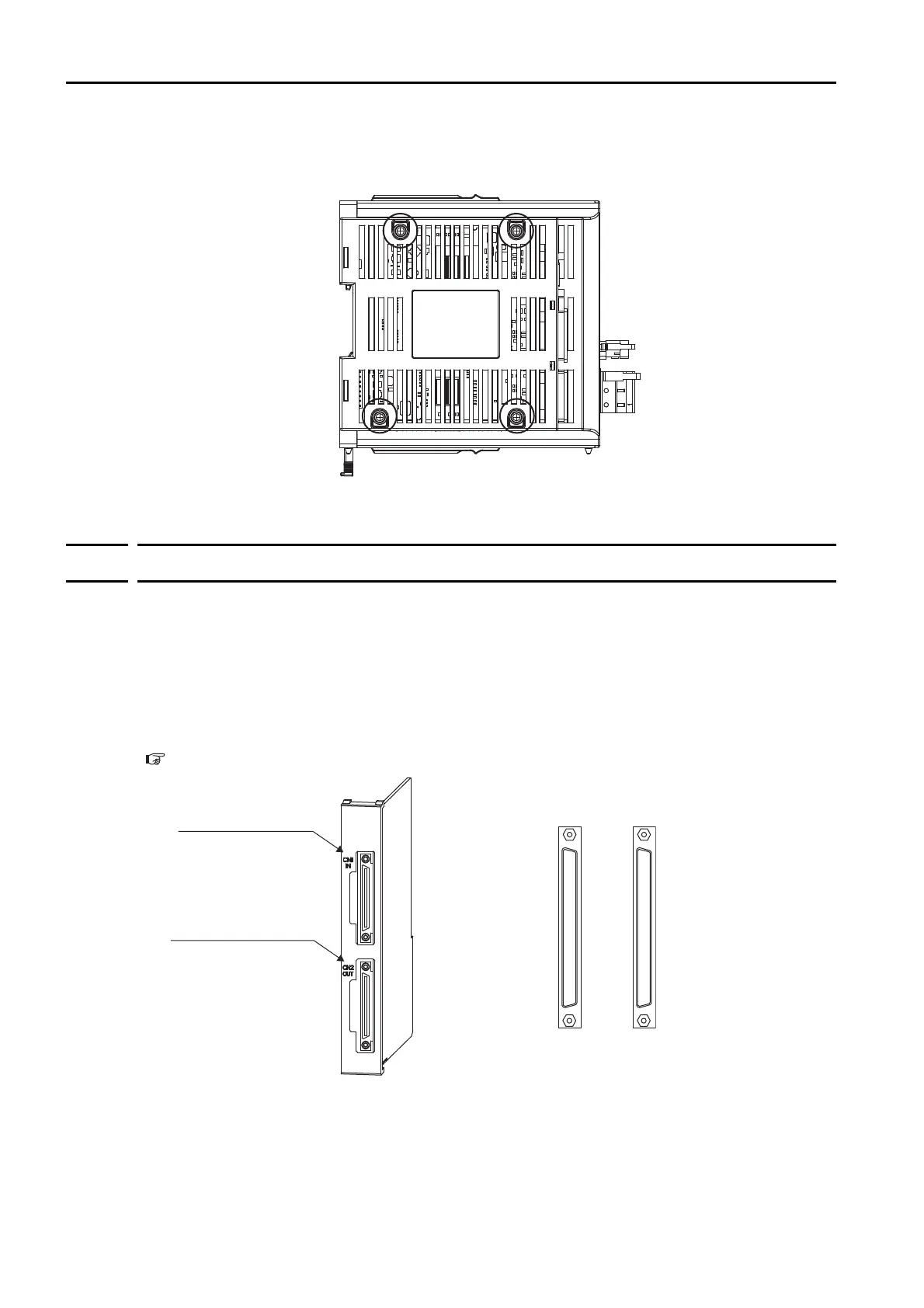

3. Use the screws provided with the Rack Expansion Interface Unit to secure the Unit to
the Power Supply Unit in the four places shown in the following figure. (The tightening
torque is 0.32 N·m ±10%.)
2.1.8 EXIOIF Module Connections
You can use an EXIOIF Module to add up to four Expansion Racks to the MP3000-series Base
Unit.
Connectors
The connectors on the EXIOIF Module are shown in the following figure.
These connectors are used to add MP2000-series Base Units.
Use the standard cables. Refer to the following section for information on the standard cables.
Standard Cables (page 2-25)
CN2
OUT
CN1
IN
EXIOIF
External input connector
External output connector
