2.1 MP3200 Installation
2.1.8 EXIOIF Module Connections
2-25
2
Installation and Connections

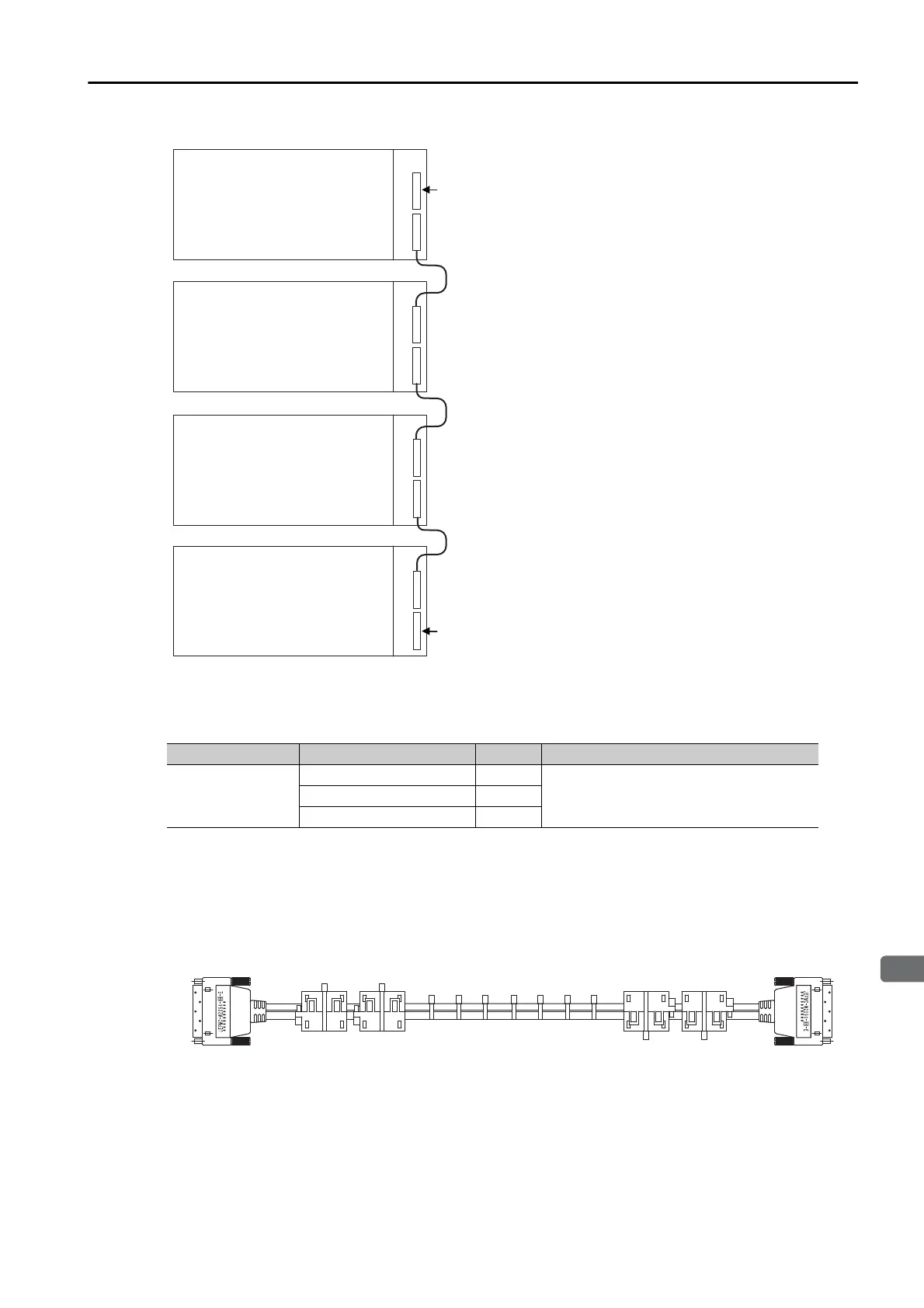

The connection method for the external I/O connectors is shown in the following figure.
Note: Attach the enclosed dust caps to the unused connectors ( in the above figure).
Standard Cables
Note: 1. Do not exceed 6.0 m for the total cable length when you add Racks.
2. Make all connections on a 1:1 basis.
Standard Cable Appearance
JEPMC-W2094-
Name Model Length Description
Cables with
Connectors on
Both Ends
JEPMC-W2094-A5 0.5 m
Shielded cables, equivalent to UL 20276,
0.05 mm
2
(AWG30), four ferrite cores
attached
JEPMC-W2094-01 1.0 m
JEPMC-W2094-2A5 2.5 m
EXIOIF
EXIOIF
EXIOIF
EXIOIF
Rack 1
Rack 2
Rack 3
Rack 4
CN1
IN
CN2
OUT
CN1
IN
CN2
OUT
CN1
IN
CN2
OUT
CN1
IN
CN2
OUT
