5.1.6 Cross Reference Panes
Cross referencing allows you to check whether a register is used in a program, and where it is
used.
The search results indicate output registers in red, input registers in blue.
If the value of a register is different from its set value, it means that the value of the register may
have been overwritten somewhere in the program. In this case, you can search for the registers
using cross references. Check the registers displayed in red, and locate the program that is
overwriting them.

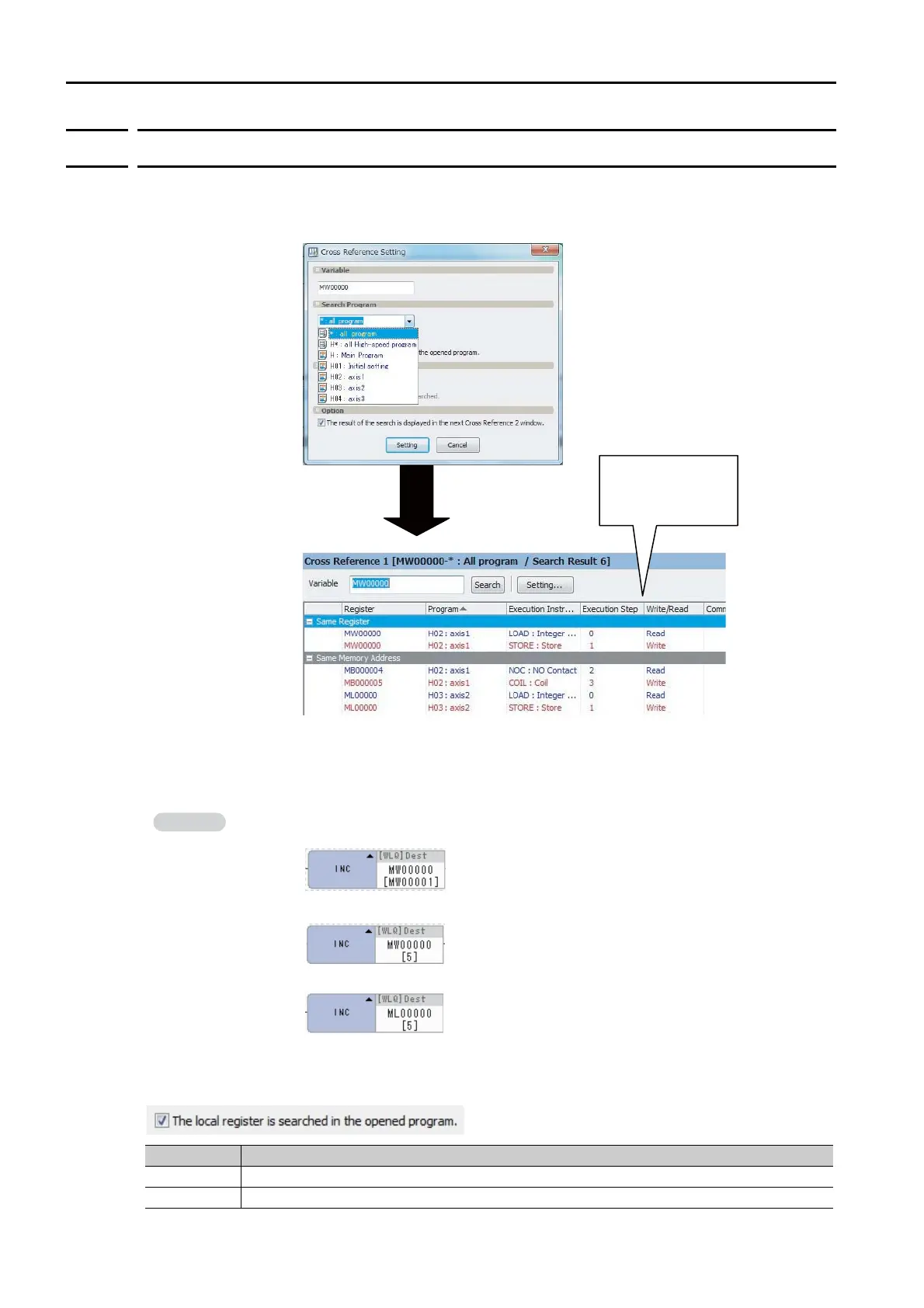

The following cross-reference criteria can be set. The following tables describe the check
boxes.
The following section describes the search operation on arrays.
1. Register[Register] Arrays
2. Register[Constant] Arrays
3. Register[Constant], LONG Arrays
Check box Search Method
Selected. A search is made for local registers (D registers) in the active drawing in the MPE720 Window.
Not selected. A search is made for local registers (D registers) in the specified drawing.
Cross referencing executed.
Search Results Display
Red: Output registers
Blue: Input registers
Example

MW00000 and MW00001 are subject to searching.

MW00000 and MW00005 are subject to searching.
ML00000 and ML00010 are subject to searching.

