4.1 User Program Types and Execution Timing
4.1.4 The M-EXECUTOR
4-32
M-EXECUTOR Detail Settings
The detailed settings for the M-EXECUTOR are performed on the Module Configuration Tab
Page and the Detail Definition Dialog Box.
This section provides the procedures to display this tab page and dialog box, and describes
their contents.

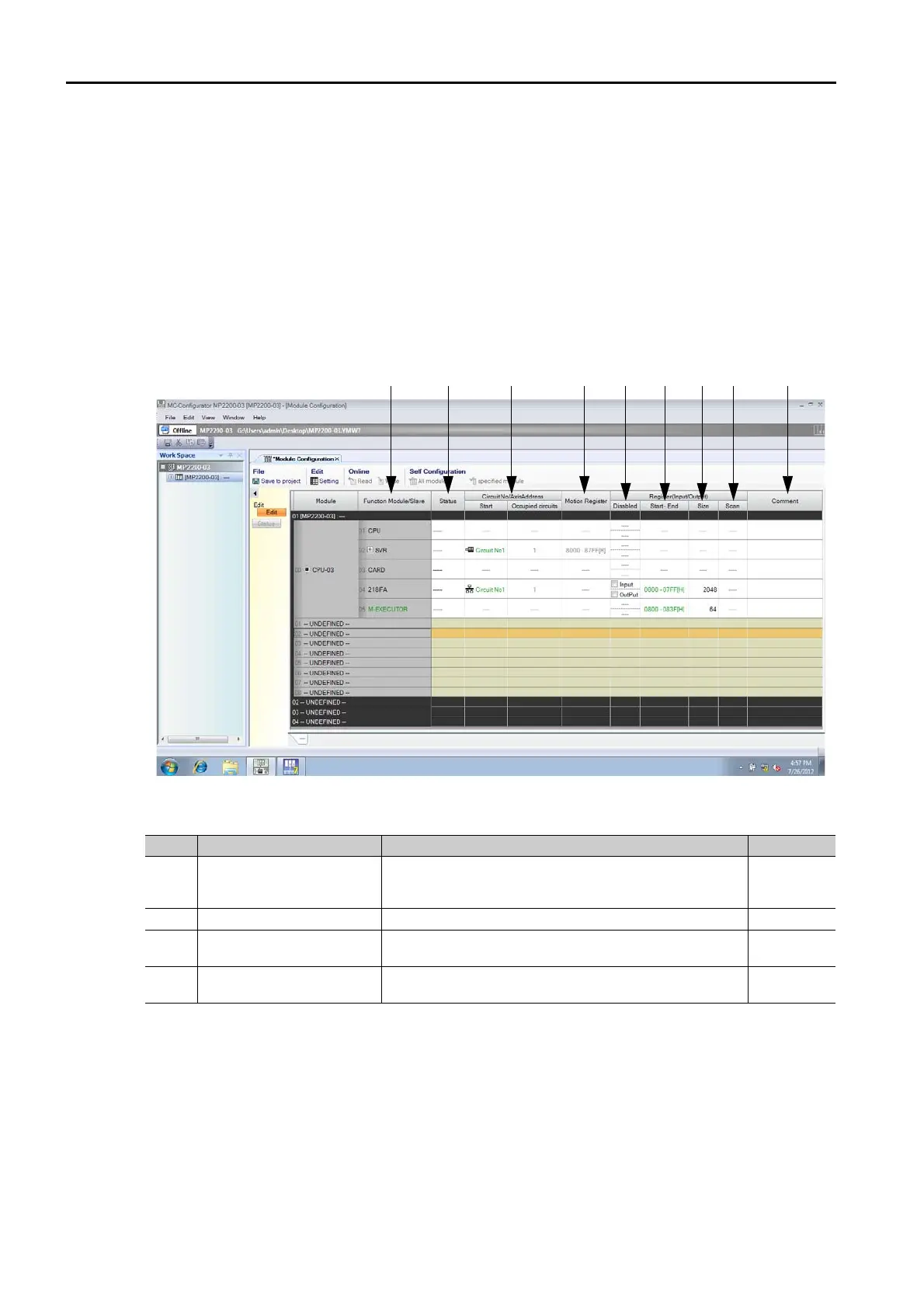

Module Configuration Definition Tab Page
Use the following procedure to display the Module Configuration Definition Tab Page.
• Click the Module Configuration Icon from the Start Tab Page.
The information on the M-EXECUTOR is displayed in row 05 of the Function Module/Slave Col-
umn.
The following table describes the M-EXECUTOR items that are displayed on the Module Con-
figuration Definition Tab Page.
No. Item Display/Setting Item Editing
Function Module/Slave
Displays whether the M-EXECUTOR is enabled.
• UNDEFINED: Disabled
• M-EXECUTOR: Enabled
Possible
Status Displays the status of the M-EXECUTOR. Possible
Circuit No./Axis Address
Not used.
“----” is always displayed.
Not possi-
ble
Motion Register
Not used.
“----” is always displayed.
Not possi-
ble
Continued on next page.
