5.3 Monitoring Machine Operation
5.3.2 Alarm Monitor
5-41
5
Debugging Programs
 Status
If an alarm or a warning occurs, the alarm or warning status will be shown on the Alarm Monitor
Tab Page in the following way:
Displaying Alarms and Warnings
If an alarm or a warning occurs, double-click the axis where the alarm or warning occurred to
display the Alarm/Warning Dialog Box.
Troubleshooting Alarms and Warnings
When an alarm occurs, the status will change to . When a warning occurs, the sta-
tus will change to .
Click the status indicator to display the Alarm/Warning Dialog Box to see details on the alarm
or warning.
This section uses a SERVOPACK Communications Error as an example to describe what to do
when an alarm or warning occurs.
Icon Name Function
No Alarm No alarm or warning has occurred.
Occurred Alarm: An alarm has occurred.
Occurred A warning has occurred.

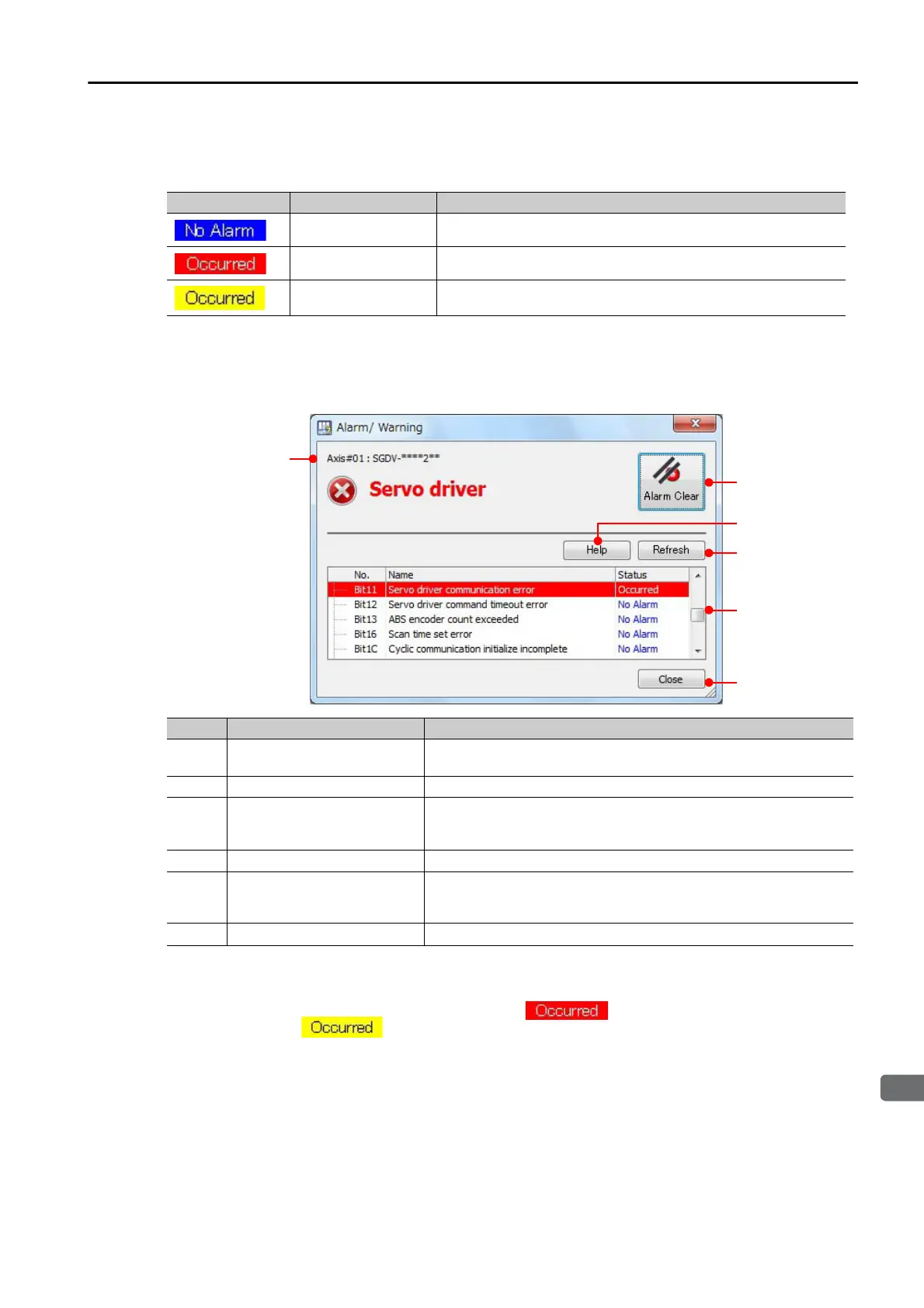

No. Item Function

Axis name
This row displays the name of the axis. The display takes the fol-
lowing format: Assigned axis number : Comment : Type.

Alarm Clear This button clears the alarm.

Help
This button displays the manual related to the alarm that occurred:
MP3000 Series MP3200/MP3300 Troubleshooting Manual (Manual
No.: SIEP C880725 01).

Refresh This button updates the contents of the Alarm/Warning Dialog Box.

Alarms/warnings display
Displays the parameter name, the bit number, and the status.
This area shows the alarm and warning information bit by bit for
each Motion Module.

Close This button closes the Alarm/Warning Dialog Box.






