2.1 MP3200 Installation
2.1.5 Replacing and Adding Optional Modules
2-13
2
Installation and Connections

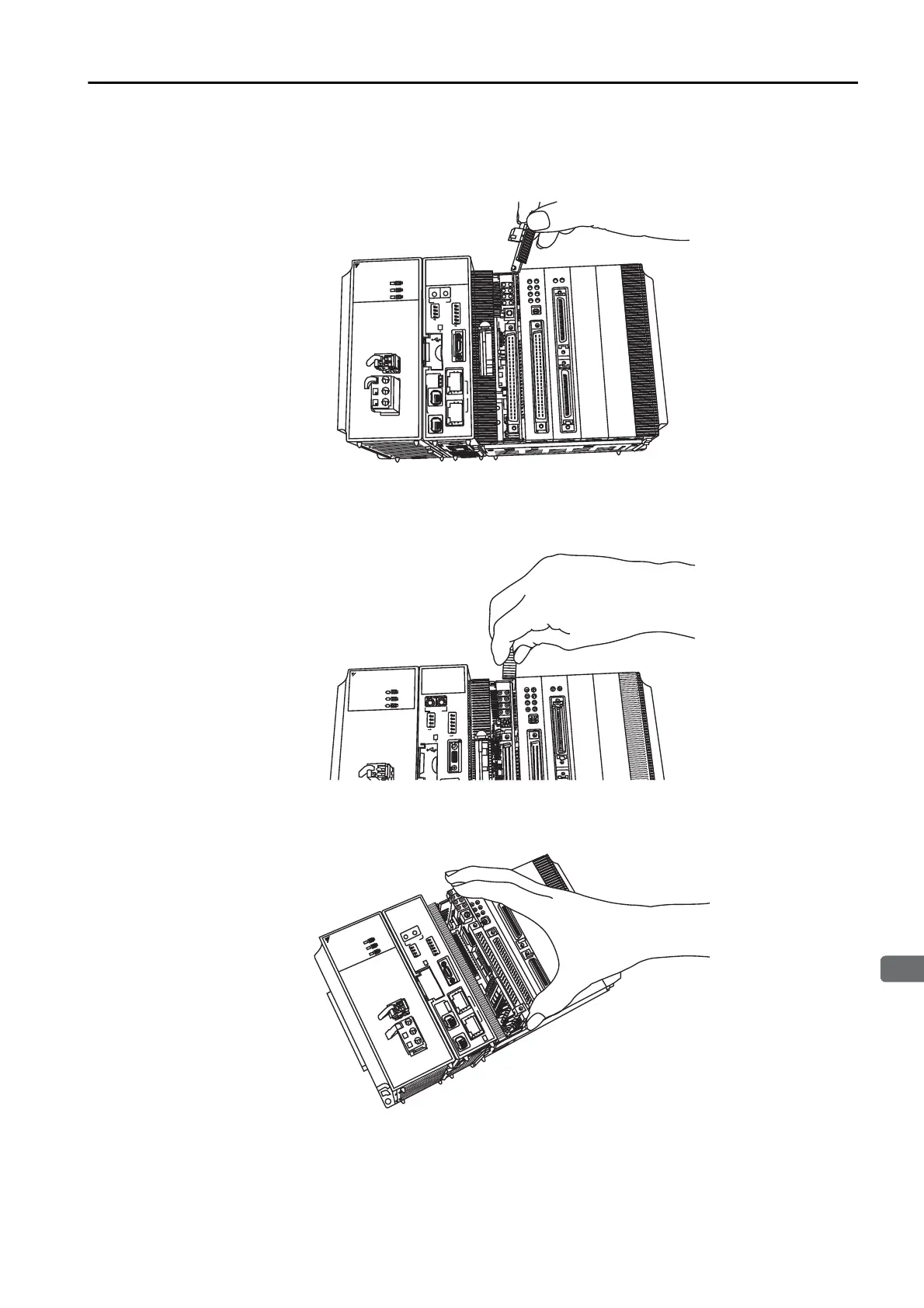

4. Pull the top of the Optional Module panel toward you and remove it. A notch on the
Optional Module will be visible from the gap of the panel. Hook the round knob on the
tool into the notch in the Optional Module.
5. Hold the center of the tool, and turn it around the round knob while pushing it toward
the back to disconnect the Module from the Mounting Base connectors. Then, pull the
Module forward.
6. Hold the Optional Module at the top and bottom and pull it straight out. Hold the edges
of the Module and avoid touching the components on the Module.
Note: Put the Module that you removed into the bag that was supplied when you purchased it and store the
Module in this bag.
