5.4 d: Reference Settings
146 YASKAWA ELECTRIC SIEP C710606 44B YASKAWA AC Drive T1000V Technical Manual
■ d2-05: Frequency Reference 2 Lower Limit
Sets the lower limit for the frequency reference value that is input from frequency reference source 2 (b1-15). The limit
applies to any source selected in parameter b1-15. The value is set as a percentage of the maximum output frequency.
If a lower reference than this value is input, the drive will run at the d2-05 level. If the drive is started with a lower
reference than d2-05, it will accelerate up to d2-05.
◆ d7: Offset Frequency
■ d7-01 to d7-03: Offset Frequency 1 to 3
Three different offset values can be added to the frequency reference. They can be selected using digital inputs
programmed for Offset frequency 1, 2 and 3 (H1- = 44, 45, 46). The selected offset values are added if two or all
three inputs are closed at the same time.
Note: This function can be used to replace the “Trim Control” function (H1- = 1C/1D) of earlier Yaskawa drives.

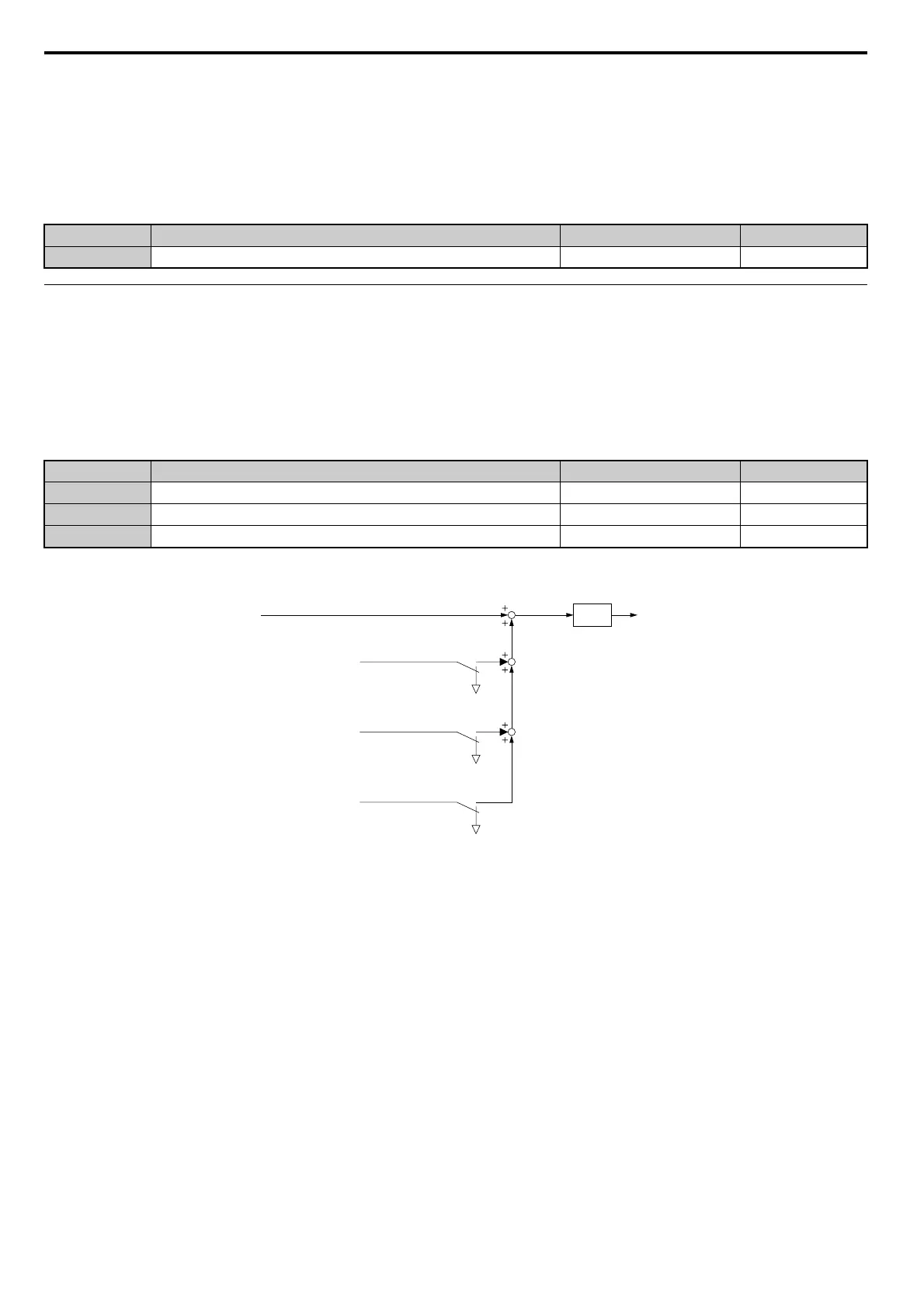

Figure 5.32 illustrates the Offset Frequency Function.
Figure 5. 32
Figure 5.32 Offset Frequency Operation
No. Parameter Name Setting Range Default
d2-05 Frequency Reference 2 Lower Limit 0.0 to 110.0% 0.0%
No. Parameter Name Setting Range Default
d7-01 Offset Frequency 1 -100.0 to 100.0% 0%
d7-02 Offset Frequency 2 -100.0 to 100.0% 0%
d7-03 Offset Frequency 3 -100.0 to 100.0% 0%
Frequency
reference
Offset Frequency 1 [d7-01]
(Signed)
Offset Frequency 2 [d7-02]
(Signed)
Offset Frequency 3 [d7-03]
(Signed)
Multi-function
input (44) = on
Multi-function
input (45) = on
Multi-function
input (46) = on
SFS
Frequency
reference after
soft starter
