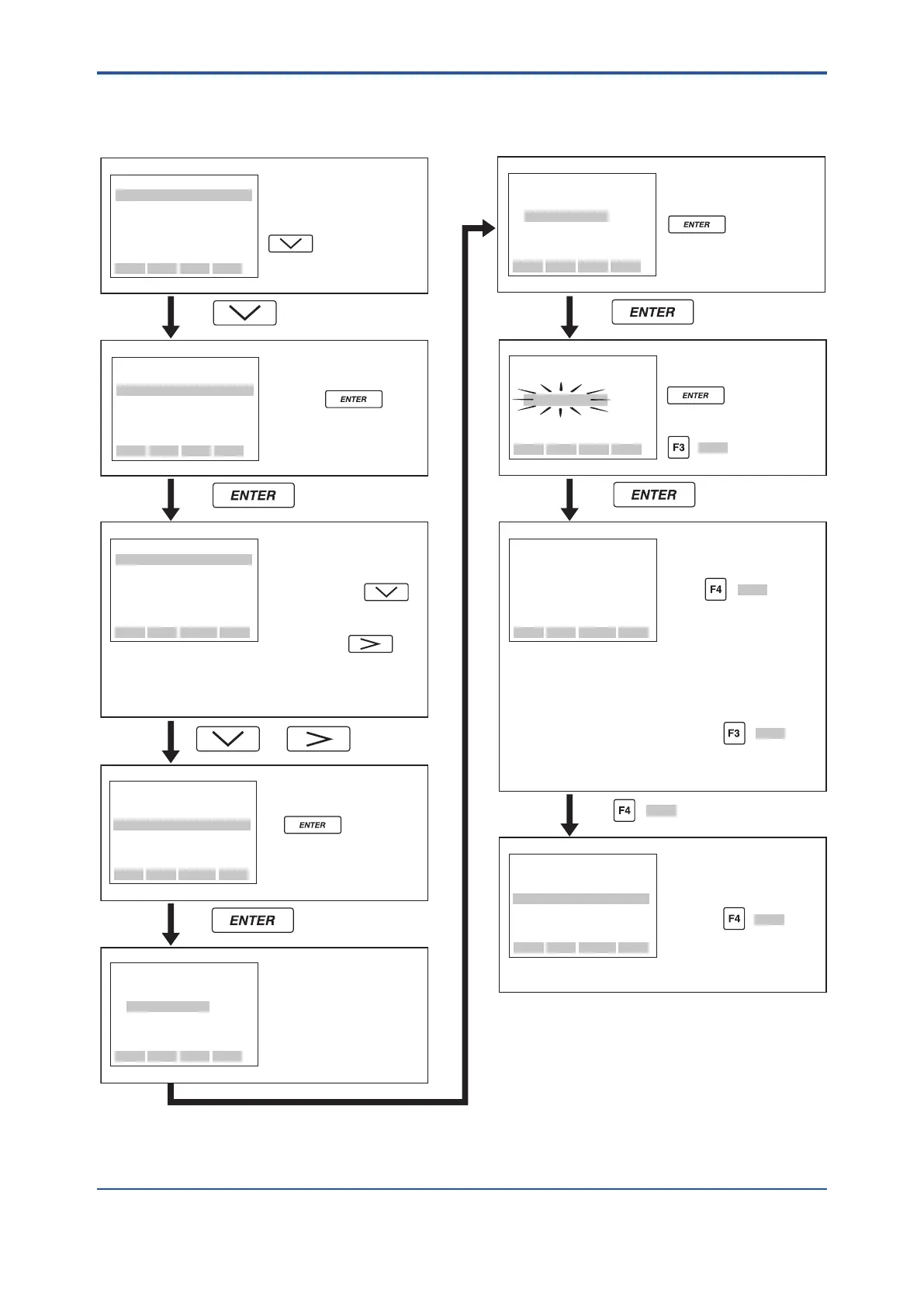

7.3.2 BT200 Setting of Numeric-Type Data: Flow rate span
Inthisexample,theowratespanspeciedbythenumeric-typeparameterB23: Flow Span is changed from
100.000 l/min. to 120.000 l/m.
or
In this mode, new values can
be entered into the
highlighted field using the
alphanumeric keys.
In this example, the value
“120” is entered, press the
key.
F0710.ai
MENU
A:DISPLAY
B:EASY SETUP
C:BASIC SETUP
D:TOTAL SET
E:PULSE SET
F:STATUS FUNC
HOME SET ADJ ESC
MENU
A:DISPLAY
B:EASY SETUP
C:BASIC SETUP
D:TOTAL SET
E:PULSE SET
F:STATUS FUNC
HOME SET ADJ ESC
PARAMETER
B10:LANGUAGE
English
B20:FLOW DAMPING
5.0s
B21:FLOW UNIT
l(Liter)
DATA DIAG PRNT ESC
PARAMETER
B22:TIME UNIT
/min
B23:FLOW SPAN
100.000l/min
B24:FLOW DECIMAL
l
DATA DIAG PRNT ESC
SETTING
B23:FLOW SPAN
120.000l/min
FEED NO OK
PARAMETER
B22:TIME UNIT
/min
B23:FLOW SPAN
120.000l/min
B24:FLOW DECIMAL
l
DATA DIAG PRNT ESC
SETTING
B23:FLOW SPAN
100.000l/min
+ 0
DEL CLR ESC
SETTING
B23:FLOW SPAN
100.000l/min
+ 120
DEL CLR ESC
SETTING
B23:FLOW SPAN
100.000l/min
+ 120
PRINTER OFF
F2:PRINTER ON
FEED POFF NO
After moving the cursor to
B23: FLOW SPAN, press
the key to access
Setting Screen (Parameter
Replacement Mode).
When Menu Screen (Major
Item Parameter Search
Mode) has been entered as
shown here, press the
key to move to
B: EASY SETUP.
When the cursor has been
moved to B: EASY SETUP.
Press the key to
access Parameter Screen
(Sub-Item Parameter
Search Mode).
The data will begin to flash
on and off: Press the
key once again
to confirm your entry.
In case of cancel, press the
( ) key.
NO
The changed setting for
flow rate span can now be
confirmed.
Press the ( ) key
to return to Menu Screen
(Major Item Parameter
Search Mode).
ESC
In the parameter list, the
parameter for setting of flow
rate span is B23: FLOW
SPAN. Press the
key four times to move the
cousor to B23.
(Note that the key
can be used to move the
cursor to the top of the next
screen.
The value for flow span has
been changed to
“120.000 l/min.”
Press ( ) key to
exit Setting Screen
(Parameter Replacement
Mode), and then the display
returns to Parameter
Screen (Sub-Item
Parameter Search Mode) of
Menu B items.
In case of redo of setting,
press the ( ) key
to return the Setting Screen
(Parameter Replacement
Mode).
OK
NO
( )
OK
