(3) Assembling the Display Unit
(1) Align the display unit in a straight with its
connector located its backside facing the
connectorofamplierassemblyandthenmake
the required connection.
(2) Secure the display unit using its four mounting
screws.

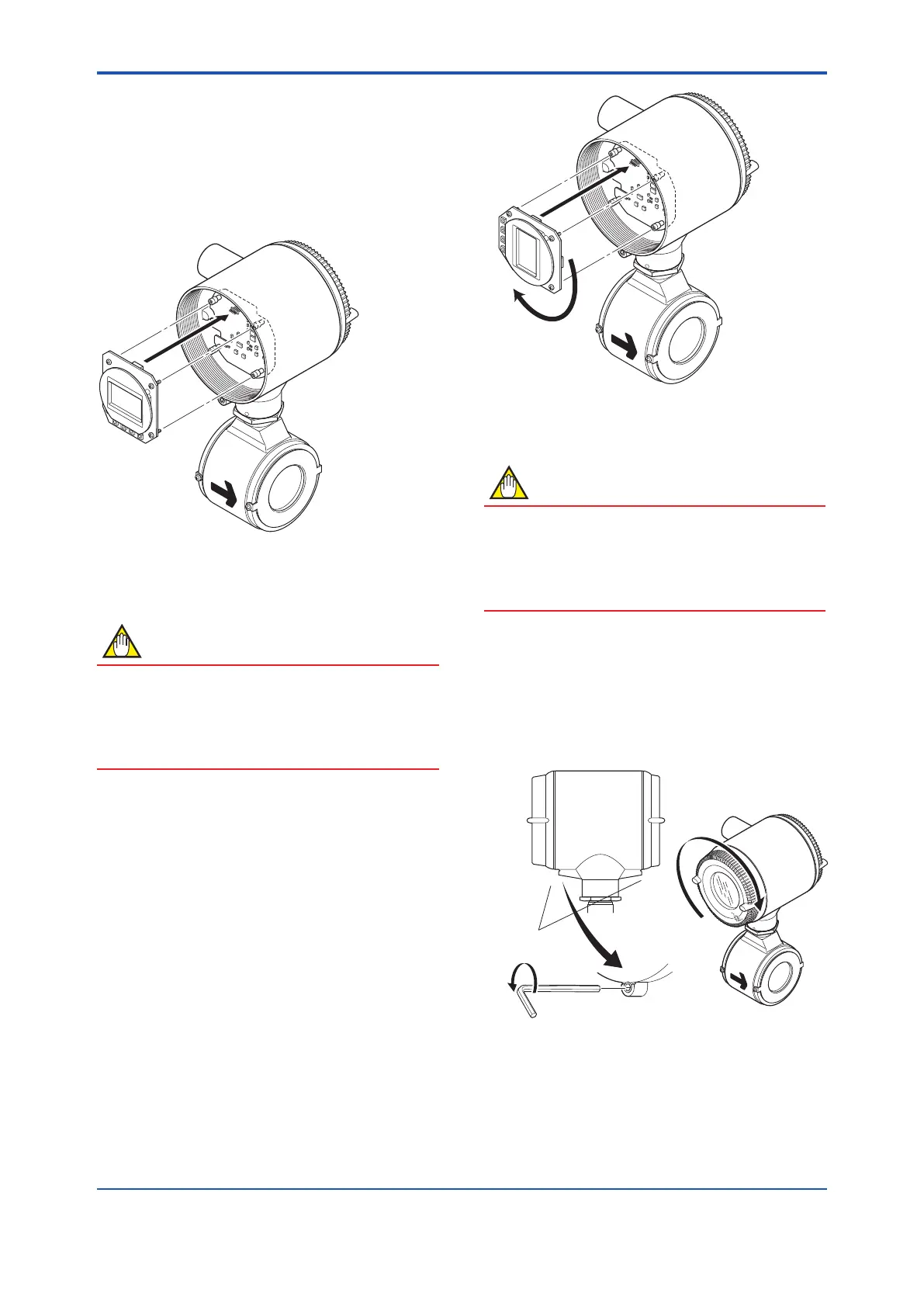

F1104.ai
Figure 11.2.2 Removing and Assembling the Display
Unit
NOTE
Secure to display unit steadily when attaching to
theamplierassembly.
The instrument may damage caused by
vibration of piping, etc… under its operation if the
screwing up work was not enough.
(4) Changing the Display Unit Orientation 90
Degrees
(1) Hold the display unit with your hand and
remove the four mounting screws.
(2) Remove the display unit carefully in a straight
without damaging the connector located its
backside.
(3) Turn the display unit 90 degrees clockwise and
conrmtheassemblingposition.
(4) Align the display unit in a straight with its
connector located its backside facing the
connectorofamplierassemblyandthenmake
the required connection.
(5) Secure the display unit using its four mounting
screws.
F1105.ai
Turn the display
unit 90 degrees
clockwise
Figure 11.2.3 Assembling the Display Unit
NOTE
Secure to display unit steadily when attaching to
theamplierassembly.
The instrument may damage caused by
vibration of piping, etc… under its operation if the
screwing up work was not enough.
(5) Installing the Cover
(1) Installthecovertotheowmeterbyturningit
in the direction of the arrow as shown below.
Tighten cover locking screws counterclockwise
using a hexagonal wrench (nominal size 3) to
lock the cover (in case of explosion proof type).
F1106.ai
Cover locking
screws
Front
side
(1) (2)
Explosion proof type Both Explosion proof and
General purpose types
Figure 11.2.4 Installing the Display Cover
