Measurement
5
Measuring using Gate Sampling
Setting the Sampling Interval Time
1.
Press SETUP.
2.
Press the MORE 1/2 soft key.
3.
Press the PLS LIGHT MEASURE soft key.
4.

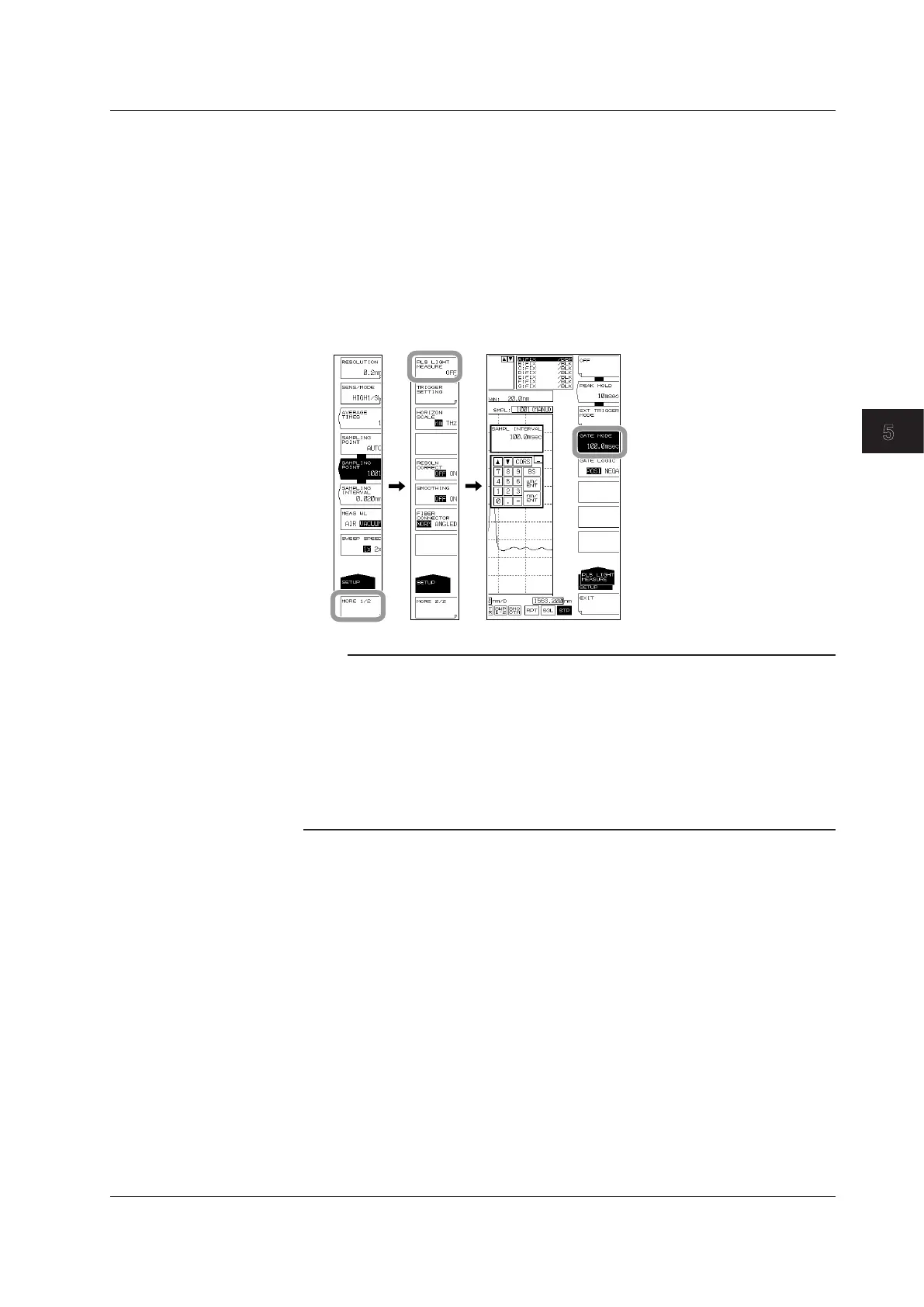

Press the GATE MODE soft key. The sampling interval time setting screen
appears.
5.
Enter the sampling interval using the rotary knob, arrow keys, or numeric keypad.
6.
Press ENTER.
Note
The GATE MODE soft key will be unavailable if the following settings are used. To enable the
soft key, change the settings.
• Unavailable when SWEEP MODE is set to 2x. Available when it is set to 1x. See section 5.10.
• Unavailable when CHOP MODE of SENS/MODE is not set to OFF. Available when it is set
to OFF. See section 5.9.
• Unavailable when AVERAGE TIMES is not set to 1. Available when it is set to 1. See section
5.11.
• Unavailable when TRIG INPUT MODE of TRIGGER SETTING is set to SMPL ENABLE.
Available when it is set to SMPL TRIG. See section 5.16.
