YOKOGAWA AQ6370D User Manual

6-6
IM AQ6370D-01EN
Explanation
Zoom Center Wavelength
The setting range is 600.000 to 1700.000 nm.
If you press the COARSE key you can use the rotary knob or arrow keys to change the
numerical value in 1 nm steps. The value changes in 0.1 nm steps if you do not press the
COARSE key.
Wavelength Display Sweep Width
The available setting range is 0, and 0.1 to 1100.0 nm.
If you press the COARSE key you can use the rotary knob or arrow keys to change the
numerical value in 1-2-5 steps. The value changes in 1 nm steps if you do not press the
COARSE key.
Zoom Start Wavelength
The setting range is 50,000 to 1699.950 nm.
If you press the COARSE key you can use the rotary knob or arrow keys to change the
numerical value in 1 nm steps. If you do not press it, the value changes in 0.1 nm steps.
Zoom Stop Wavelength
The setting range is 600.050 to 2250.000 nm.
The value changes in 1 nm steps if you press the COARSE key. If you do not press it,
the value changes in 0.1 nm steps.

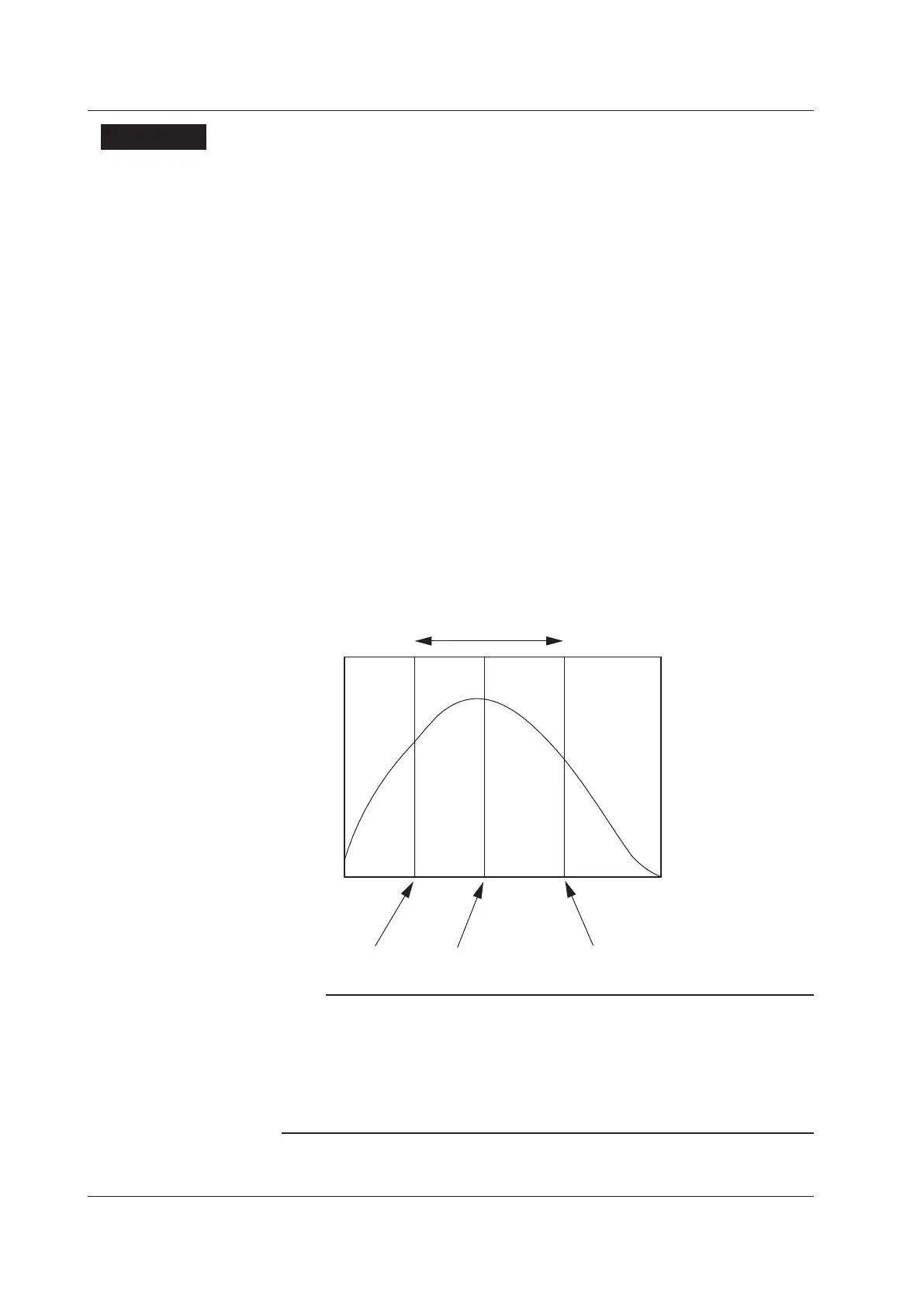

Zoom stop wavelengthZoom start wavelength
Waveform display sweep width
Zoom center wavelength
Note
• Changing the zoom center wavelength changes the zoom start wavelength and zoom stop
wavelength. The waveform display sweep width does not change.
• Changing the wavelength display sweep width changes the zoom start wavelength and
zoom stop wavelength. The zoom center wavelength does not change.
• When the zoom start or stop wavelength is set, one wavelength becomes fixed, and this
changes the value of the wavelength display sweep width. In addition, the zoom center
wavelength value is also changed at the same time.
6.1 Zooming In/Out on Waveforms
