6.9 Marker Display
Setting the Moving Marker Level to the Reference Level

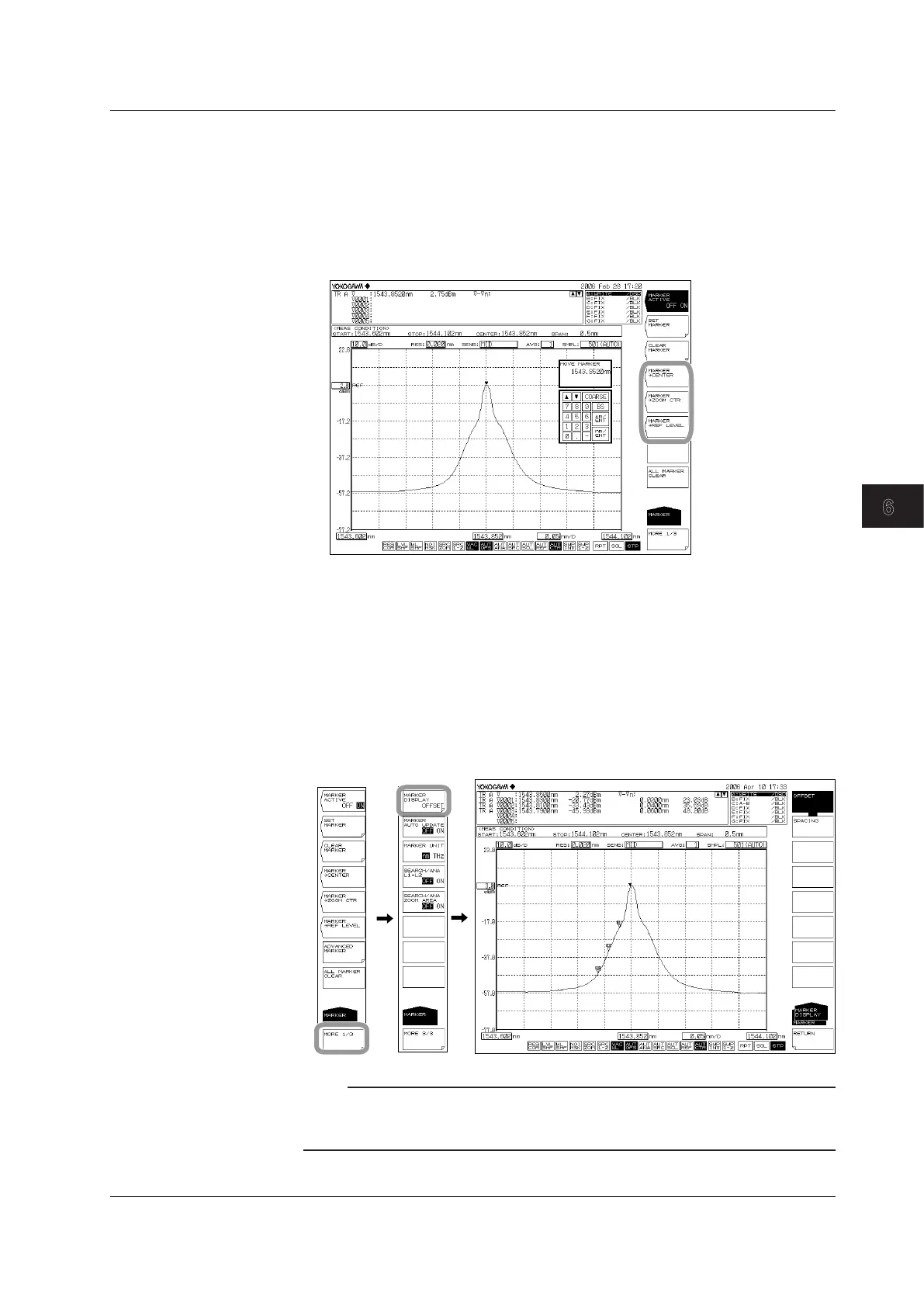

With the moving marker displayed, press the MARKER-> REF LEVEL soft key.
The reference level setting screen and setting value are displayed. For information
on the reference level, see section 5.4, “Reference Level Setting.” You can also
rewrite the currently displayed waveform according to the modified reference
level.
The measurement center wavelength can be set by continuing in the DATA ENTRY section.
Setting Marker Difference Value Display
You can set the difference display for markers displayed in the data area to OFFSET or
SPACING.
1.
Press MARKER.
2.
Press the MORE soft key repeatedly until the MORE 3/3 menu is displayed.
3.
Press the MARKER DISPLAY soft key. The difference value display selection
menu is displayed.
4.
Press the OFFSET or SPACING soft key.
Note
When set to OFFSET, the difference between the moving marker and each fixed marker is
displayed. When set to SPACING, the difference between the moving marker and the smallest-
numbered fixed marker is displayed along with the difference from each of the fixed markers.
