Automatically Updating the Level Value of the Fixed Markers
The fixed marker’s level value is updated to track the waveform each time the displayed
waveform is updated.
1.
Press MARKER.
2.
Press the MORE soft key repeatedly until the MORE 3/3 menu is displayed.
3.

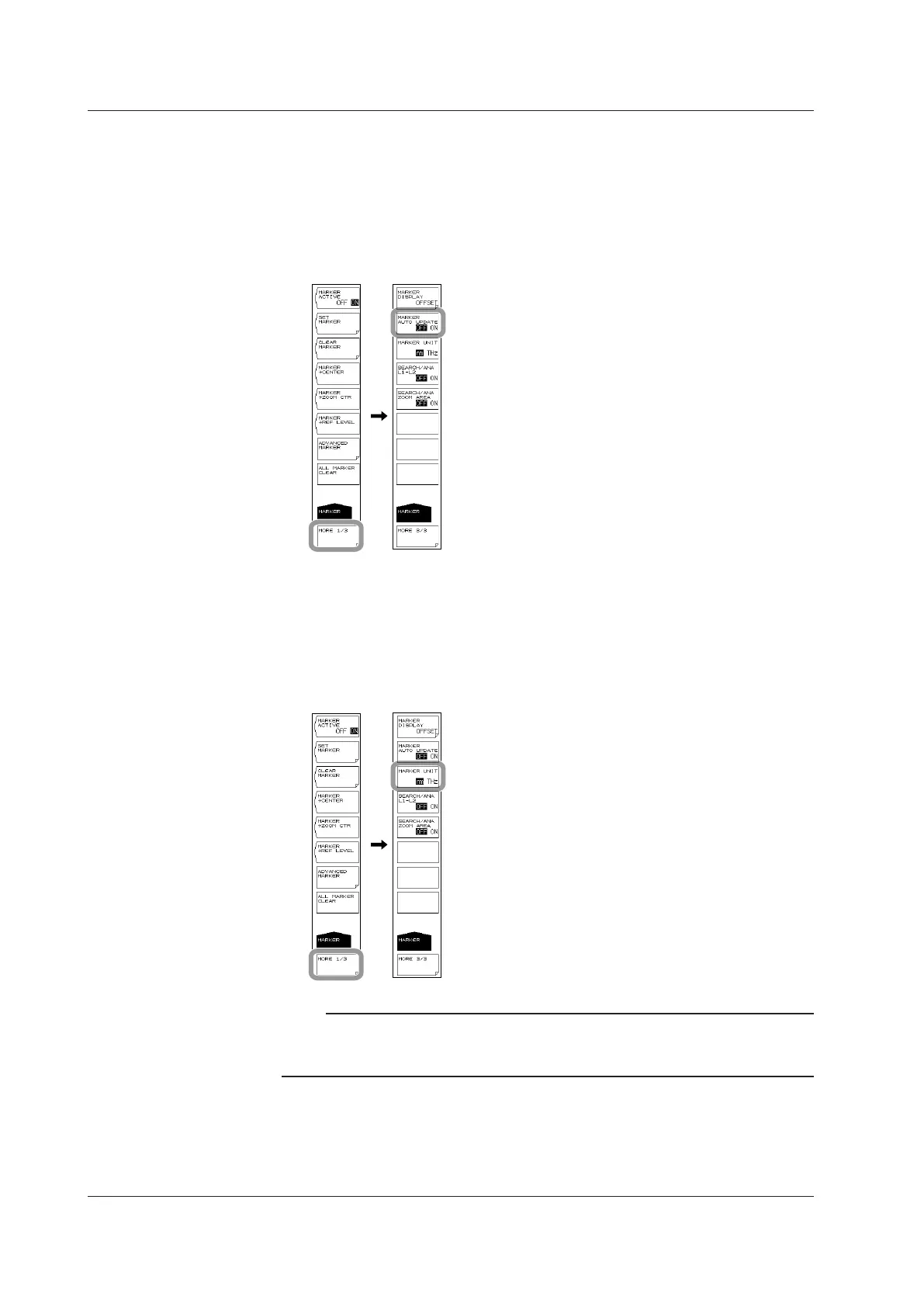

Press the MARKER AUTO UPDATE OFF ON soft key to select ON.
Setting the unit for the Marker Value
1.
Press MARKER.
2.
Press the MORE soft key repeatedly until the MORE 3/3 menu is displayed.
3.
Press the MARKER UNIT nm THz soft key. Each time you press the soft key, the
instruments toggle between nm and THz.
Note
The display unit for the marker value (wavelength or frequency) can be set independently of the
waveform display’s horizontal axis units (wavelength or frequency) that were specified using
the HORIZON SCALE nm/THz soft key.
