Waveform Display
6

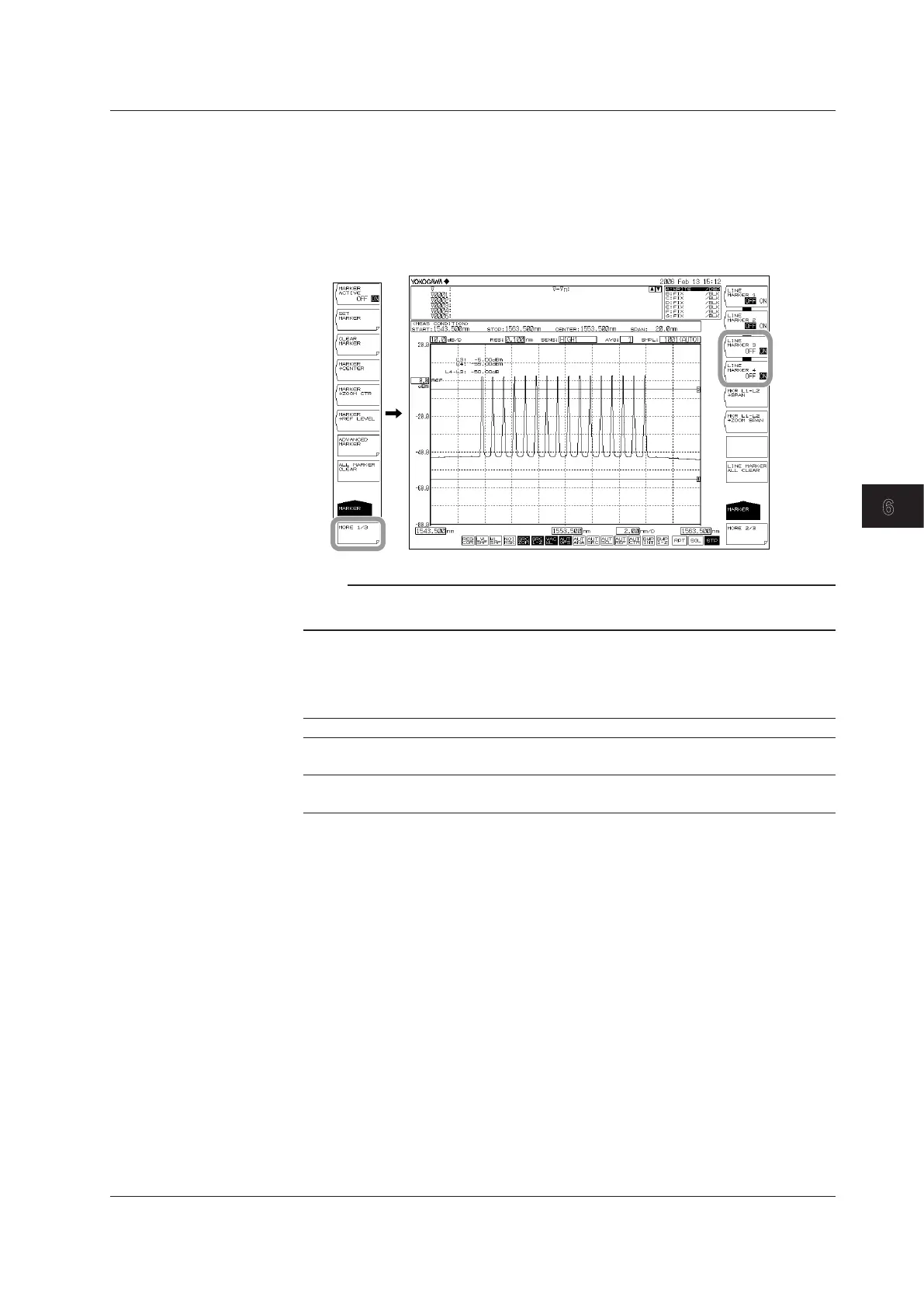

Displaying Level Line Markers
1.
Press the MARKER switch. The soft key menu for marker settings appears.
2.
Press the MORE 1/3 soft key.
3.
Press the LINE MARKER 3 OFF/ON or LINE MARKER 4 OFF/ON soft key to
turn the function ON. Line marker values are displayed in the upper left of the
waveform area.
Note
When level line markers 3 and 4 are displayed, the level difference (L4–L3) is shown below the
marker values.
Moving Level Line Markers
4.
Refer to the following and move the level line marker.
Direction Moving Procedure
Move upward Turn the rotary knob to the right.
Press the UP arrow key.
Move downward Turn the rotary knob to the left.
Press the DOWN arrow key.
Clearing All Cursors
Press the LINE MARKER ALL CLEAR soft key. All markers (wavelength line
markers and level line markers) displayed on the screen are cleared.
Displaying Advanced Markers
1.
Press MARKER. A soft key menu for marker settings appears.
2.
Press the ADVANCE MARKER soft key.
A soft key menu for advanced marker settings appears.
3.
Press the ADV MARKER ACTIVE OFF/ON soft key to turn the function ON.
4.
Press a soft key from MARKER 1 SELECT to MARKER 4 SELECT.
A soft key menu for setting the advanced marker type and marker target trace
appears.
