5.
Press the MARKER TRACE soft key. A soft key menu for selecting the marker
target trace appears.
6.
Press a soft key from TRACE A to TRACE G. The marker can now be displayed
on the selected waveform.
Note
• If the active trace is not set to DISP, you cannot use the advanced markers.
Set VIEW@DISP/BLANK under TRACE to DISP.
• If you press the ADV MARKER ACTIVE OFF/ON soft key to turn it on, the moving markers
(MARKER ACTIVE OFF/ON) described on page 6-26 will automatically turn off.
Likewise, if you turn on the moving markers (MARKER ACTIVE OFF/ON) described on page
6-26, the ADV MARKER ACTIVE OFF/ON soft key changes to OFF.
Displaying a Moving Marker
7.

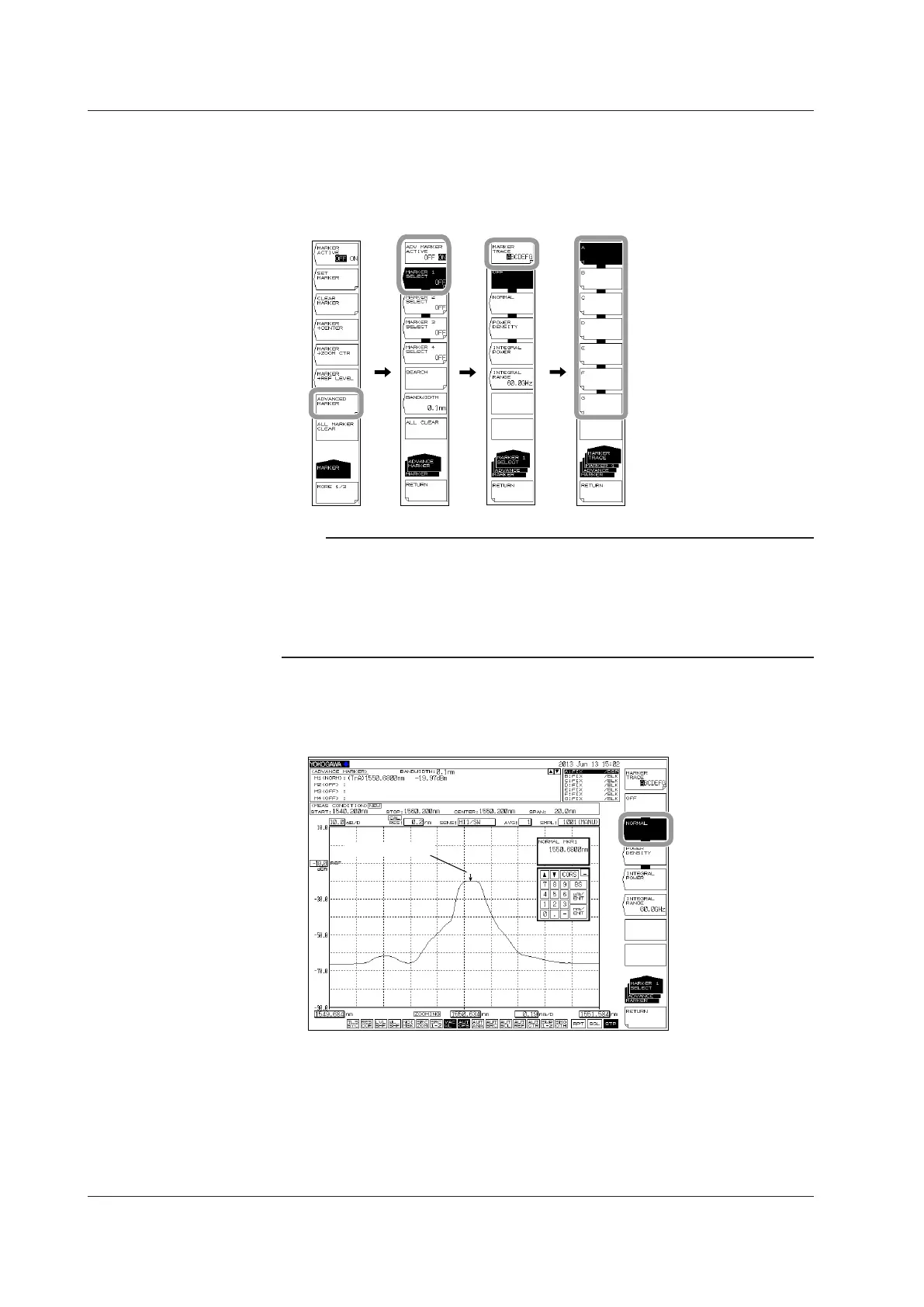

Press the NORMAL soft key. A moving marker appears on the waveform.
Moving marker
Displaying a Power Density Marker
7.
Press the POWER DENSITY soft key. A power density marker appears on the
waveform.
8.
Press the RETURN soft key. The menu returns to the previous level.
9.
Press the BANDWIDTH soft key. The normalization bandwidth setting menu
appears.
