Enter the normalization bandwidth value using the rotary knob, arrow keys, or
numeric keypad.
11.
Press ENTER.

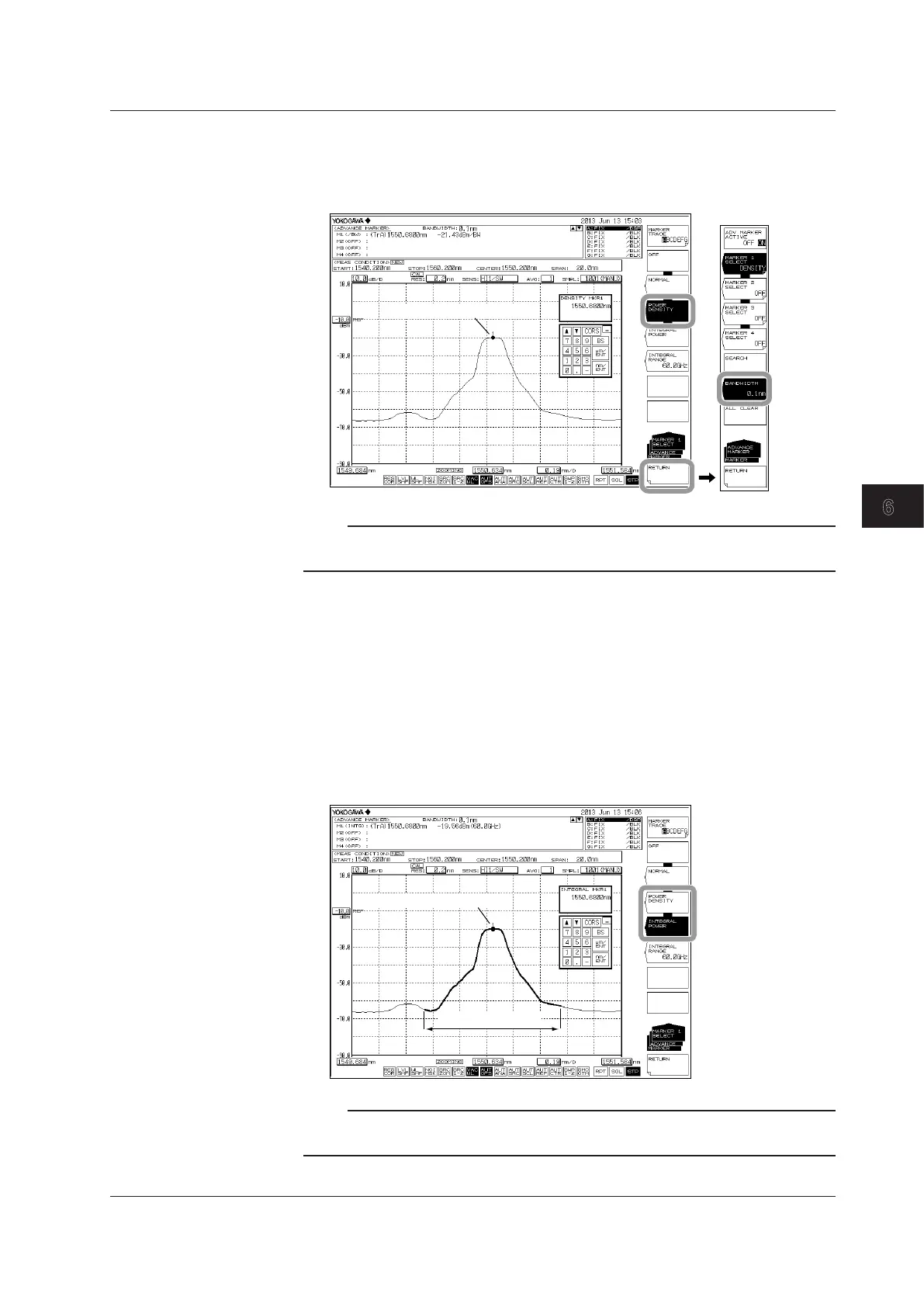

Power density marker
Note
A power density marker cannot be assigned to a differential waveform (based on LOG values)
or normalized waveform.
Displaying an Integrated Power Marker
7.
Press the INTEGRAL POWER soft key. A integrated power marker appears on
the waveform.
8.
Press the INTEGRAL RANGE soft key. The integration frequency range setting
menu appears.
9.
Enter the frequency range value using the rotary knob, arrow keys, or numeric
keypad.
10.
Press ENTER.
Integrated power marker
Integration range
Note
An integrated power marker cannot be assigned to a differential waveform (based on LOG
values) or normalized waveform.
