Moving an Advanced Marker
Enter the wavelength using the numeric keypad, and then press nm/ENTER.
Or, move the moving marker by referring to the information below.
Movement direction Movement method
Move to the right Turn the rotary knob to the right. Press the UP arrow key.
Move to the left Turn the rotary knob to the left. Press the DOWN arrow key.
Performing a Single Search Using an Advanced Marker
1.
Press MARKER. A soft key menu for marker settings appears.
2.
Press the ADVANCE MARKER soft key.
A soft key menu for advanced marker settings appears.
3.

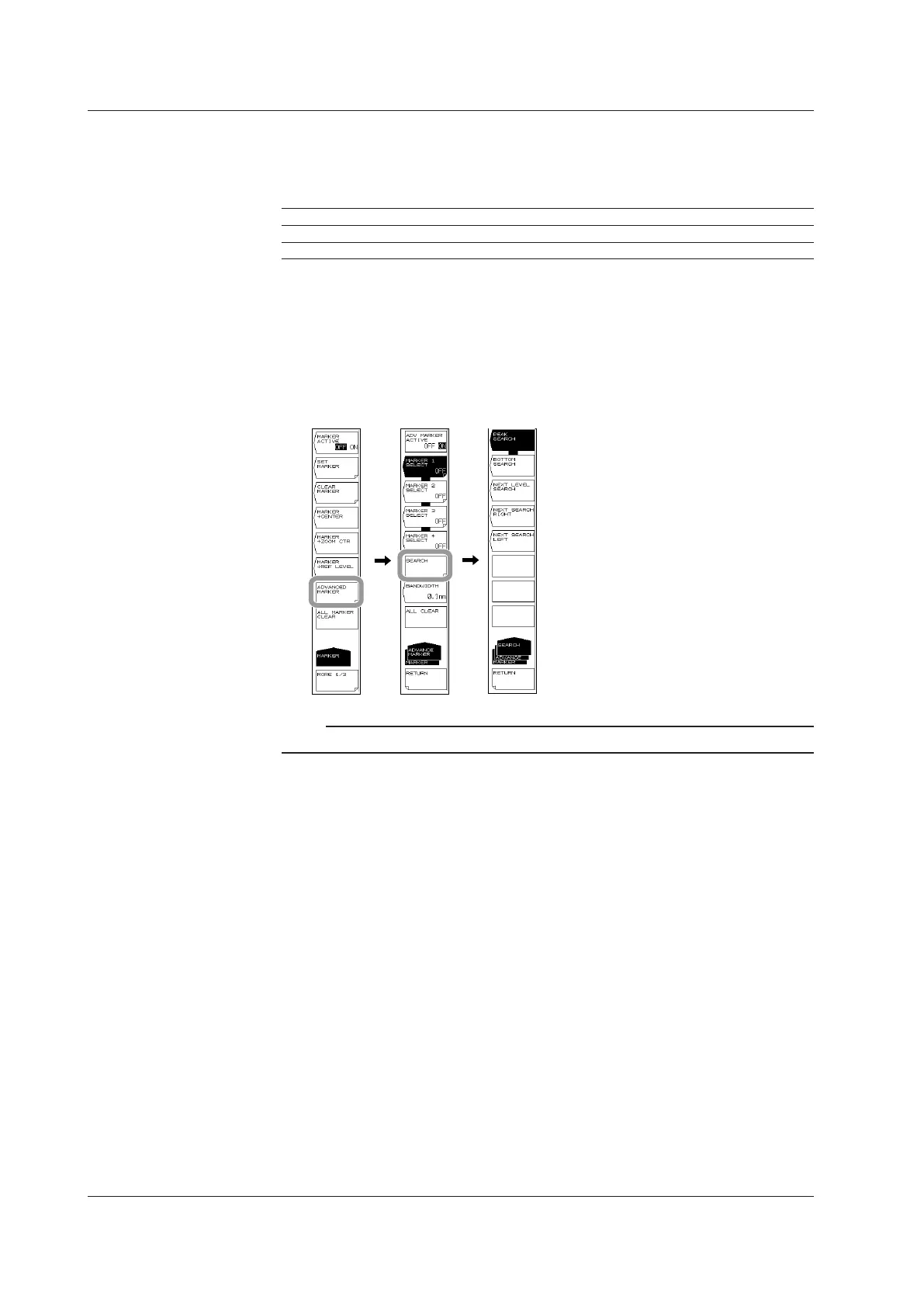

Press the SEARCH soft key. The soft key menu for searching appears.
Note
If the advanced marker is turned off, the SEARCH soft key will be unavailable.
Finding the Peak Wavelength/Level
4.
Press the PEAK SEARCH soft key. An advanced marker set to the peak (maximum
value) of the waveform, and the marker values are displayed in the data area.
Finding the Bottom Wavelength/Level
4.
Continuing from step 3, press the BOTTOM SEARCH soft key. An advanced
marker is set to the bottom (minimum value) of the waveform, and the marker
value is displayed in the data area.
Finding the Next Peak/Bottom Level
5.
When the advanced marker is displayed at the peak or bottom of the waveform,
press the NEXT LEVEL SEARCH soft key. On the marker trace waveform, the
moving marker at the peak or bottom is set to the next peak (local maximum
value) or bottom (local minimum value).
Finding the Level Peak/Bottom to the Right of the Advanced Marker
5.
When the advanced marker is displayed at the peak or bottom of the waveform,
press the NEXT SEARCH RIGHT soft key. The advanced marker is set to the
next peak (local maximum value) or bottom (local minimum value) on the right.
