Waveform Display
6
Finding the Level Peak/Bottom to the Left of the Advanced Marker
5.

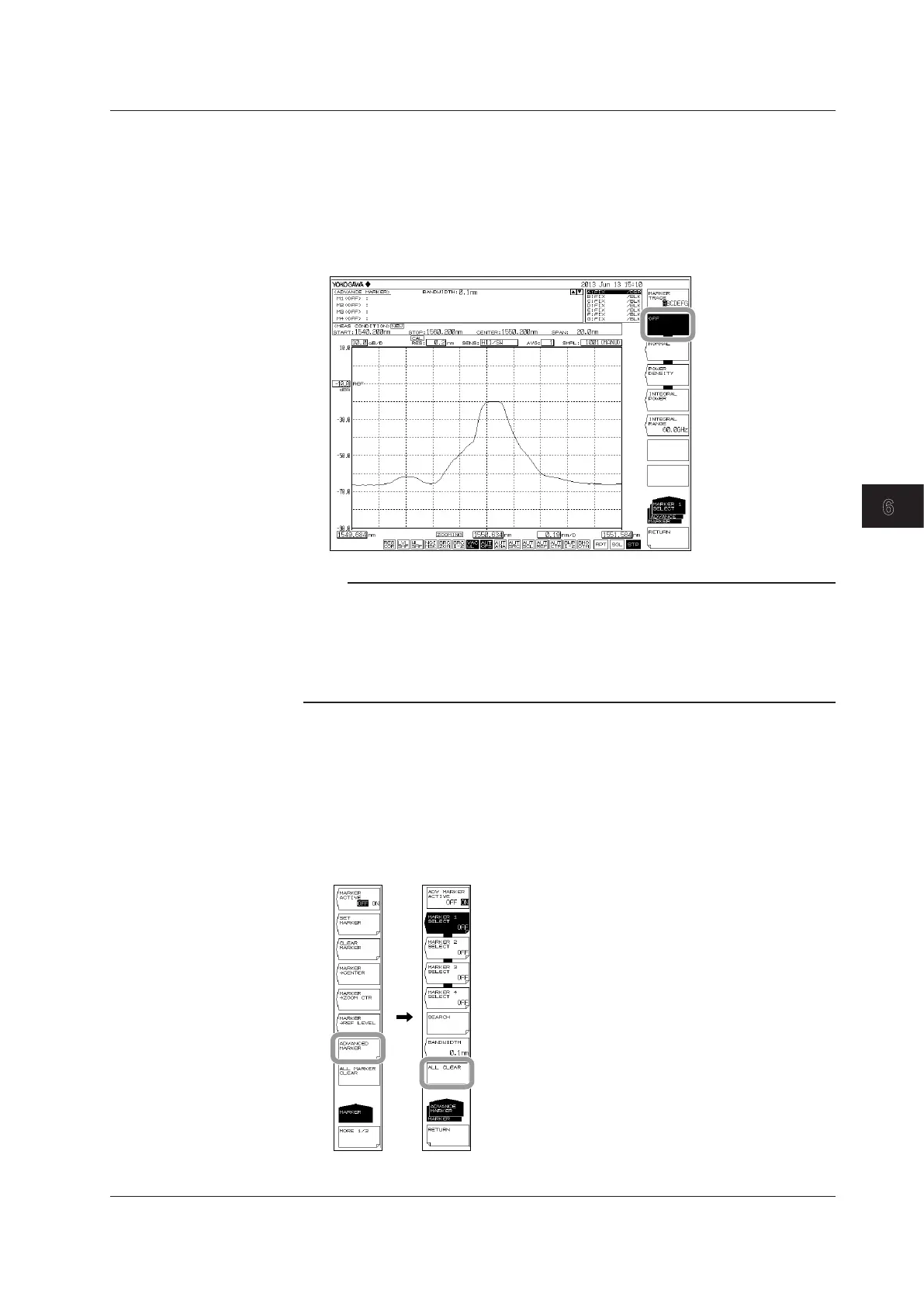

When the advanced marker is displayed at the peak or bottom of the waveform,
press the NEXT SEARCH LEFT soft key. The advanced marker is set to the next
peak (local maximum value) or bottom (local minimum value) on the left.
Turning Off the Advanced Marker Display
Press the OFF soft key.
Note
The advanced marker display automatically turns off if you perform any of the following
operations.
• Execute auto measurement (section 5.1)
• Clear all traces (section 6.11)
• Change the vertical axis settings (section 5.2) and execute a measurement (section 5.13)
• Change the number of samples (section 5.8) and execute a measurement (section 5.13)
Clearing All Advanced Markers
1.
Press MARKER. A soft key menu for marker settings appears.
2.
Press the ADVANCE MARKER soft key.
A soft key menu for advanced marker settings appears.
3.
Press the ALL CLEAR soft key. All displayed advanced markers (moving
markers, power density markers, and integrated power markers) are cleared.
6.9 Marker Display
