6-38
IM AQ6370D-01EN
Explanation
Markers
Moving Markers
Line markers can be moved to an arbitrary wavelength using the rotary knob, arrow keys,
or numeric key pad. You can also drag the markers with the mouse.
Moving markers can be moved over a waveform to display the marker value in the data
area. If a moving marker is fixed in an arbitrary position, a fixed marker is displayed.
Fixed Markers
Fixed markers are markers fixed to number to which a moving marker was specified. A
maximum of 1024 fixed markers can be set. In addition, fixed markers can be set across
different traces.
Fixed markers are assigned marker numbers in order starting from 001. You can enter an
arbitrary number using the rotary knob, arrow keys, or numeric key pad. A number up to
1024 can be set.

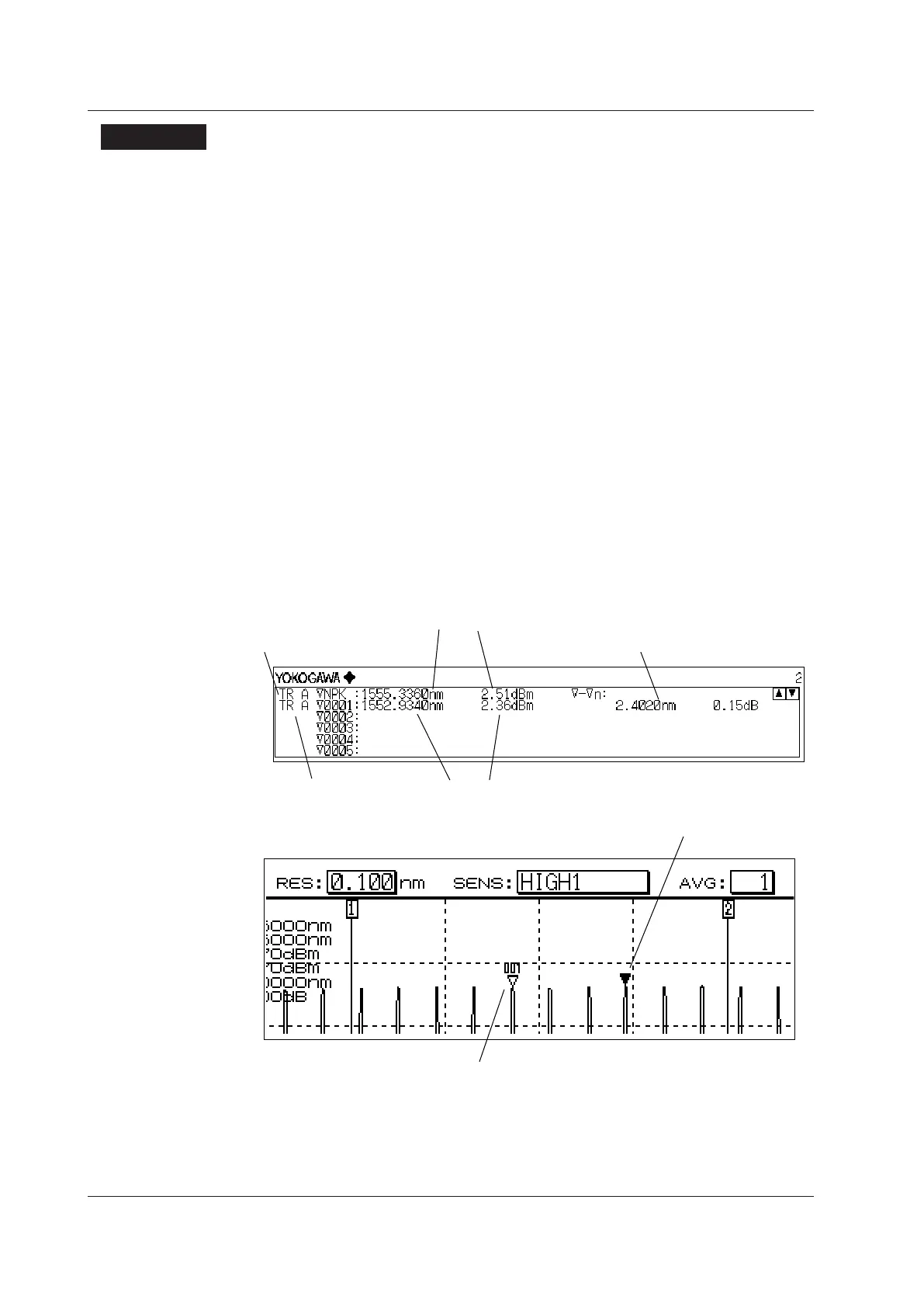

Marker Data in the Data Area
Marker values (wavelength values and level values) for the displayed moving and fixed
markers are shown in the data area.
If there are five or more fixed markers, they cannot all be displayed in the data area. To
view the values of markers that are not displayed, scroll through the display using the
arrow keys. You can scroll when moving markers are ON and active.
Moving marker value - fixed marker value
Wavelength and level values at moving marker
Wavelength and level values of fixed marker 1
Trace with fixed marker 1
Trace with moving marker
(Active trace)
Moving marker
Number displayed on fixed marker
6.9 Marker Display
To Next Page
