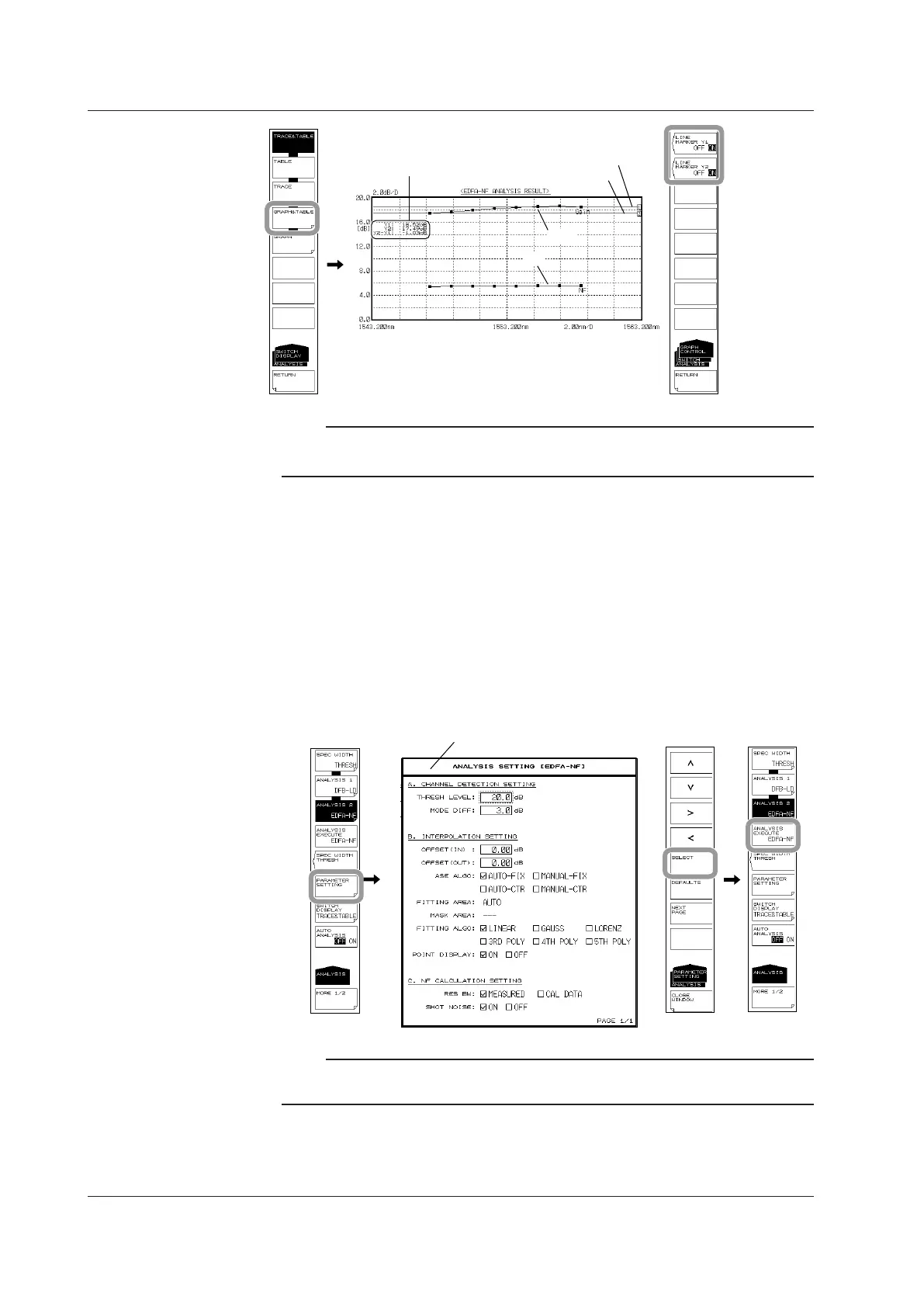

7-20
IM AQ6370D-01EN
Marker Y1
Marker Y2
Marker information
Gain
NF
Note
If both markers Y1 and Y2 are turned on, the difference between the markers are displayed in
the marker information.
When changing the analysis parameters
4.
Continuing on from step 3, press the PARAMETER SETTING soft key. The
EDFA-NF analysis parameter setting screen is displayed.
5.
Move the cursor with the arrow keys or soft keys, and enter a setting value with
the numeric key pad. To select a check box, align the cursor then press the
SELECT soft key.
6.
Press the CLOSE WINDOW soft key. The EDFA-NF analysis parameter setting
screen closes, and the soft key menu returns to the previous stage.
7.
Press the ANALYSIS EXECUTE soft key. Analysis is performed according to the
changed parameters, and the results are displayed in a list.
Analysis parameter setting screen
Note
See appendix 5, “Optical Amp Analysis Function” for a description of the optical amp analysis
algorithms and parameters.
7.8 Optical Amp Gain and NF Measurement
