YOKOGAWA AQ6370D User Manual

7-33
IM AQ6370D-01EN
Analysis
1
2
3
4
5
6
7
8
9
10
11
App
Index

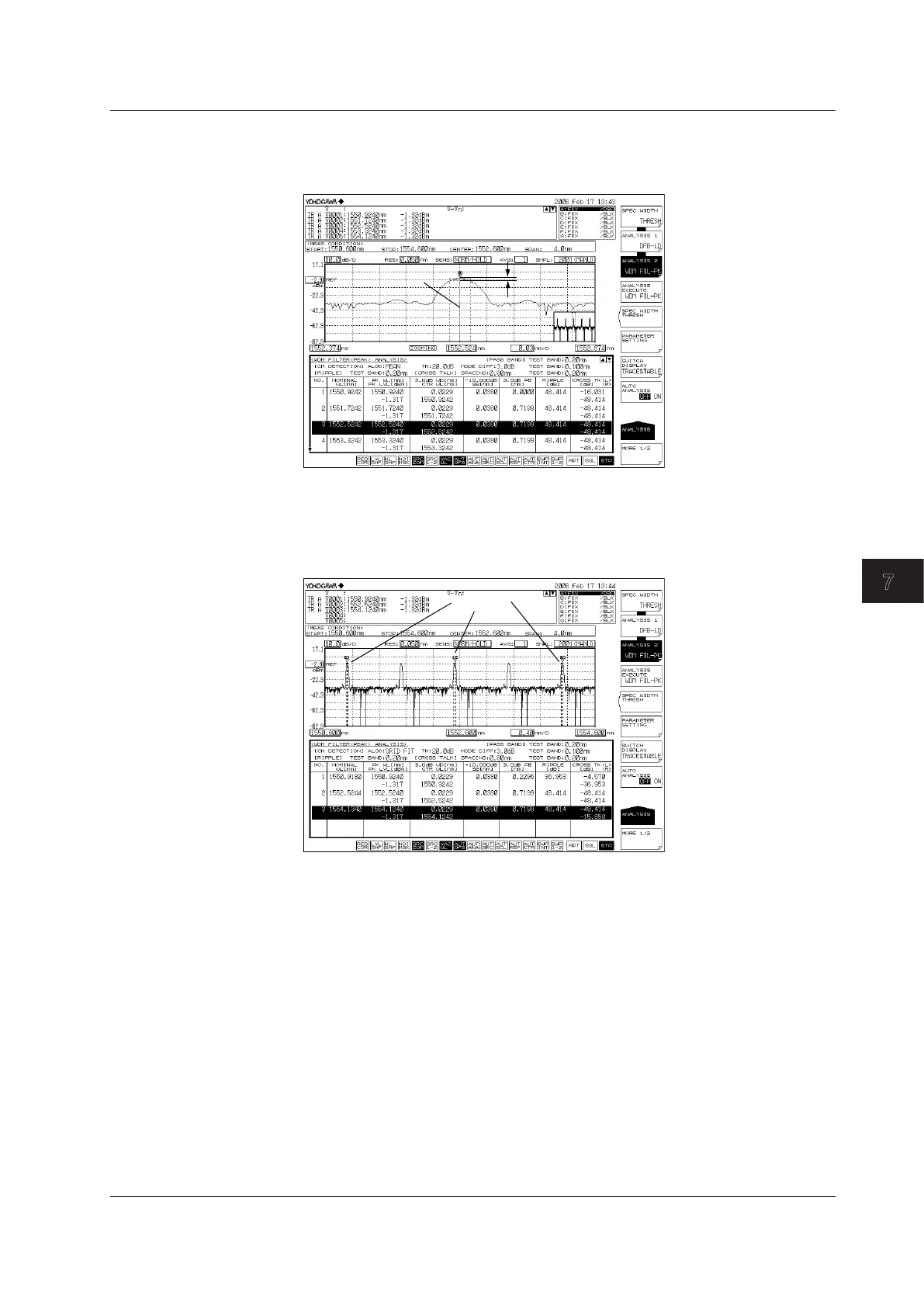

• When MEAN is selected
Each mode peak is detected as a channel.
The 3dB center wavelength of each channel is the reference wavelength.
MEAN WL
3 dB
• When GRID FIT is selected
The mode peak detected within GRID WL [PLUSMINUS SYMBOL] (TEST BAND/2) is
set as the channel.
The GRID wavelength nearest to each channel is the reference wavelength.
GRID WL
7.9 Optical Filter Characteristics Measurement
